Need the distance from the edge to the tongue

A quick learner from Nevada says:
What is the distance from the edge to the face of the tongue of the 26-177? Thanks for your help.
Profile picture of Paul Sr.
Paul Sr. from SWISCO responded:
I believe the measurement you are looking for is 1/8", but I threw in a few other measurements to be sure I covered what you were asking. Take a look at the included picture. Let me know if you have any further questions.

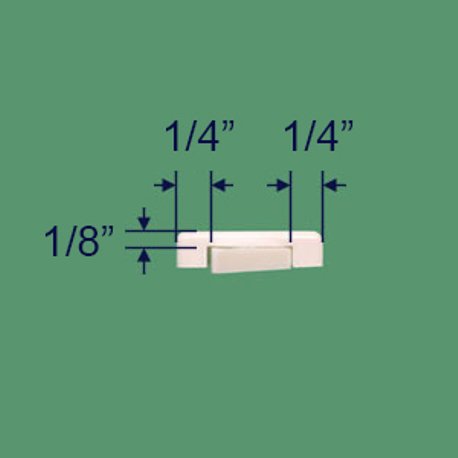

Profile of the 26-177 top tilt latch with additional measurements.
