Need this crank to accommodate stud shoe.

Question

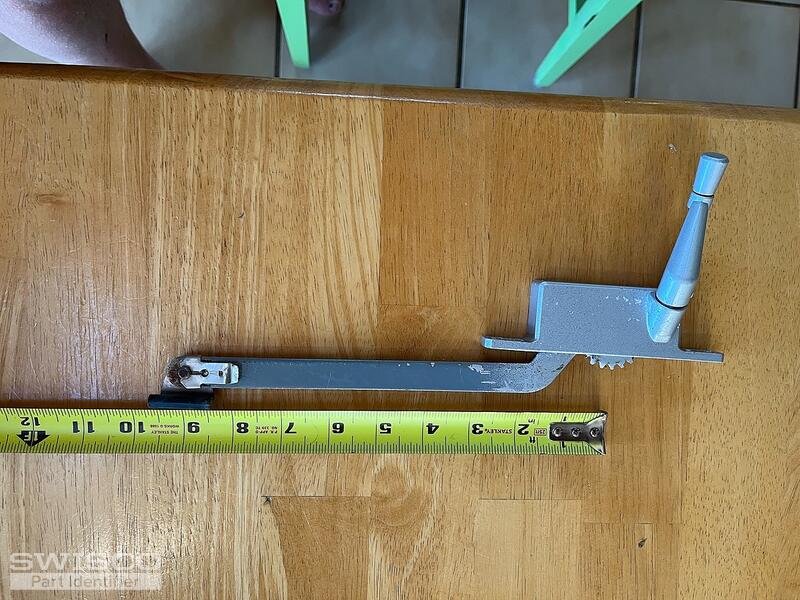

I need to replace a worn out crank that appears identical to this one, but need a stud shoe and clip for my track. Do you carry such an operator?

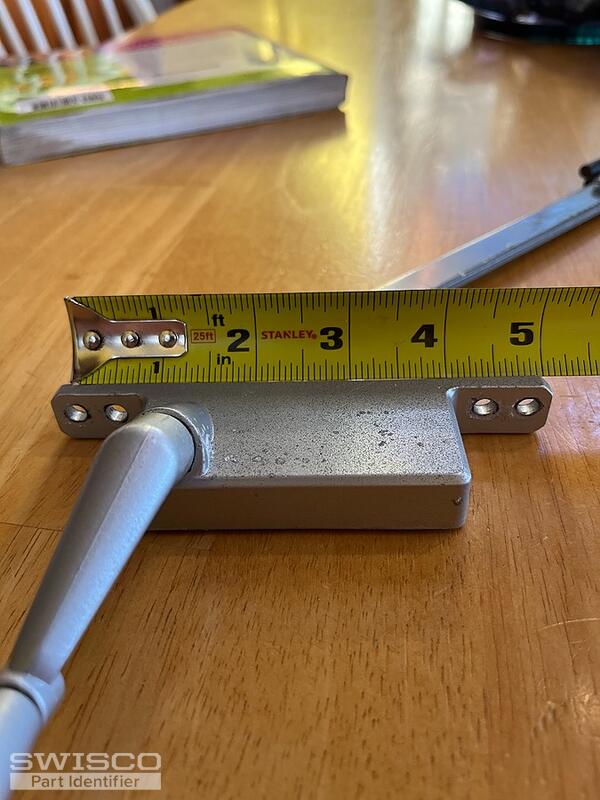

All measurements are identical, as demonstrated.

Tom · Accepted Answer

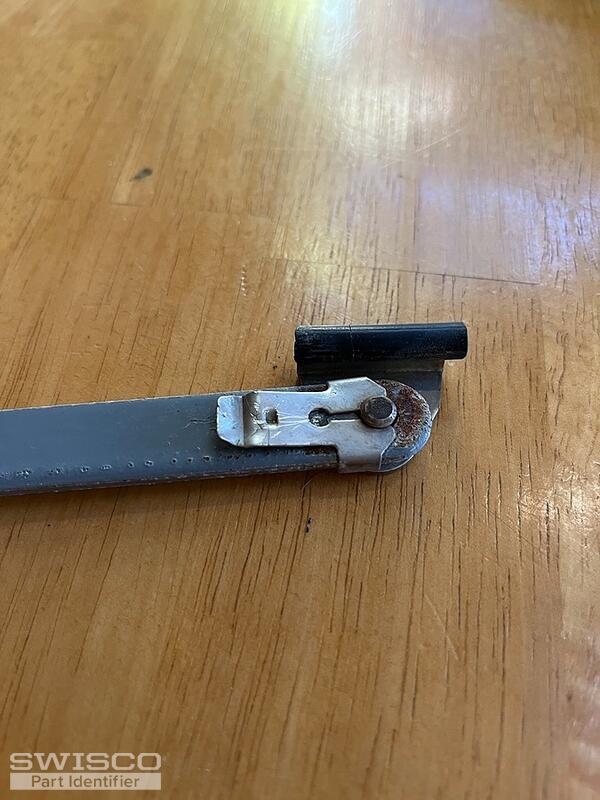

I'm sorry to say that we don't sell anything like this. I've honestly never seen a configuration like this before. I would bet that this operator was the same as our 39-001 originally, but that the installers custom-fit something like our 36-078 to the end of the arm so that it would work in the window.

That is an educated guess, of course, but it looks right to me. I just don't think that would be an easy thing to replicate. The biggest issue is that we don't sell a detach clip that will fit over the 39-001 arm. If you could re-use the old detach clips then you could theoretically drill out the disc on the 39-001 and use our 36-078 in its place.

I've never done that before, though, so I cannot tell you how well it would work out. Please also understand that you would not be able to return any hardware altered in that way for a refund. In other words, it may be worth a shot but it's going to be a gamble either way.
