Need to Repair Bow Casement Window

Hello,

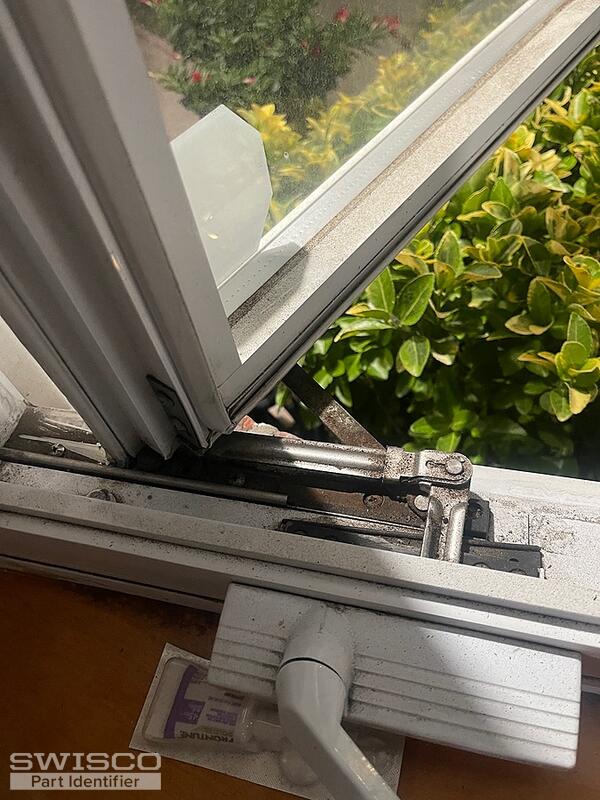

Your window operator is an older, discontinued version of the 39-091 ROTO Casement Operator. The opposite handed version is the 39-092. These use the 39-557 Roto Spacer. The hinges can likely be replaced with the 36-031 Pivot Hinge Set.

Keep in mind, you will need to reuse the link arm that connects the operator to the window. This isn't something we can supply, unfortunately. The compatible handles are tagged below.

The specifications for all of these parts can be found on the website.

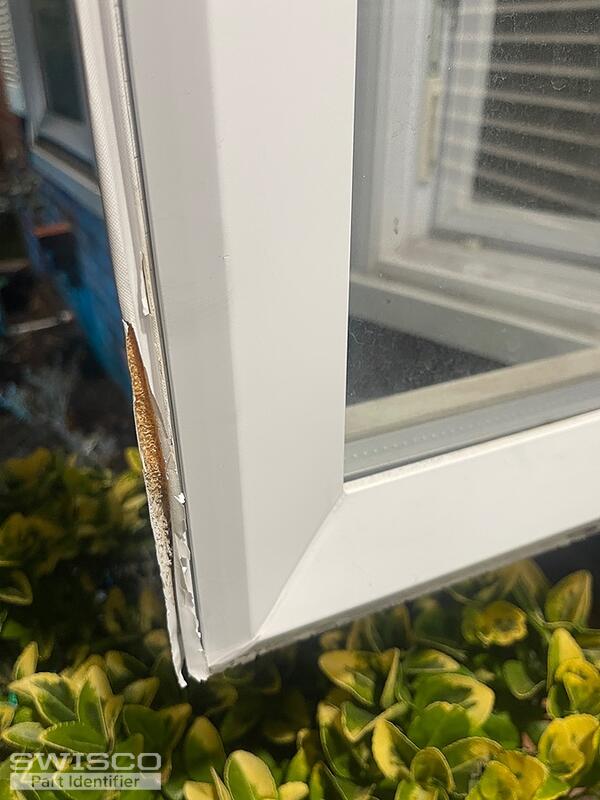

Regarding the weatherstripping. I'll need to see the end profile of an undamaged piece to determine the correct match. Take a look at the video tutorial below for reference.

Dimensions for 39-091
