Need to buy replacement channel balancer

Handy Person from California

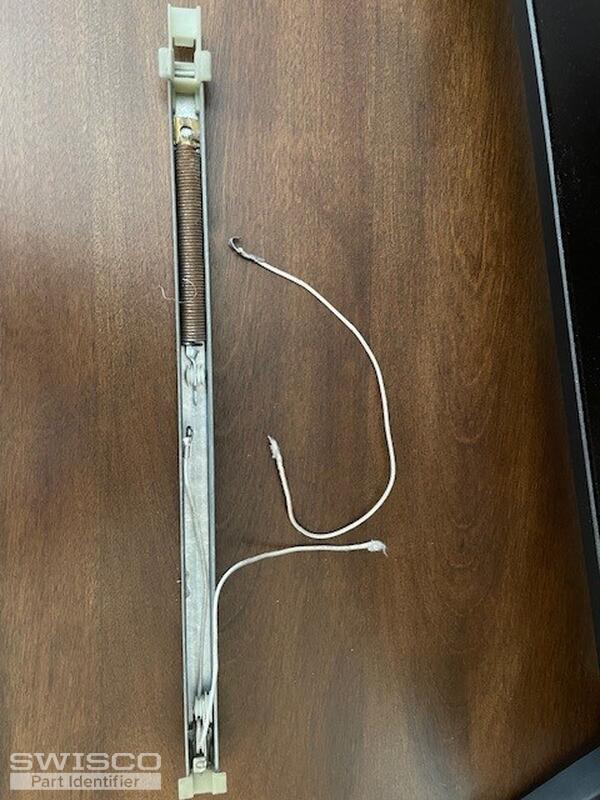

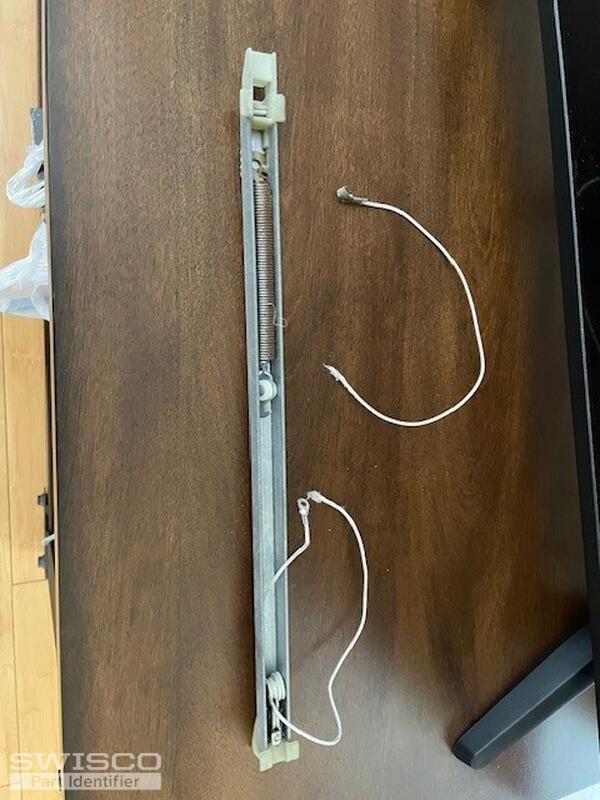

The balancer has a 13 2 JP CALDWELL  on it.  See attached photo.
Please let me know the replacement model to buy.  Thanks

5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for your post! I'm confident we can provide you with the replacement balances you need. May I see a photo of the spring side of the channel? Particularly the bracket that connects the spring and the string in the middle of the channel.

Please don't hesitate to reach out with any other questions you might have.

Handy Person from California

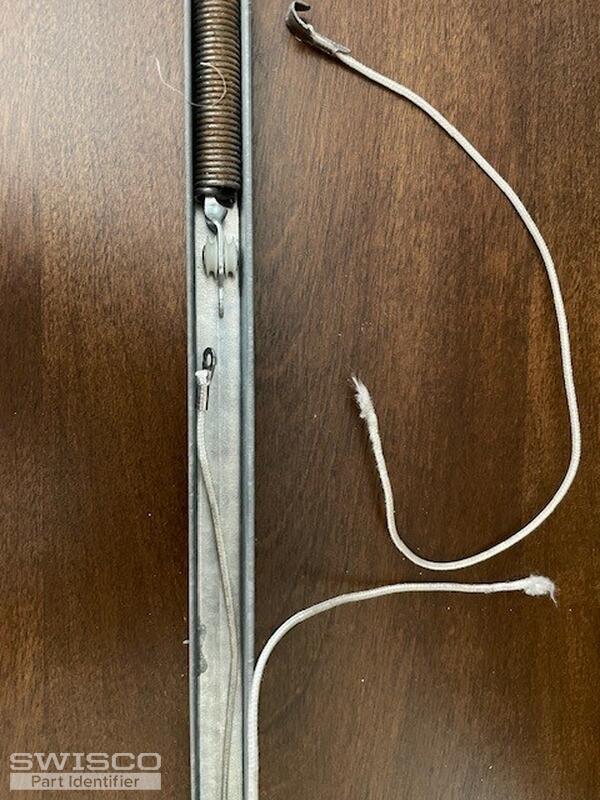

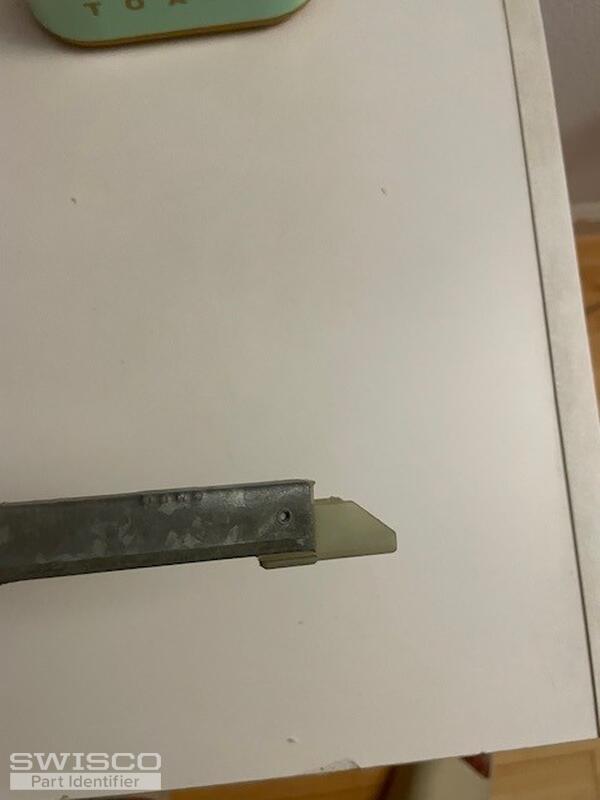

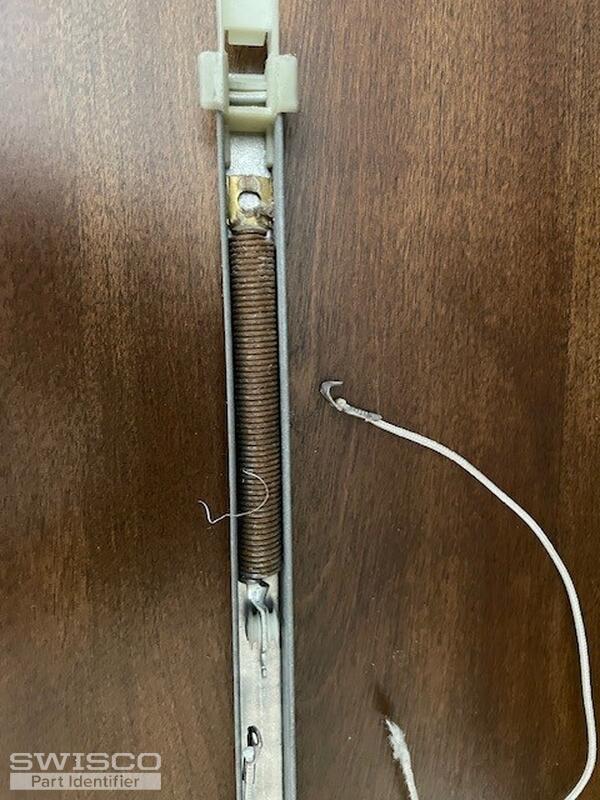

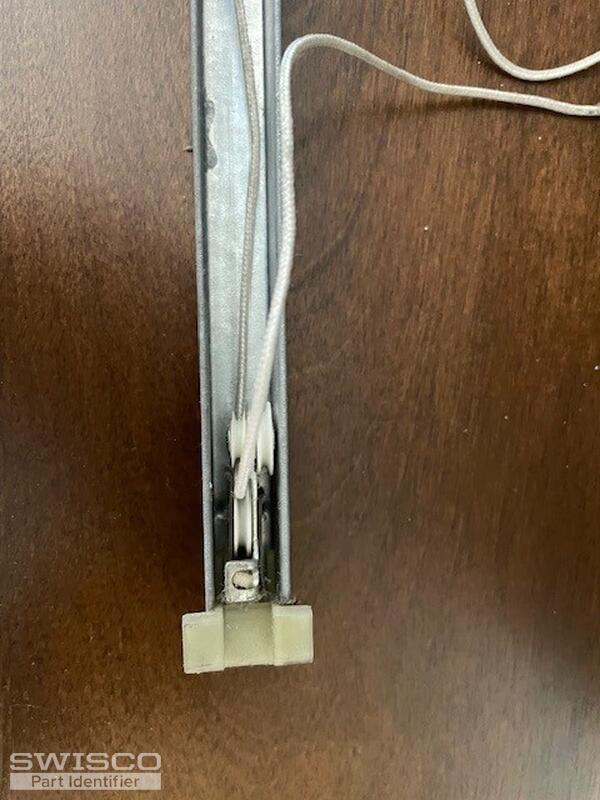

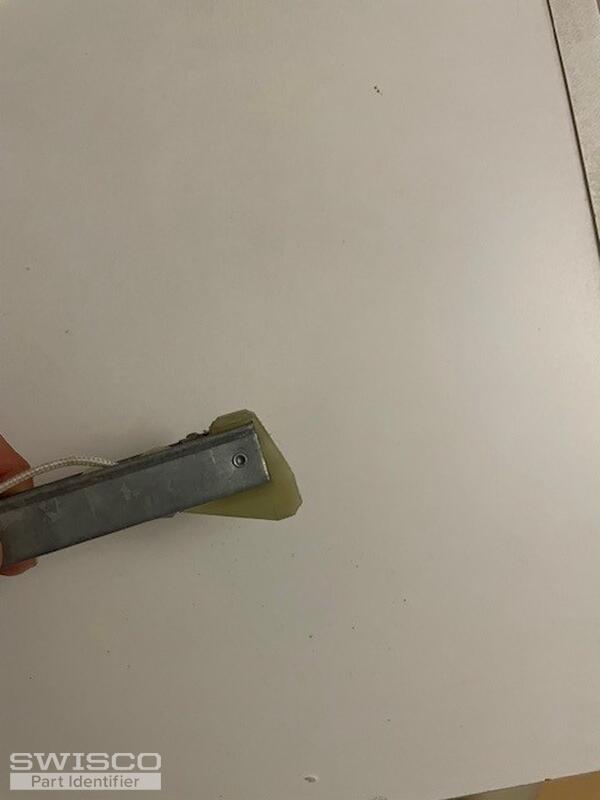

here is more photo to show what you need.  let me know if they are good enough.
Thanks
5 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the requested photos. These balances can be replaced with either the S380-14 or the S385-14. To confirm which of these is the correct replacement, you'll need to confirm the depth of the shoe.

The 1320 should work in place of your stamp but it would be a good idea to double check that the sash weight falls between 6 to 9lbs.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
