Need to find right part

Quick Learner from Bothell, WA

Sep 5, 2021 2:04 pm

The code on my channel is "26-4 LE5 CMC 75". The length of the channel is 27 inches.

Can you please share the right part number that I should be ordering.

Thanks.

1 user uploaded image

4 Replies

Emily from SWISCO

Sep 10, 2021 1:18 pm

Hi there!

Thank you for your patience during this busy season. We'd be happy to help, but we'll need to see some pictures of your top and bottom fittings. Take a look at the video below, it'll go over exactly what we'll need to see in order to identify your channel balance.

Quick Learner from Bothell, WA

Sep 10, 2021 6:15 pm

Hi,

Thank you for your reply.

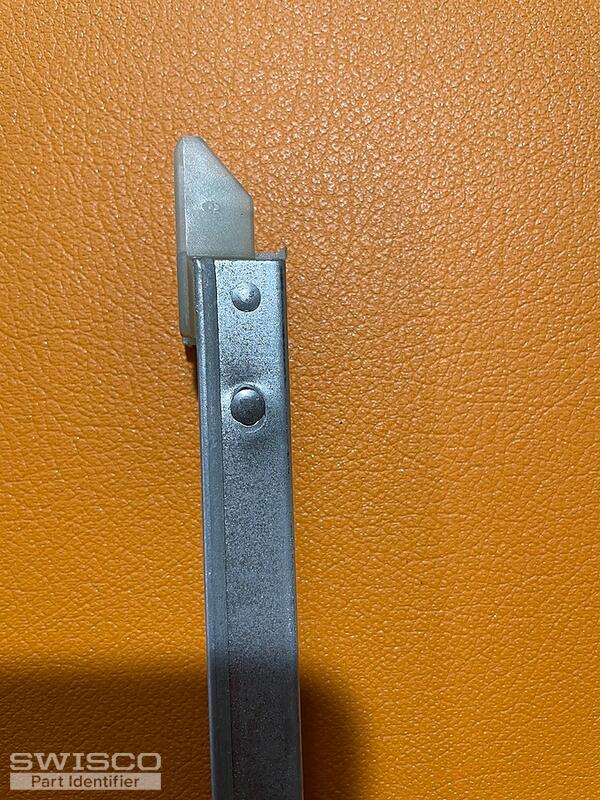

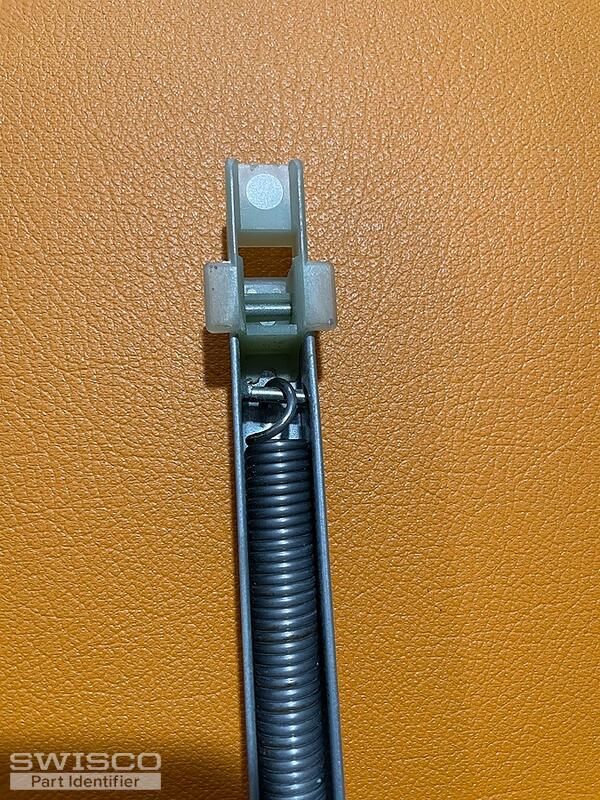

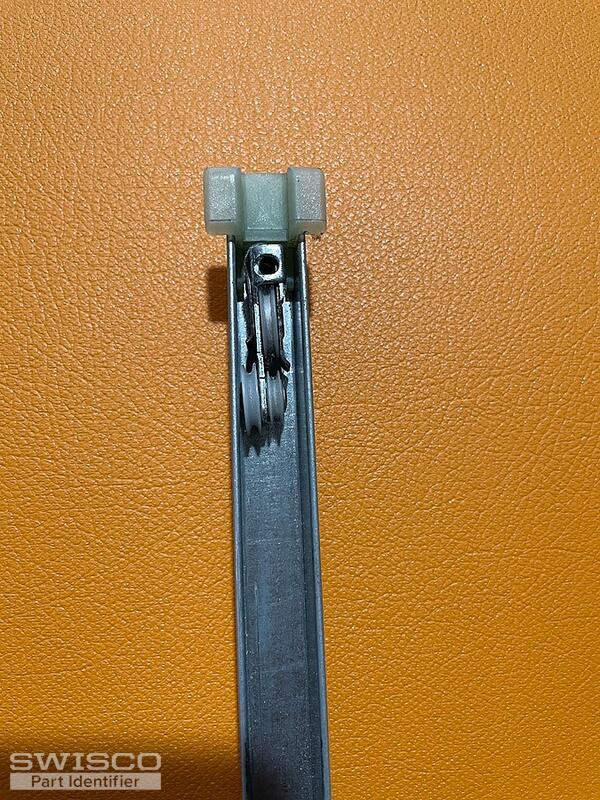

Attached are the photos of both the ends as well as cord and hook, that's the part broken and need a replacement because of that.

5 user uploaded images

Emily from SWISCO

Sep 13, 2021 9:35 am

Thank you for the additional pictures! This is a huge help.

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2640.

If you have any further questions just let us know!

Comparison of the S378, S380 and S385 balance shoes.
