Need to identify
Quick Learner from Palm Bay, FL
Apr 20, 2022 10:09 am

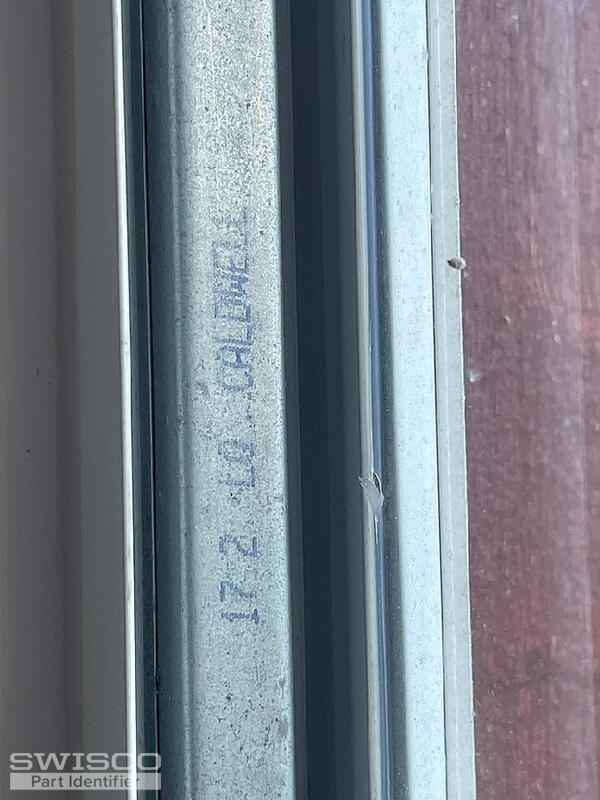

Can you please tell me what this part is based on the printing.
1 user uploaded image
4 Replies
Tom from SWISCO
Apr 21, 2022 1:49 pm
I'm not sure what you have, unfortunately. We have dozens of different balances with that stamp. It's not a product code or anything, it just indicates the strength of the spring.
In order to figure out what Series this is, I need you to remove an undamaged version of this balance from the window and show me clear pictures of the top and bottom nylon fittings. I will also need to know the dimensions of these fittings.
Quick Learner from Palm Bay, FL
Apr 27, 2022 8:50 am
Good morning.

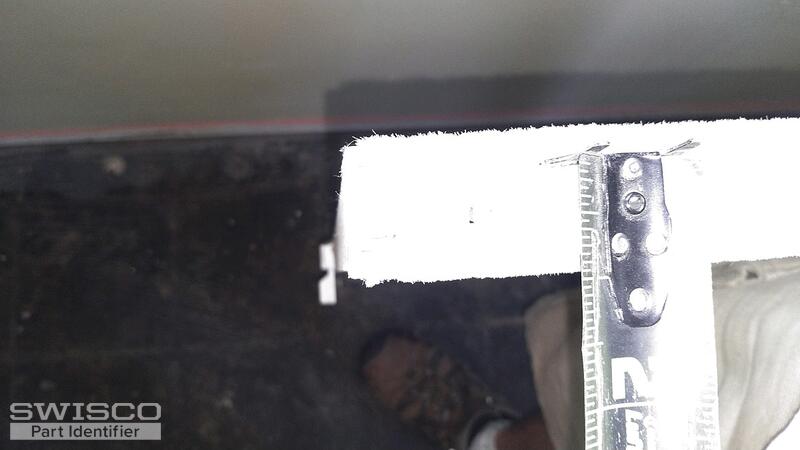

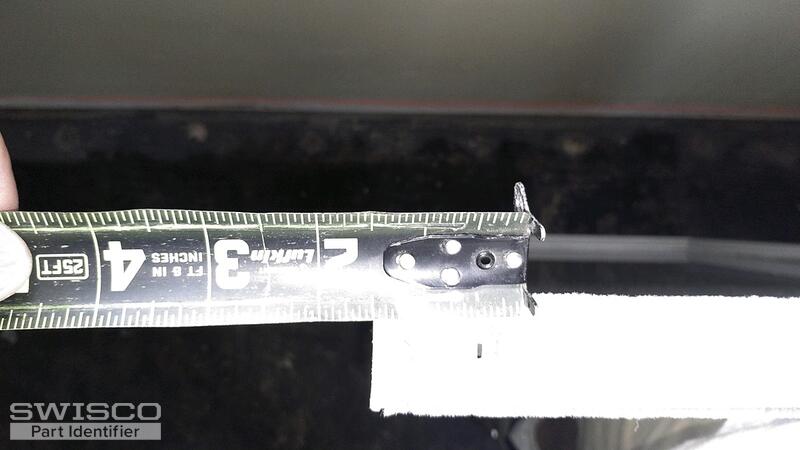

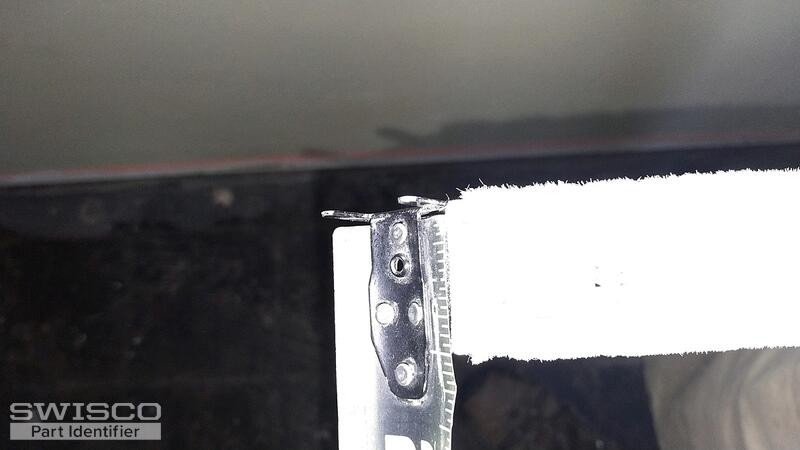

I am attaching photos, some not so great, of measurements.
Is this a part we can order?
Unfortunately there is not a manufacturer listed on the window.
I am attaching photos, some not so great, of measurements.
Is this a part we can order?
Unfortunately there is not a manufacturer listed on the window.
4 user uploaded images
Tom from SWISCO
Apr 27, 2022 1:10 pm

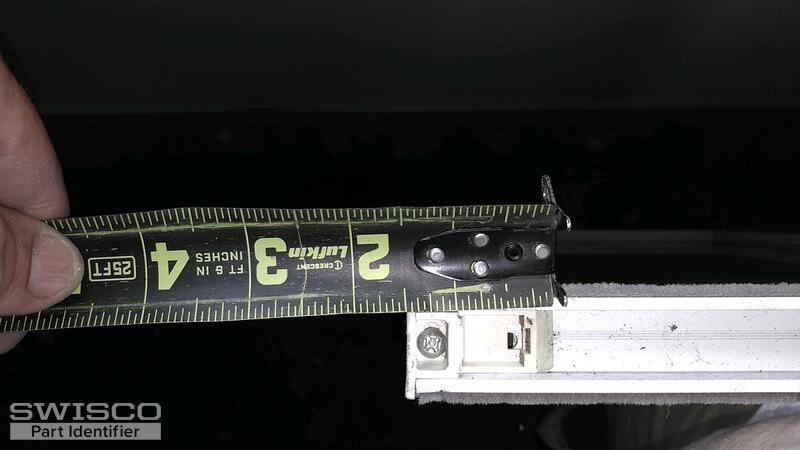

The part you're showing me here is the top sash guide, though I cannot make out what your precise dimensions are.
One possible match is our 18-009, though this is just an educated guess. You can review our dimensions below to see if they line up.
Detail of 18-009
Side view of 18-009
