What Coil Balance do I need for my Simonton Window?

A quick learner from Michigan says:
January 6, 2020

Per the subject line please identify what coil spring I need for a Simonton single hung window made in 2005 each side has a triple coil setup.

I already did order the

"6.5 lbs Series 160 Coil Balance" but I have a feeling it might not be the correct one.

One other piece of info the width of the spring coil is 0.4"Thank you.

Thumbnail of the uploaded file named 20200106_174156.jpg
Thumbnail of the uploaded file named 20200106_174201.jpg
Thumbnail of the uploaded file named 20200106_174208.jpg

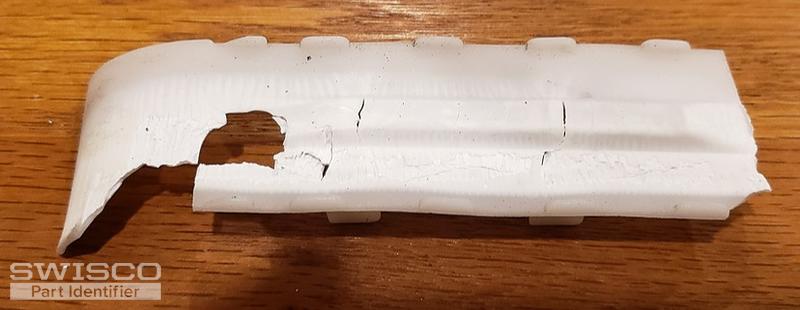

Thumbnail of the uploaded file named 20200106_174255.jpg

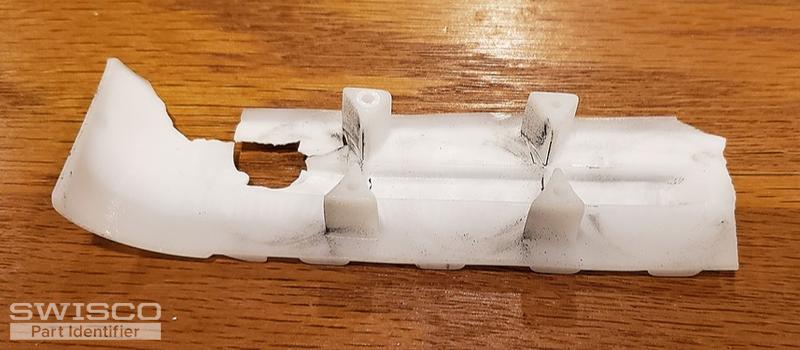

Thumbnail of the uploaded file named 20200106_174259.jpg
Profile picture of Bob
Bob from SWISCO responded:
January 7, 2020

Thanks for posting. The Series 160 Coil Balances are 1/2" wide, while the Series 165 are 3/8" wide. It sounds like you might have the Series 165, but double-check the width of your old coil tape to be sure. Now, it looks like you have the #4 stamped on your balances, in which case you'd need either the S160-4 or S165-4. But if you're uncertain about the exact spring weights you need, give us the exact weight of the window sash, and we'll work out what you require. Many thanks.
4.5 lbs Series 160 Coil Balance
4.5 lbs Series 160 Coil Balance
S160-04
$4.50
4 lb Series 165 Egress Coil Balance
4 lb Series 165 Egress Coil Balance
S165-4
$4.70
