Need to know where to get these for pella window

Quick Learner
Jun 3, 2023 5:01 pm

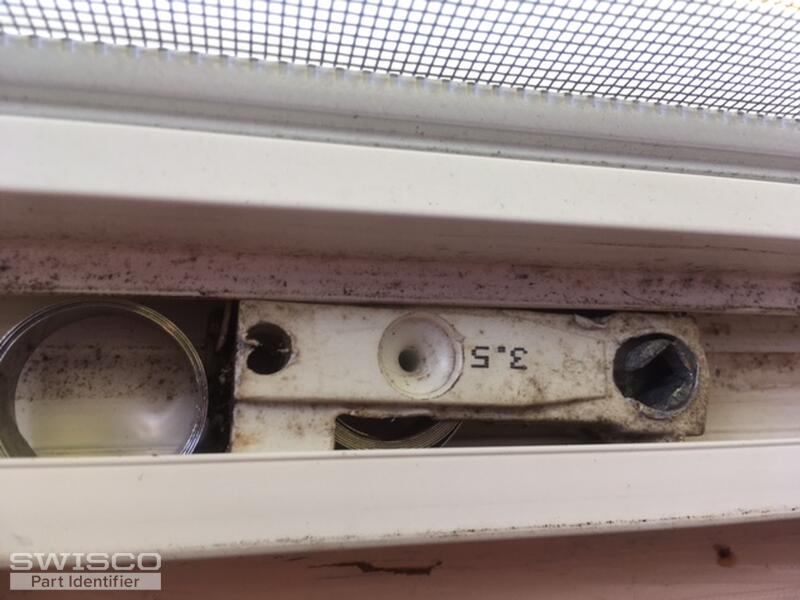

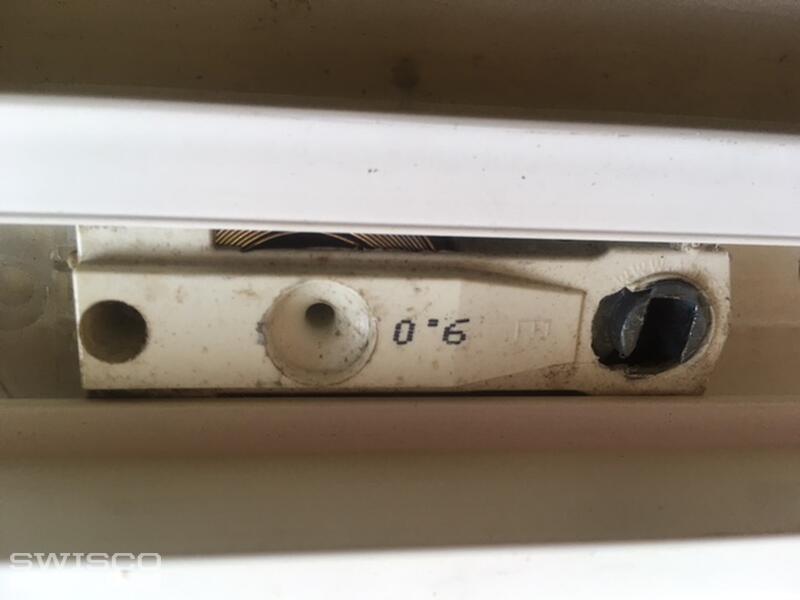

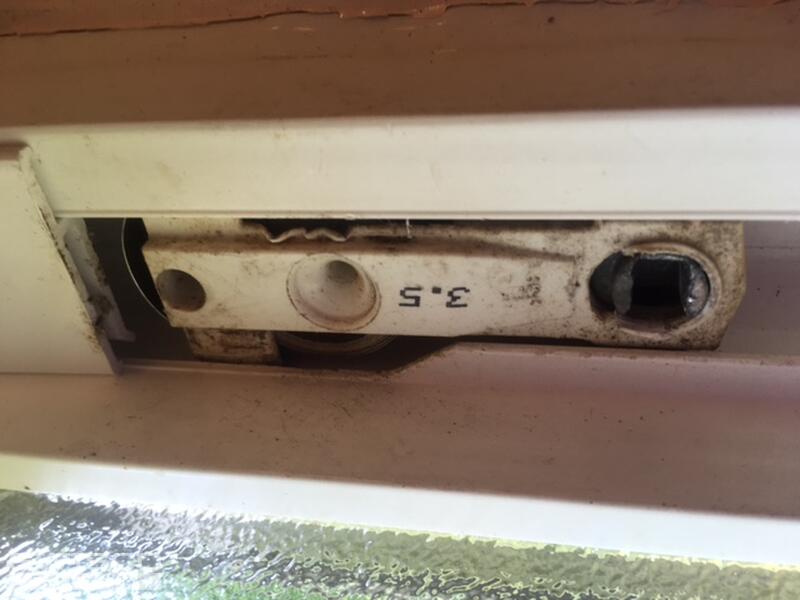

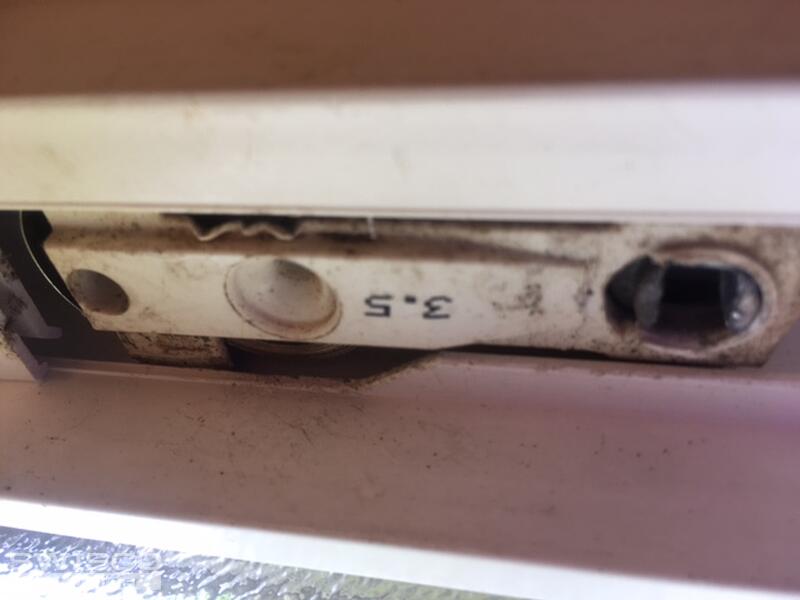

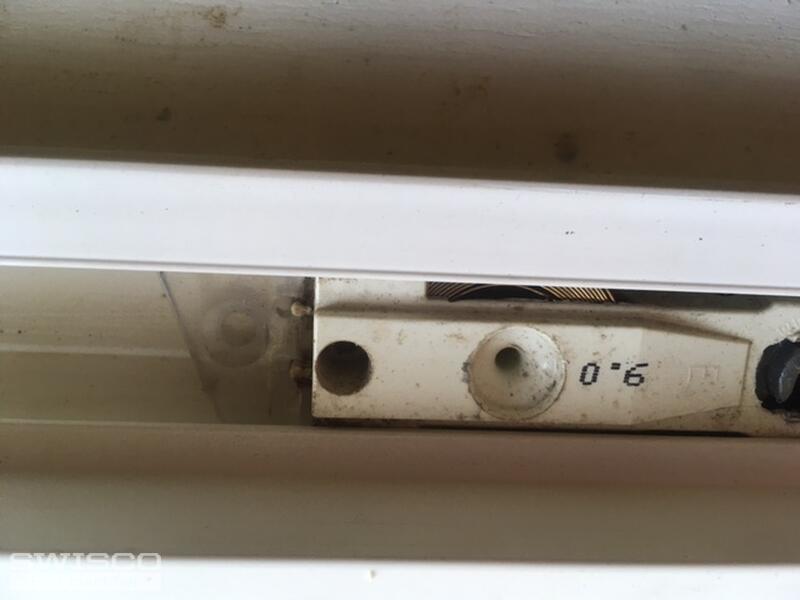

Need to know where to get these or a replacement for them these are pella windows
bathroom bathroom 2 bathroom 4 front room front room 2
5 user uploaded images
4 Replies
Quick Learner from WV
Jun 3, 2023 6:45 pm
I would like to convert these latches to a more simple type if any way possible any suggestions will be appreciated Thank you
Casey
Casey from SWISCO
Jun 6, 2023 10:15 am
SWISCO
EXPERT

Hello,

I can't be positive with your hardware still installed but it reminds me of the 15-251 single support, which will hold one S160 coil spring. I would recommend removing your assembly to compare to the specifications below. Unfortunately, there is not a different type of coil balance that we would recommend to replace your hardware. In our experience, using exact replacements is the best way to keep your windows functioning properly.  Thanks for posting!

Measurements of 15-251
Measurements of 15-251

Quick Learner from WV
Jun 6, 2023 5:37 pm

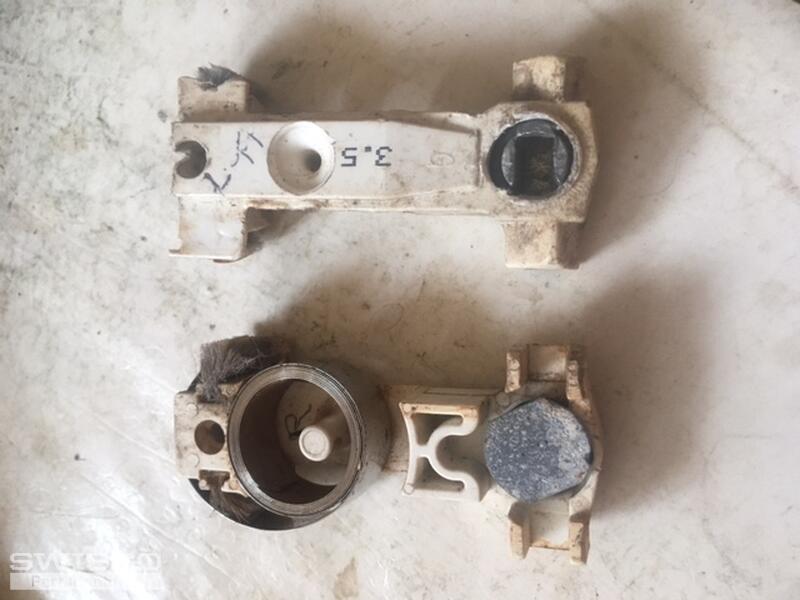

Looks like mine is top 5/8 side is 2 3/4 bottom 1 1/4 what do i need

trailer bathroom
1 user uploaded images
Casey
Casey from SWISCO
Jun 7, 2023 2:36 pm
SWISCO
EXPERT

The length should not be an issue since there is plenty of space in the window track to compensate for the difference. As long as the width and thickness match your part, you should be good to go. You are also welcome to review our return policy here if you have any concerns.
