Need to order 2 of these. Photos included for identification.

Start a new Discussion

Home Owner from Hemet, California

Jun 20, 2021 10:20 pm

The length of the metal channel is: 27 15/16th inches.

The rail is marked: 27 3 FS CALDWELL

If you have any questions, please let me know.

Thank you!

Ted

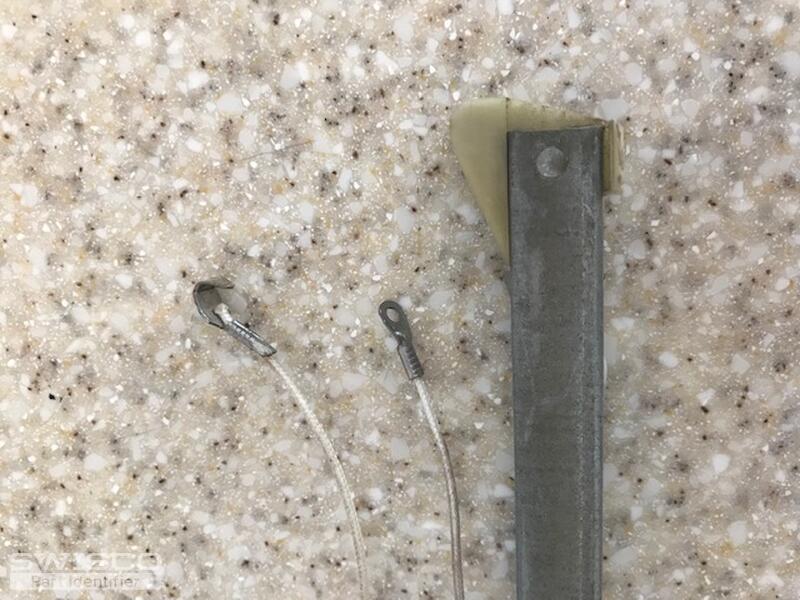

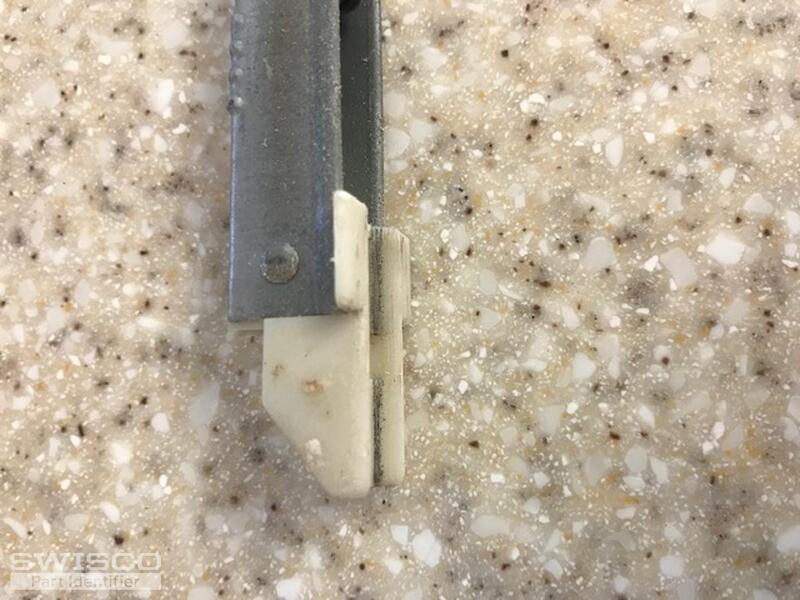

5 user uploaded images

5 Replies

Home Owner from Hemet, California

Jun 20, 2021 10:32 pm

Forgot to add that the width of my channel balances are 1/2".

Emily from SWISCO

Jun 23, 2021 1:35 pm

Hi, Ted.

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2730.

When measuring your balance, make sure to only include the metal channel in your measurement. Your stamp is 2730 which would mean the length of your metal channel should be 28 inches.

If you have any further questions just let us know.

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from Hemet, California

Jun 23, 2021 5:49 pm

Thanks so much Emily!

I just ordered 2 of part number S385. Our windows have new double pane glass in them, so the weight more than the original OEM window. So I ordered the channel balances with the 2740 weight option to handle the extra weight added to the original windows.

Thanks again for the fast help!

Cheers! Ted

Emily from SWISCO

Jun 24, 2021 9:00 am

No problem, Ted!

The spring strength you chose may not be enough. You might want to weigh your sash and refer to the chart on the S385's product page to be 100% sure. We have a return policy, too, which you can view here.
