Need to purchase correct channel balances

Home Owner from Santa Rosa, California

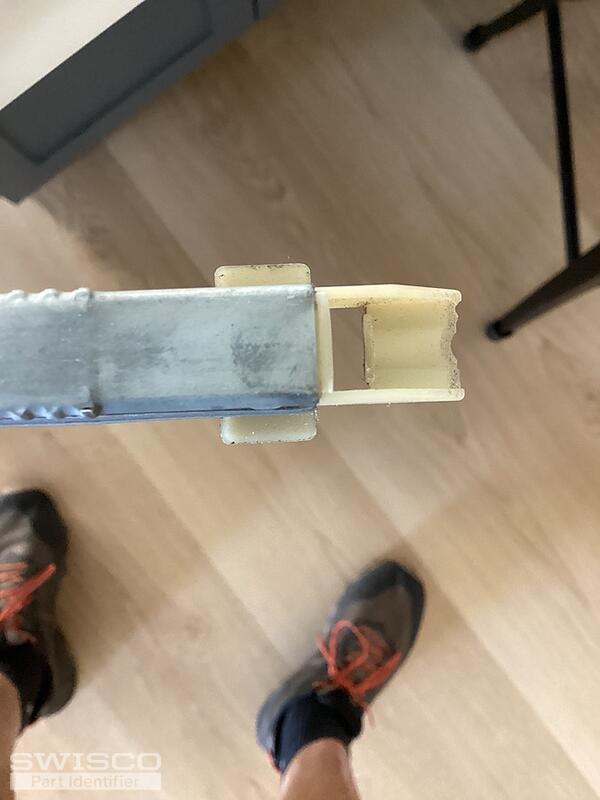

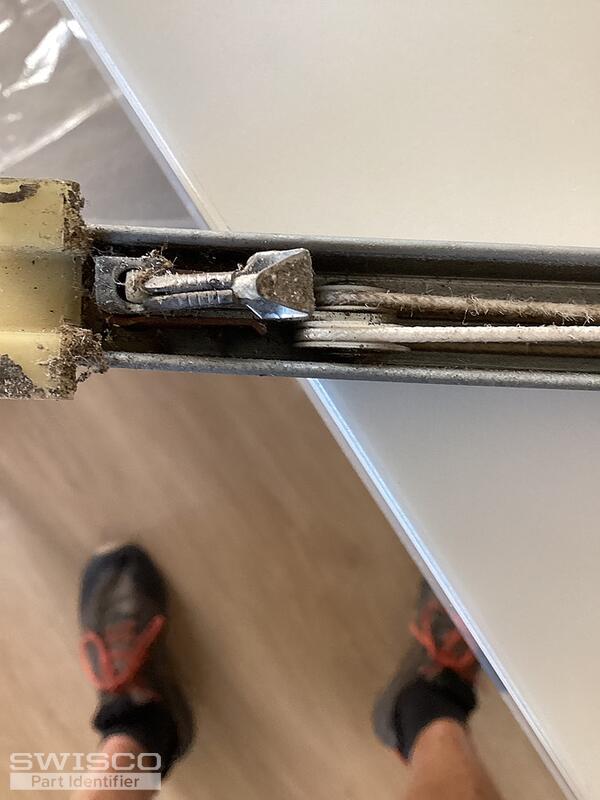

Home was built in the early 90s. They are 1/2 wide and 27" long.
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. This looks like either a Series 380 or Series 385 Channel Balance. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. See the diagram below for reference.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Next, you'll need to confirm the balance length. Be sure not to include the nylon fittings at both ends of the metal channel in this measurement. Finally, you'll need to choose a stamp option, which denotes the strength of the balance. Look for a stamp somewhere on the metal channel that indicates this. If there is none, or you're uncertain, just weigh the window sash the balances support.  You can then match that exact weight with one of the weight ranges listed alongside each stamp option on the balance shop pages.
