Need to replace balances

Start a new Discussion

Home Owner from Kapaa Hawaii 96746

Aug 10, 2020 4:57 pm

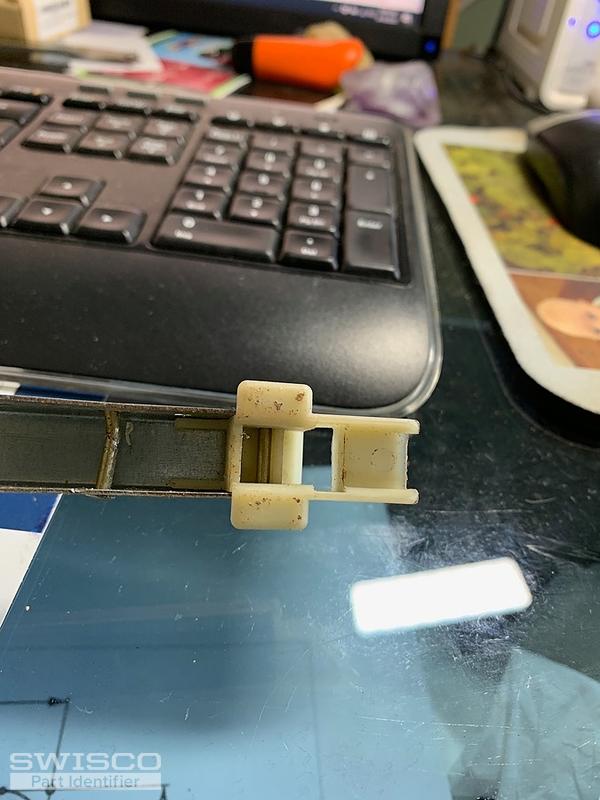

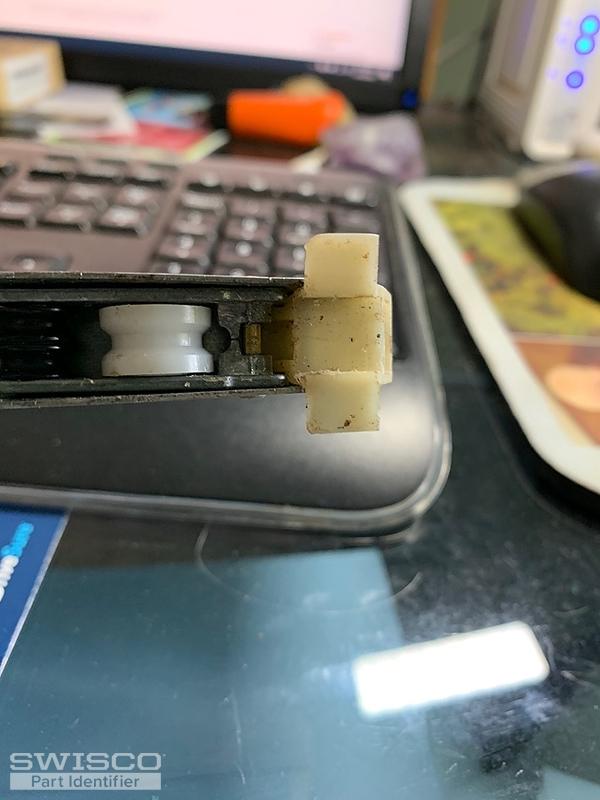

27 inch long

I see 26 4 BSI OD stamped on it.

this is for a 43 in wide window. very heavy.

i would like 6 please.

Richard

5 user uploaded images

3 Replies

Casey from SWISCO

Aug 13, 2020 2:34 pm

Hello,

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2640 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from Kapaa Hawaii 96746

Aug 13, 2020 8:17 pm

Okay thanks I have the 1 inch ones so I will order the S380 with the 2640 spring.

Thanks again

Rich
