Need to replace broken patio door handle

Quick Learner from Perinton, New York

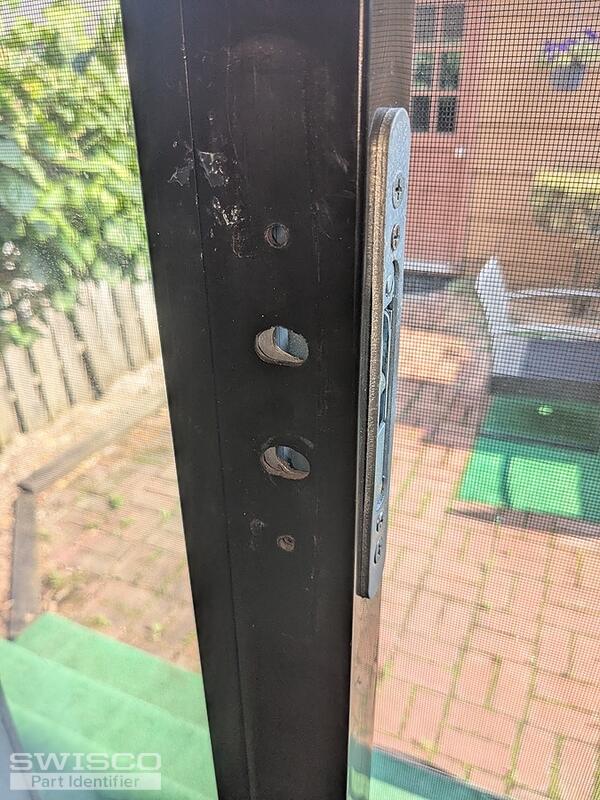

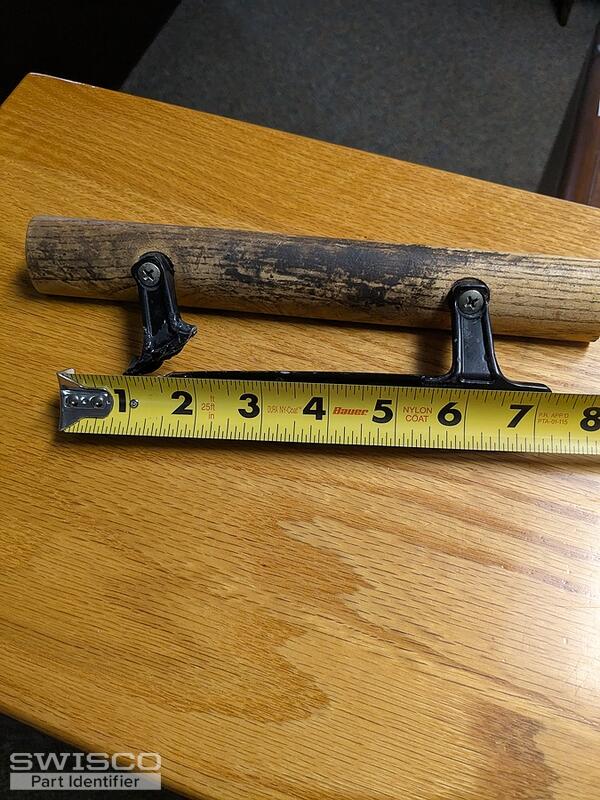

Hello and thank you for your help! I have a broken patio sliding glass door handle to replace. Maybe need to replace handle and locking mechanism? The door is about 30 years old in good condition except for the worn/broken handle. We could not find any model names or numbers on the door. The door was originally purchased at Rochester Colonial Windows and Doors.  Do the pictures provide enough information for you to suggest a replacement? This is a rental property of mine and the pictures were taken by a handyman from the property management company.  I can request more information if you need. I've purchased all of the window repair and replacement balances from Swisco for this property. After almost 15 years all is working great.
5 user uploaded images
2 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hey there!

Thank you for reaching out to us. Your old handle is no longer available, but we have a few options to consider. Take a look at the 82-020, 82-033, and 82-030, which measure 3-15/16" on the installation hole centers. As for the lock, see the 82-226. Review the specifications for these parts and see how they compare with your old hardware.

Measurements of 82-020
Measurements of 82-020

Alternate image for 82-033
Alternate image for 82-033

Hole center dimensions for 82-030
Hole center dimensions for 82-030

Dimensions for 82-030
Dimensions for 82-030

Alternate image for 82-226
Alternate image for 82-226
