Need to replace entire spring, casing and foot

A home owner from New York says:
August 9, 2022
Hi.
I need to replace the entire spring/coil system on one window (case and foot as well) for both sides of the window. The weight of the sash is 16lbs.
Can you please let me know what parts I need to order.
Thank you,
Melissa
Thumbnail of the uploaded file named 69E32B12-1D05-4EA8-9EF7-C0EEC6F1FF00.jpeg
Thumbnail of the uploaded file named 219BEA4C-1953-42C0-85A3-22C1829E58EE.jpeg
Thumbnail of the uploaded file named 09A4F7A9-8300-4852-93E3-B2B1E745550E.jpeg

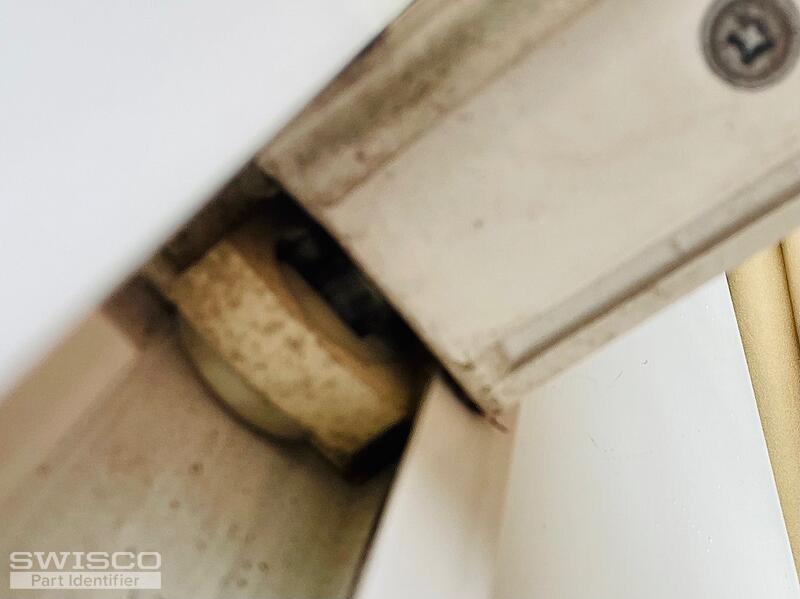

Thumbnail of the uploaded file named 73BC6CE3-CFEB-4D0E-9C88-AEBF6E0E3258.jpeg
Profile picture of Casey
Casey from SWISCO responded:
August 11, 2022

Hello,

Take a look at our 15-180 balance shoe, which is used with the Series 190 coil springs, and see how the dimensions compare to your existing hardware.

For a 16-pound sash, you would use one of the S190-840 springs on each side. Thanks for posting!
Coil Balance Shoe
Coil Balance Shoe
15-180
$3.97
840 S190 Coil Balance Spring
840 S190 Coil Balance Spring
S190-840
$11.32
