Need to replace shot SEMCO operators on crank windows
Home Owner from Southbury, CT
Aug 26, 2022 5:22 pm

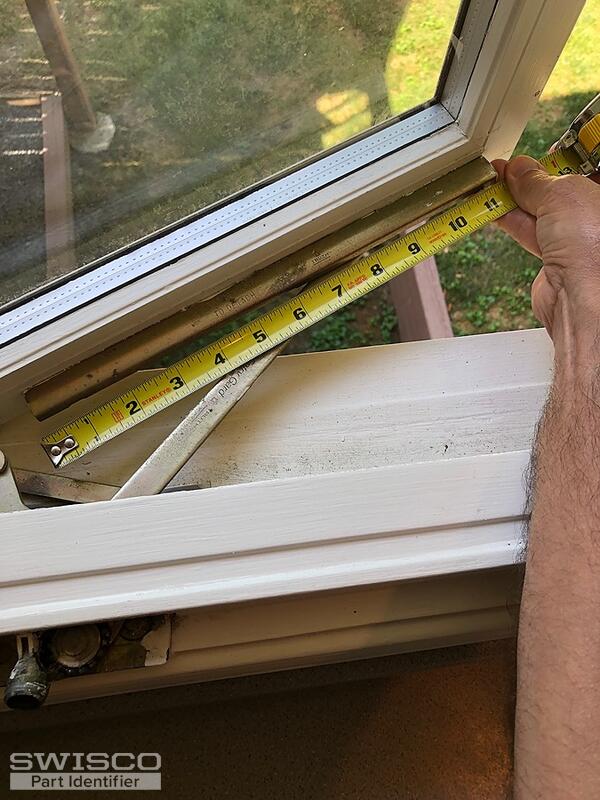

Don't have part numbers. Need to replace 3 shot SEMCO operators connected to "TRUTH - Entry Gard" hinges. Hinges look ok but operators no longer function. I've attached a few photos; SEMCO operators with cover on and off; view of operator connected to hinge; view showing length of slide bar (about 11 inches) connected to TRUTH - Entry Gard" hinge. Don't know manufacturer of windows (they are not Anderson windows). Please let me know if you have suitable replacement operators (need 3). Any questions please let me know. Thank you!
4 user uploaded images
4 Replies
Tom from SWISCO
Aug 30, 2022 1:38 pm
Hello! Your operators look like they match our 39-031 and 39-032. Review the dimensions below to ensure that everything lines up and let me know what you think.
One other thing to note is that operators do not physically connect to casement window hinges. These are two separate and distinct assemblies that work in close proximity, but are not otherwise attached.
Dimensions for 39-031
Home Owner from Southbury, CT
Sep 5, 2022 6:22 pm
Hi Tom,
Thanks so much for the information. The 39-031 operator matched exactly with the one on one of my right windows. I take it the 39-032 operator would go on the opposite window (on first glance). I managed to get one of my old operators off the window; dimensions matched exactly with your photo (I attached photo of my operator).
I will also need new covers and handles to go with these operators. Attached photo shows one cover (marked "Truth" on the back), and one handle (marked "SEMCO" on top). If have same covers/handles can you suggest the part numbers? Will take a look a look on your web site. If they don't match exactly to my current ones that would be ok.
Thanks very much!
Thanks so much for the information. The 39-031 operator matched exactly with the one on one of my right windows. I take it the 39-032 operator would go on the opposite window (on first glance). I managed to get one of my old operators off the window; dimensions matched exactly with your photo (I attached photo of my operator).
I will also need new covers and handles to go with these operators. Attached photo shows one cover (marked "Truth" on the back), and one handle (marked "SEMCO" on top). If have same covers/handles can you suggest the part numbers? Will take a look a look on your web site. If they don't match exactly to my current ones that would be ok.
Thanks very much!
1 user uploaded image
Tom from SWISCO
Sep 6, 2022 9:15 am
Awesome! I'm so glad to hear it worked. In answer to your question: yes, the 39-032 is the opposite side of the 39-031. They are otherwise identical, so if one worked for you then the other will, as well.
As for handle and cover, see our 39-114L and 39-107, respectively. These are designed to work on the operator you have purchased and should fit on your window without issue.
