Need to replace the coil spring

Quick Learner from Milwaukee, WI

Sep 19, 2022 3:59 pm

Hi there,

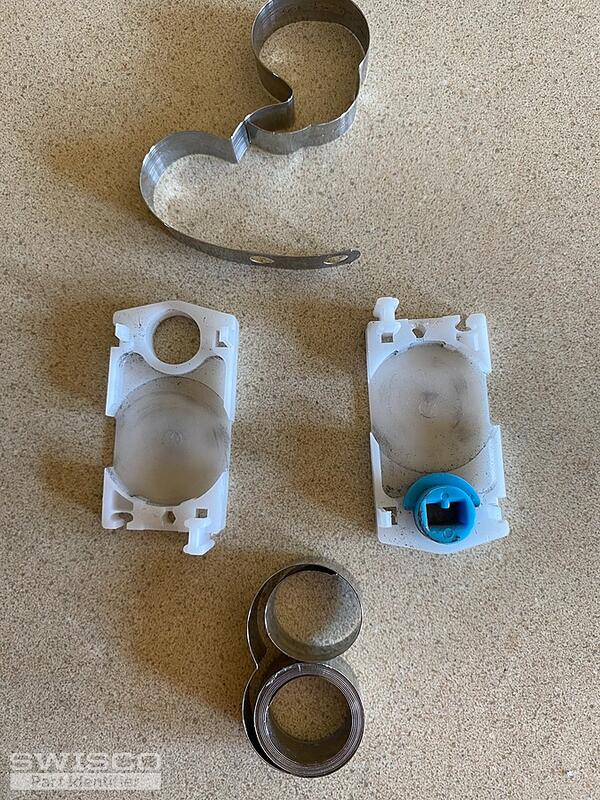

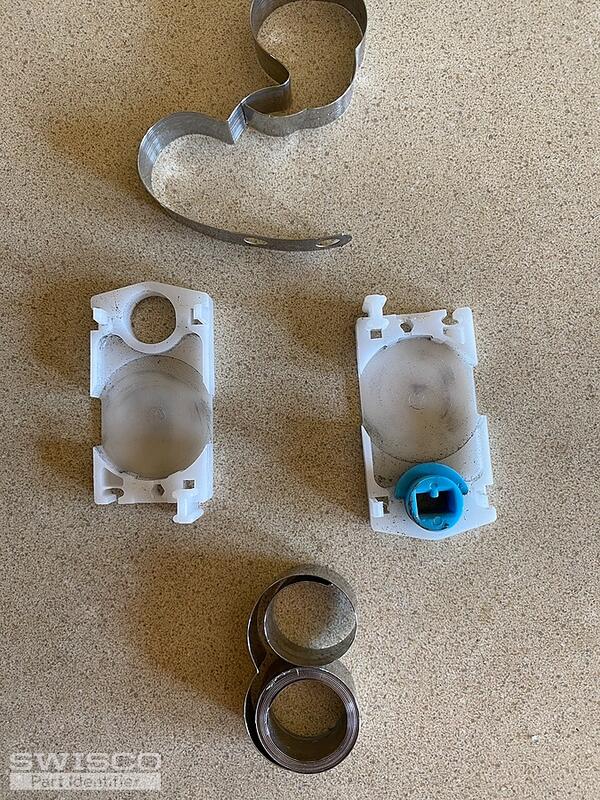

My window has a broken coil spring and I plan to replace it. My window sash weighs about 7.11 lbs. Would you help me identify the parts I should purchase, please?

2 user uploaded images

4 Replies

Emily from SWISCO

Sep 21, 2022 3:12 pm

Hello!

Certainly. I recommend our 15-087 that's designed to be used with the Series 180 coil springs. You can use (1) S180-4 4 pound coil spring on each side of the window which totals 8 pounds of overall support. This weight setup should be fine as long as the weights are within a pound of your sash's actual weight.

Quick Learner from Milwaukee, WI

Sep 21, 2022 4:39 pm

Thank you so much Emily! That was extremely helpful info!

Emily from SWISCO

Sep 22, 2022 7:50 am

No problem at all! I'm happy to help. If you need anything else just let me know!
