Need to replace the door handle lock set with the correct acorn dor wal handle door set

Home Owner from Ok

Feb 5, 2022 4:11 pm

Please help me get the correct handle lock set so I can lock my patio door. Thanks Swisco for your help.

Sincerely,

Denise C.

5 user uploaded images

4 Replies

Dave Sr. from SWISCO

Feb 9, 2022 11:26 am

Thanks for posting. Your handle looks like it would be either the 82-003, with a 3-15/16" hole center spacing, or 82-055, with a 3-1/2" hole center spacing. Look these parts over and see what you think!

Home Owner from Oklahoma

Feb 12, 2022 1:47 pm

Thanks so much Swisco for your reply. I'm a female and I'm not the smartest when it comes to things such as this. I do know for a fact that it is 82-055 3 1/2 and not the other one.

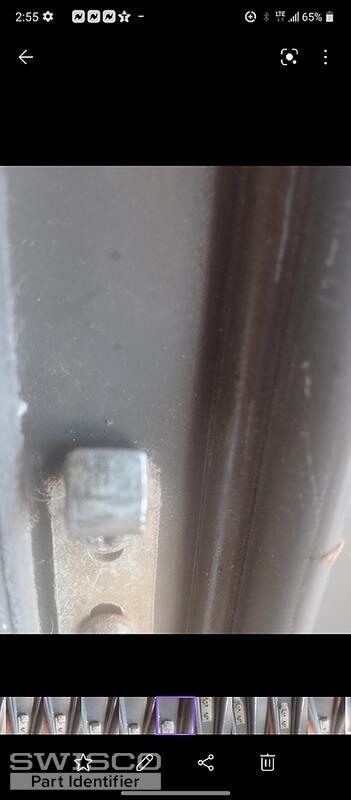

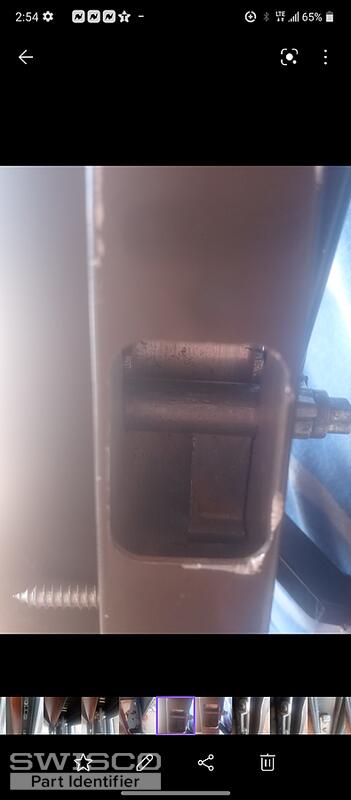

My question is, looking in the picture does picture 5 and 6 click together and allow the door to lock once it's assembled. I'm talking about the two silver pieces. Do I take off the other silver piece. I call it the silver nose to the left of the door. In picture #6 there's several screws and a silver piece. Do I take off my old silver (nose) piece and replace it with the silver piece that's displayed in picture #6 and it will hook to the part when I close my patio door and turn the knob and come together and my patio door will lock to the part displayed in picture #5?

2 user uploaded images

Tom from SWISCO

Feb 14, 2022 8:32 am

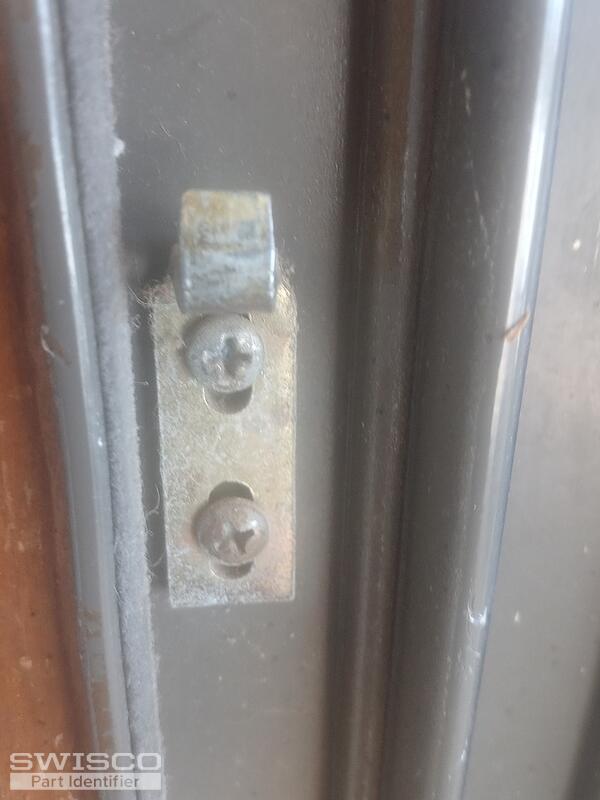

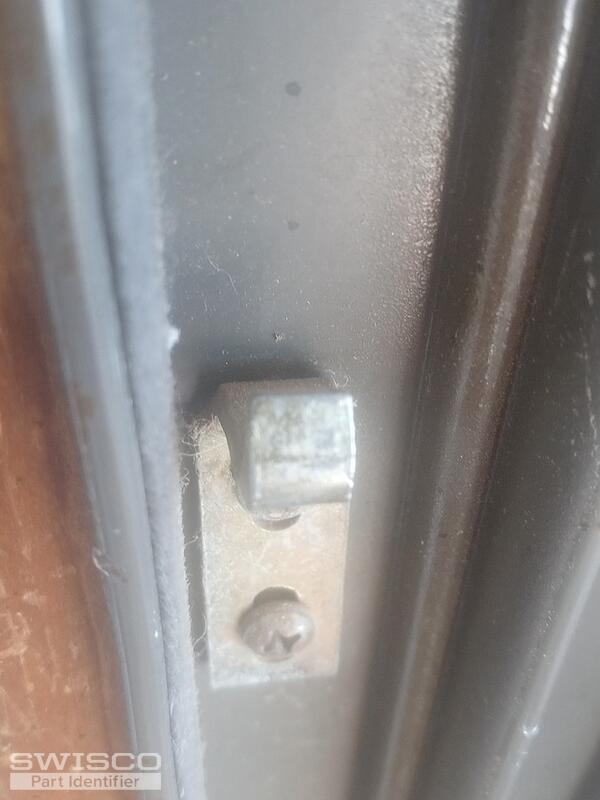

Yes, that is exactly right. The silver piece screwed to the side of the door frame is called a keeper (others might call it a catch). This gives the latch hook on the handle itself something to lock onto when you flip the lever.
