Need to replace the handle for a patio sliding door with the guts in it

Quick Learner from Amawalk NY

Nov 12, 2020 3:55 pm

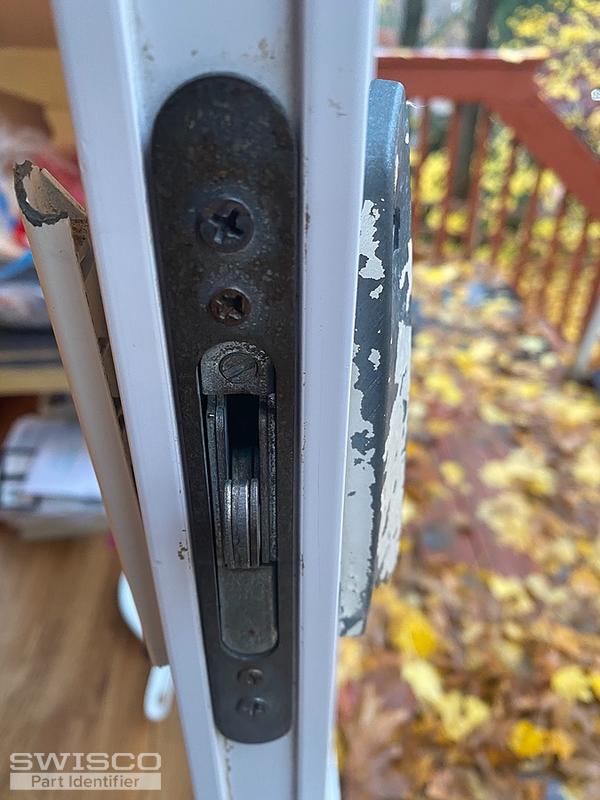

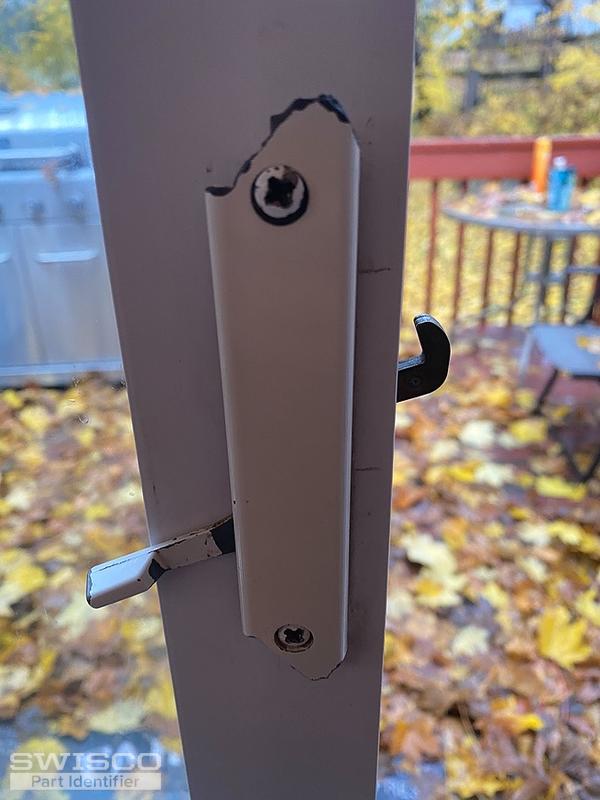

Hi I need help in replacing this handle please the doors got to be like 20 years old

5 user uploaded images

5 Replies

Quick Learner from Amawalk NY

Nov 17, 2020 9:53 am

It's 4.5 inches

Bob from SWISCO

Nov 17, 2020 12:40 pm

Hello there. Check out our 82-226 Mortise Lock and 82-030 Handle Set. See if these parts could work for you.

Quick Learner from Amawalk NY

Nov 17, 2020 4:39 pm

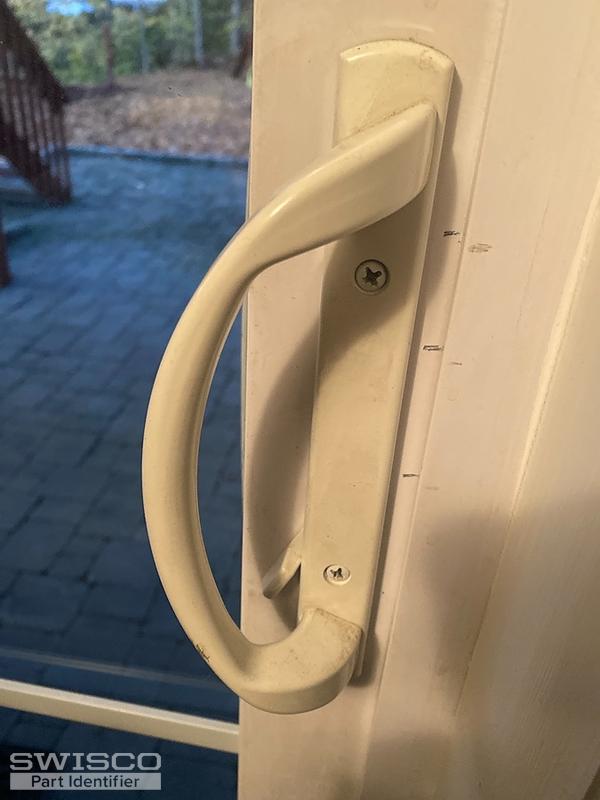

This is the downstairs handle same door upstairs downstairs

1 user uploaded image

Bob from SWISCO

Nov 18, 2020 8:24 am

Yes, so long as the hole spacing (or the distance between the center of each mounting hole) is 3-15/16", then the 82-030 should work well.
