Need to replace this crank assembly

Contractor from Los Angeles

Nov 10, 2023 9:30 am

Hi, I need help identifying this crank assembly for a client. Attached are pictures of the (2) part numbers that appear on it.

2 user uploaded images

4 Replies

Lauren from SWISCO

Nov 10, 2023 1:13 pm

Hello, thank you for posting,

To further review, we will need to see additional pictures where we can see a full view of the arm attachments. From there we can determine the best replacement. Thank you!

Contractor from Los Angeles

Nov 13, 2023 7:04 pm

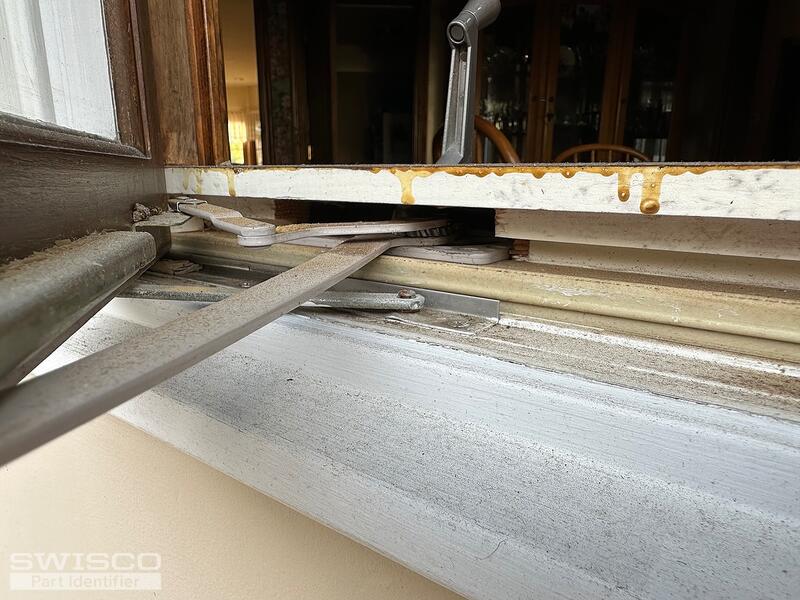

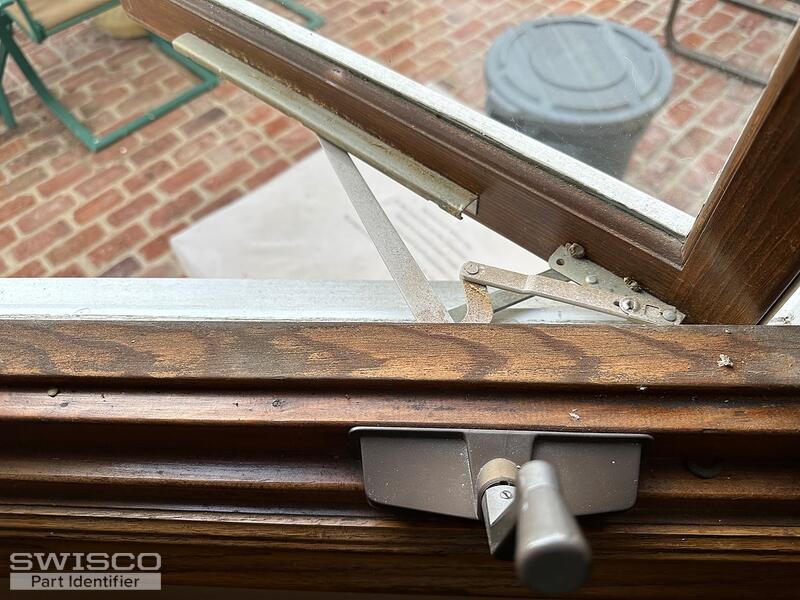

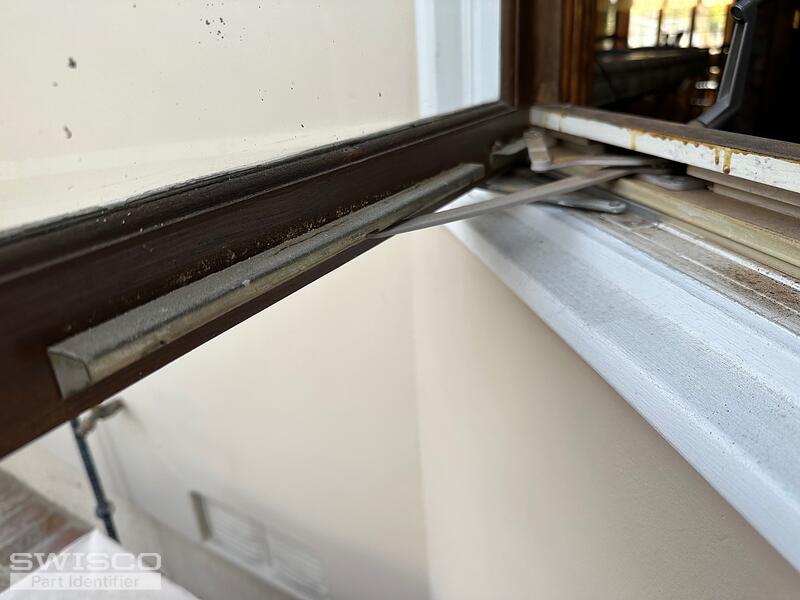

Hi, hope these pictures help.

4 user uploaded images

Lauren from SWISCO

Nov 14, 2023 8:18 am

Thank you for the additional pictures,

Your operator resembles the 39-031 and 39-032 operators. Please review the overall style and dimensions to confirm a good fit!

If you need a new cover and handle, take a look at the 39-107 and 39-114L. Let us know if you have any additional questions.
