Need to replace truth window operator

Home Owner from Arcata,Ca
Aug 7, 2024 6:11 pm
Hi,

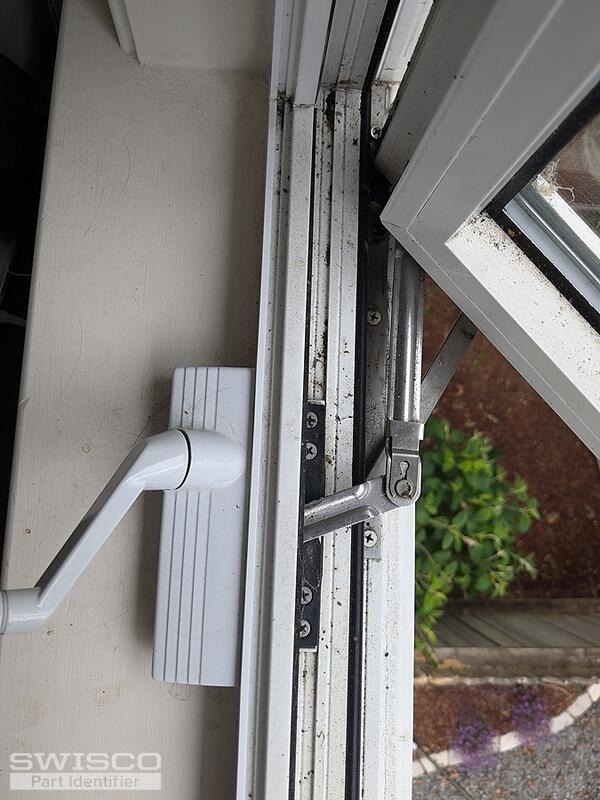

I am trying to identify correct part for this Truth brand window operator, that had some gearing issues.

Thank you

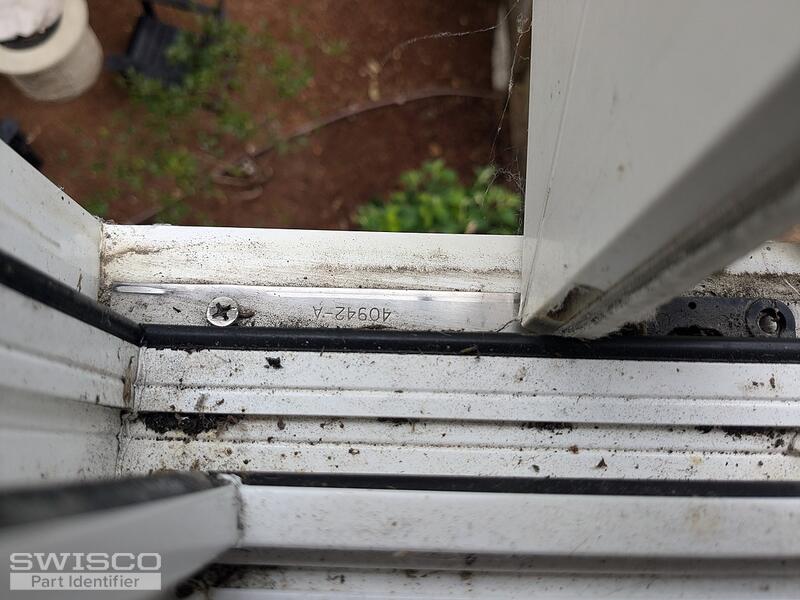

PXL_20240803_165635111 PXL_20240803_165717318
2 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
Aug 8, 2024 12:12 pm
SWISCO
EXPERT

Hello,

You have an older version of our 39-091 and 39-092 ROTO casement operators. Unforutnately, the link arm was discontinued and is no longer available. You would need to reuse the arm with the new operator if possible. We apologize for the inconvenience.

Dimensions for 39-091
Dimensions for 39-091

If you need new hinges as well, take a look and compare the specifications of the 36-048 set to yours. Thank you!

Detail of 36-048
Detail of 36-048
