Need to replacement parts. Window Chelsea and top sash guide

A handy person from Miami says:

Bottom of Channel white plastic party- the shoe is 1 inch wide. One photo included.

Top plastic part in black - See photos.

Metal channel is 1/2".

Lenght 25". Markings on Channel BSI 2430.

Need top sash Guide- top is 1" by 1" square. See photo for profile.

Thanks in advance for your help.

Thumbnail of the uploaded file named 0F2402F7-B186-47AB-924A-B862E242BA45.jpeg
Thumbnail of the uploaded file named 03FC4BEB-441C-474F-BD00-3786EA5222B7.jpeg
Thumbnail of the uploaded file named DD7BD3FA-A139-4725-960A-B98607830536.jpeg

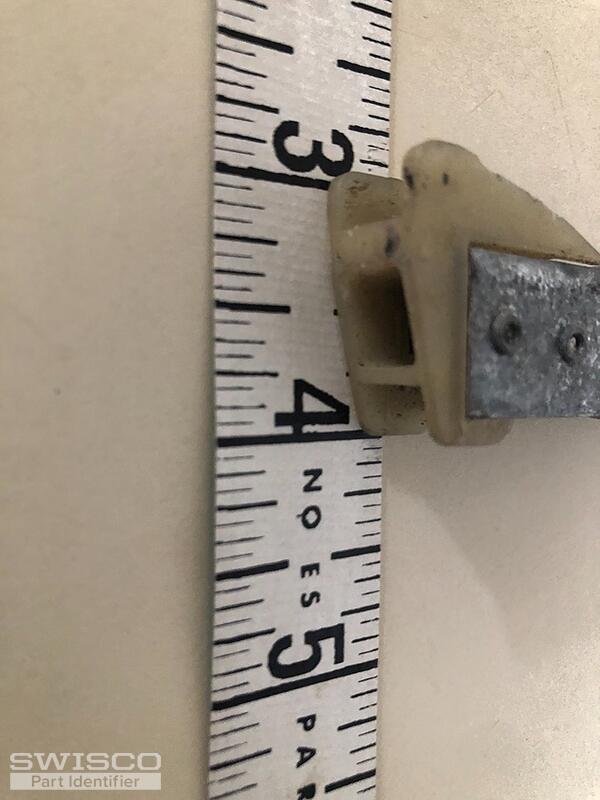

Thumbnail of the uploaded file named 053CB000-1999-43C5-9CDC-53616ED5B9D9.jpeg

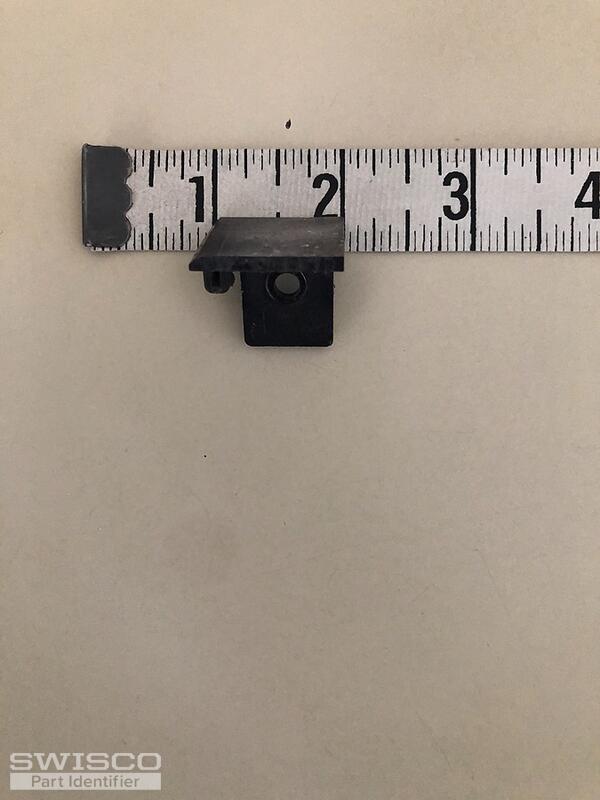

Thumbnail of the uploaded file named 1C0C5F8E-B9FA-4D46-B197-F5AC4BE7AE49.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for reaching out to us. It seems to me that your shoe might be a bit over 1" deep, but I admit that's not the easiest thing to tell from a photo. If you're confident that the shoe depth is 1" then you can use our S351-25   channel balance with a 2430 stamp option. As for the top sash guide, see our 18-168 .
