I have a pair of casement windows about 22x36 for each window. The upper hinge on the left one broke during a wind storm. Would like to replace it and also the base hinge too as I live near the ocean and they show a lot of rust.
I saw no manufacturer marks on the windows and I can't remember which company they were purchased from. They are a pure white color.
Hopefully these photos will help you identify the correct parts.
Need top "hinge" on left casement 22x36 window
Home Owner from Santa Cruz, CA
Jun 20, 2023 8:19 pm
4 user uploaded images
5 Replies
Home Owner from Santa Cruz, CA
Jun 20, 2023 8:24 pm

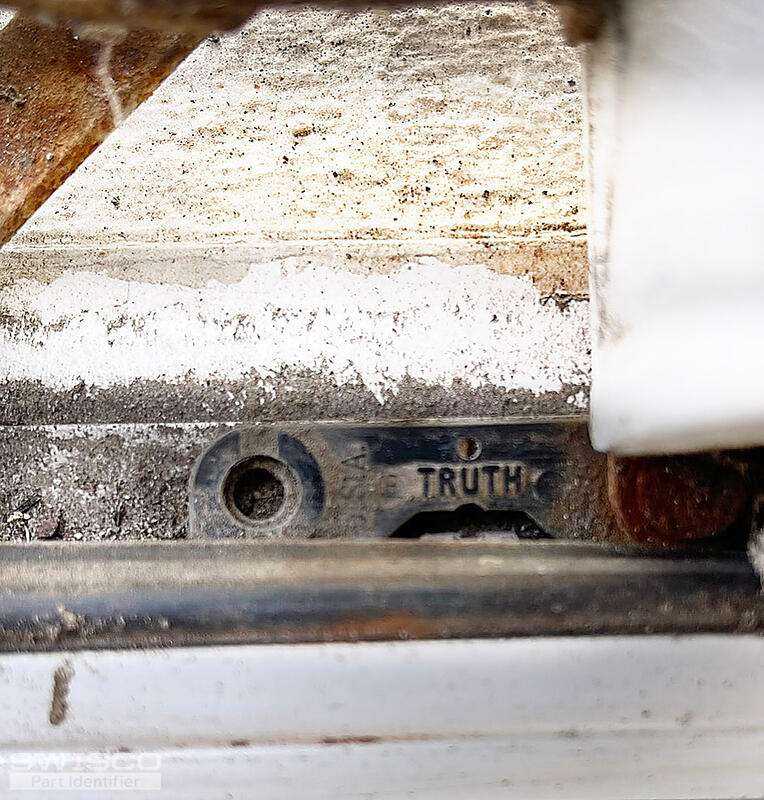

I did see the word TRUTH etched into the casement operator (image 4) so I think that is the brand of the operator.
Tom from SWISCO
Jun 21, 2023 2:16 pm
Hello! We don't sell this exact hinge, but our 36-048 is a very similar design and should work just as well. The catch is that you have to replace the top and bottom at the same time. You can't mix the old and new hinges or else it won't function properly.
The video below will go into more detail.
Home Owner from Santa Cruz, CA
Jun 21, 2023 2:33 pm

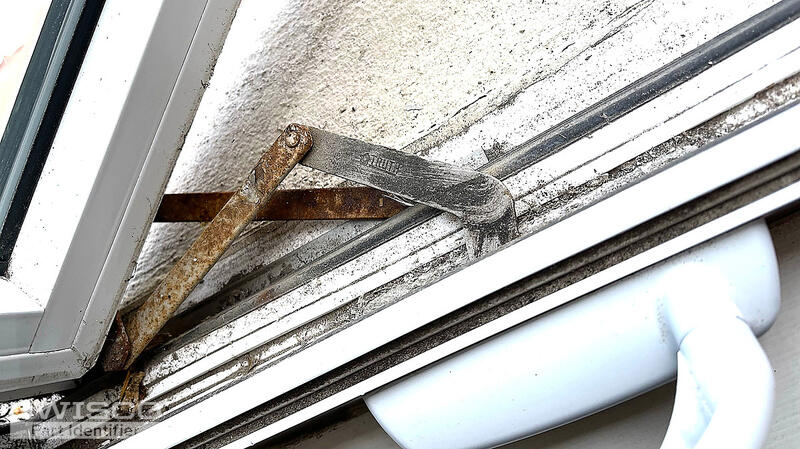

Thanks for the info. How much does the bottom cost? Is it the same hinge as the top because the operating mechanism is on the bottom.
1 user uploaded image
Tom from SWISCO
Jun 22, 2023 2:09 pm
The 36-048 is a set that includes both the top and bottom hinge. These work interchangeably with left or right hand applications.
