Need track for these doors

Quick Learner from Altoona, PA

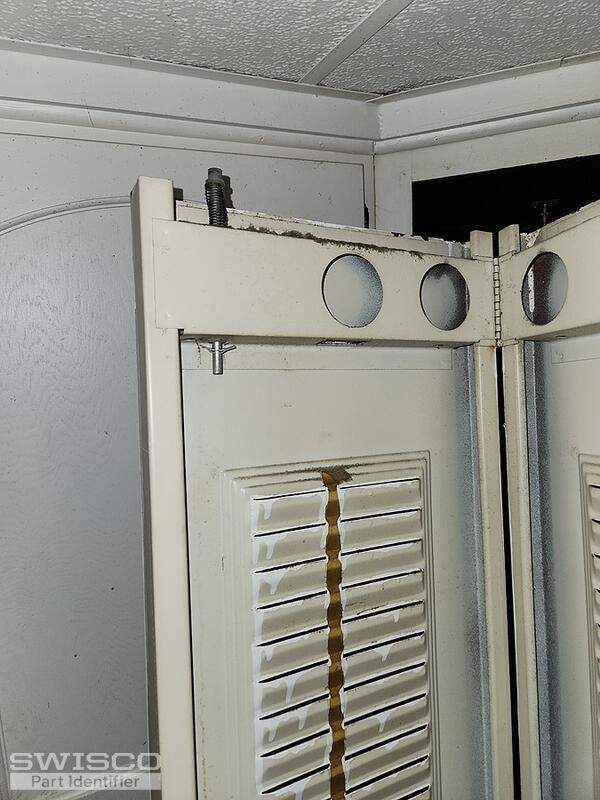

The doors are marked "Benchmark Bi-Fold Steel doors" and each set of doors is approximately 48" wide. I would need the top track and bottom pivot/track- the only thing I have is the doors.
4 user uploaded images
5 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

I cannot guarantee we can provide compatible tracks for your current hardware, but I am going to have one of our senior experts further review. I will be in contact as soon as more information is available. Thank you for your patience!

Paul
Paul from SWISCO
SWISCO
Expert

Hello,

The 48" bi-fold door track you can use is the 21-404. The doors will need one 21-002 bottom adjusting pin and three 21-044 spring loaded pins. One for the top door pivot and two for the top and bottom guide pins. Being your doors are old, you might need to replace the nylon bushings, 21-163 to keep the pins from scrapping the metal door holes. The 48" door tracks come with two door pivot brackets and one door bumper.

Let us know if you have any questions!

Quick Learner from Altoona, PA
Hi- what pivots would I need? All the pins appear to be there and intact.
Paul
Paul from SWISCO
SWISCO
Expert

Hello,

The 21-404 comes equipped with two pivot brackets. Please let us know if you have any additional questions!
