Need two balancers for milguard window

Home Owner from Seattle Washington
Can you provide two balancers measured 25" long?
There is a Caldwell written as 23 3 DL Caldwell on it

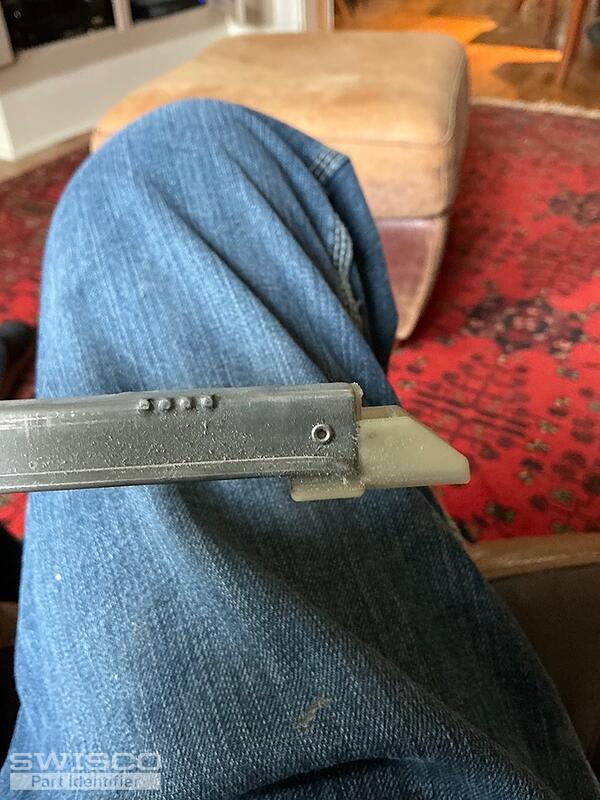

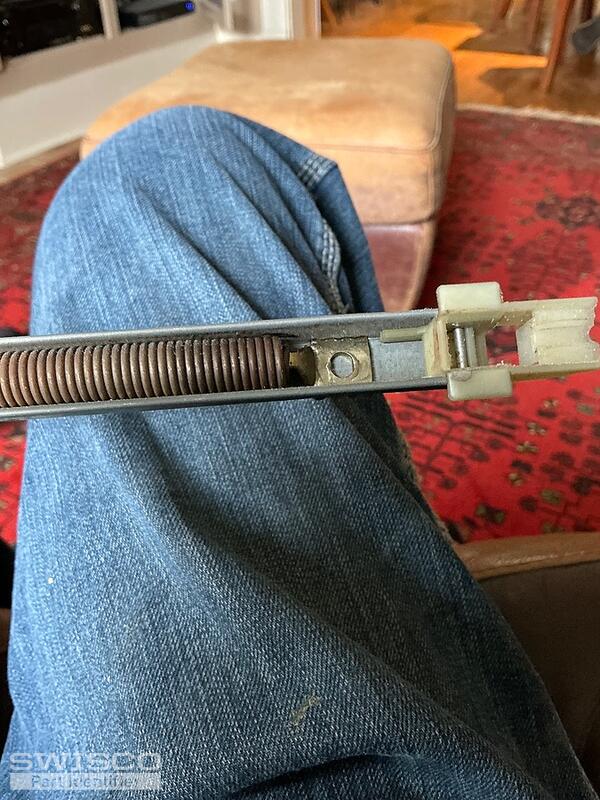

5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for your post! We can provide you with the replacement balances you are searching for but there are a few details I'll need to confirm to identify the correct recommendation.

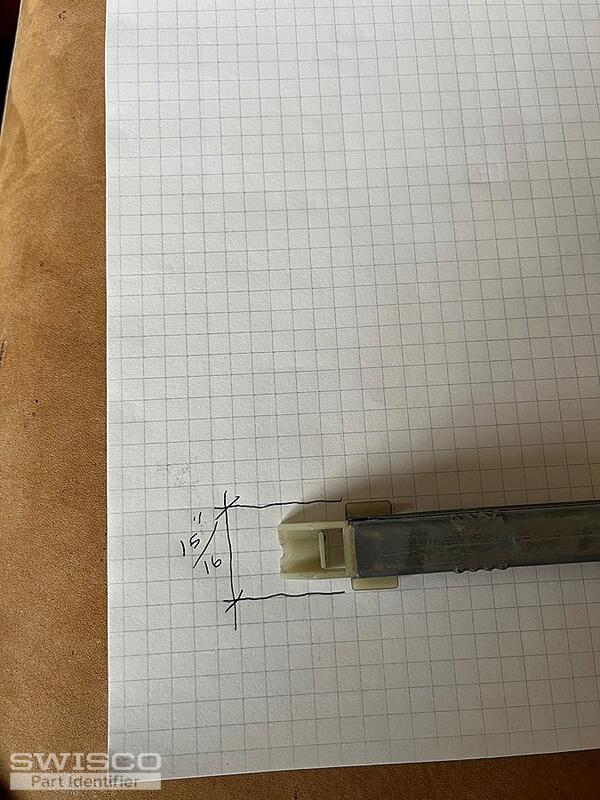

To start, the length of the metal channel (excluding the top and bottom attachments) should be 24"; be sure to double check this to confirm. To determine the correct series of the balance, I'll need to see a photo of the bottom shoe on the balance and I'll need to know the measurement for the depth of that shoe (written out).

It would also be a good idea to confirm the exact weight of the sash.

Profile view of a winged balance attachment
Profile view of a winged balance attachment

Home Owner from Seattle Washington
Hi
The length of metal is 24".

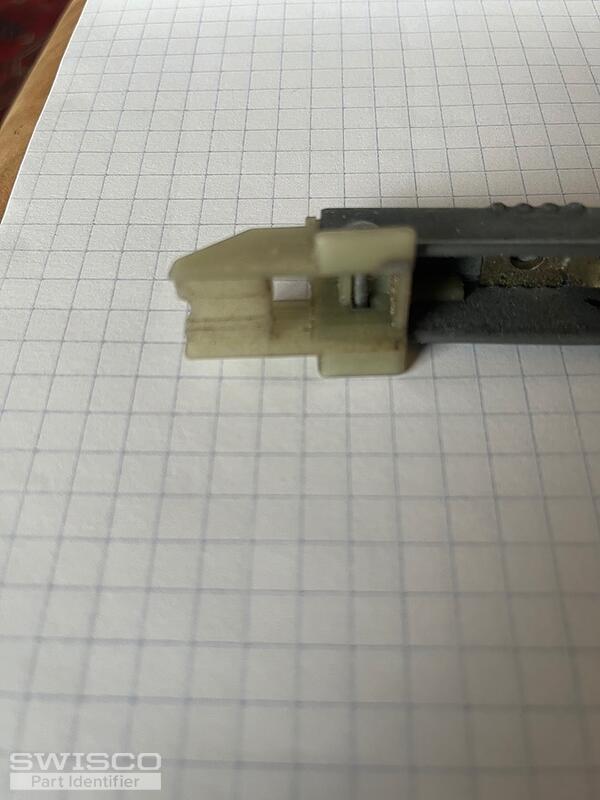

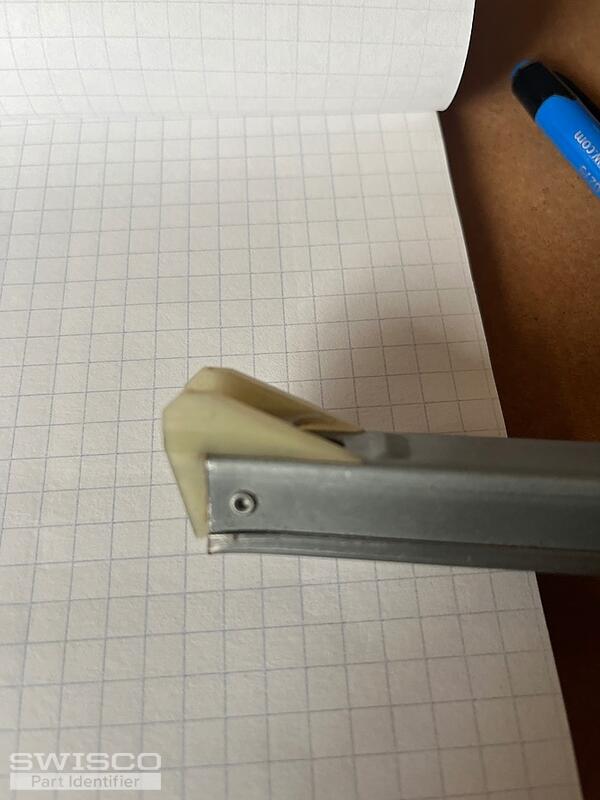

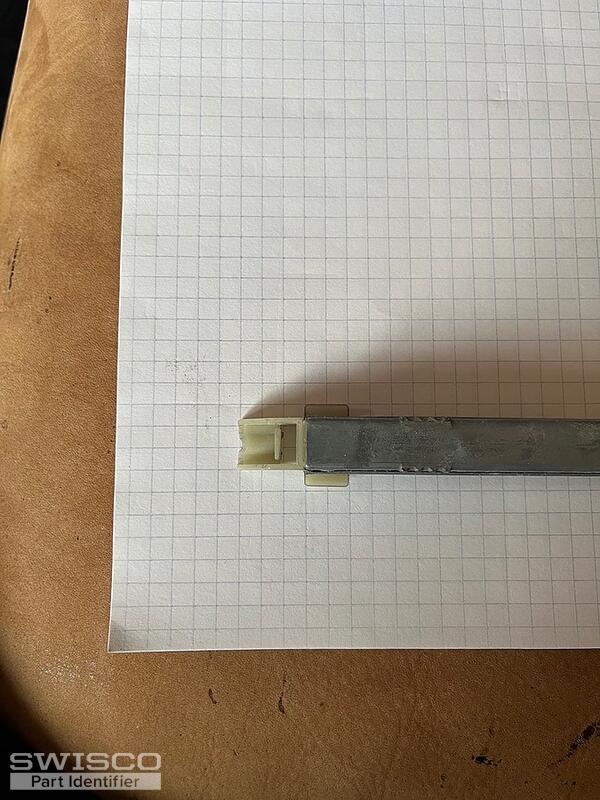

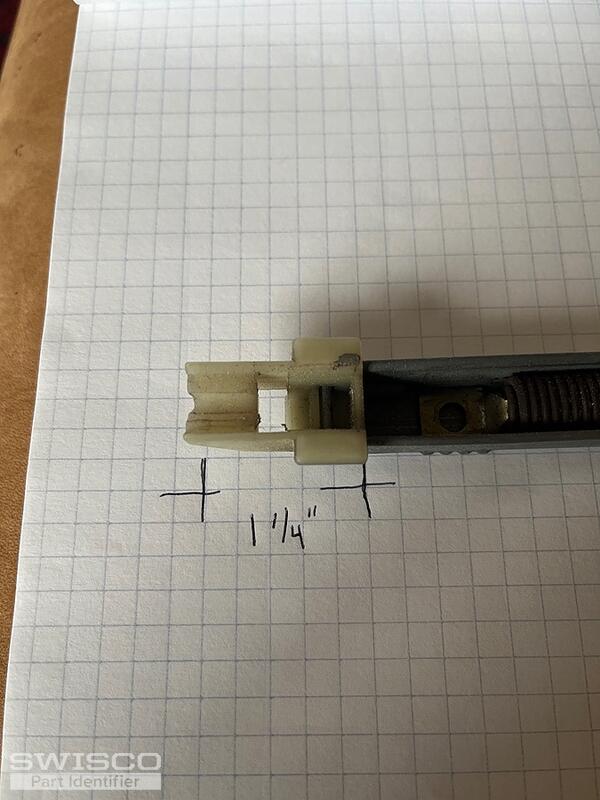

I'm including pictures of what I think is the upper shoe too.
Let me know if you need anything else from me
Thanks
5 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for confirming!  Since your balances are assembled with a winged top guide and a wingless bottom shoe, you'll need the S395-24 channel balance. You can select the 2330 stamp option.
