Need two different balances

A quick learner from Lincoln, CA says:
June 12, 2021

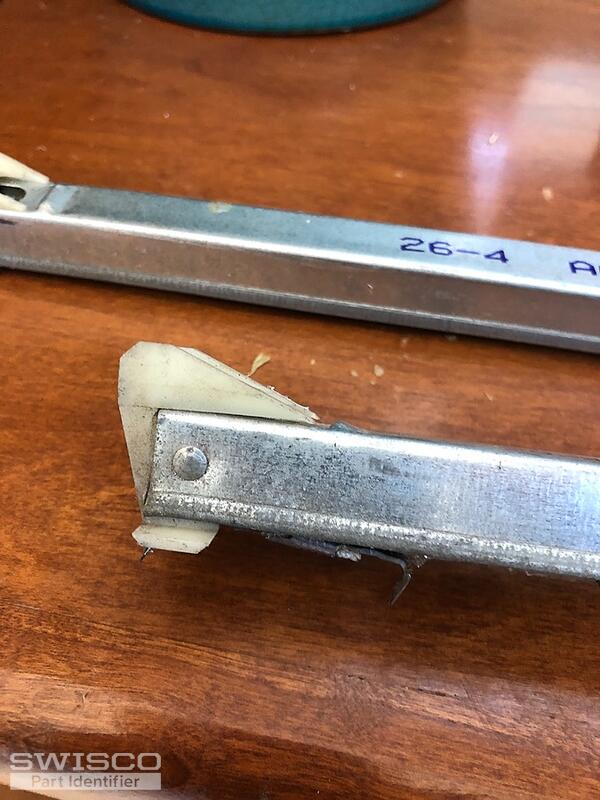

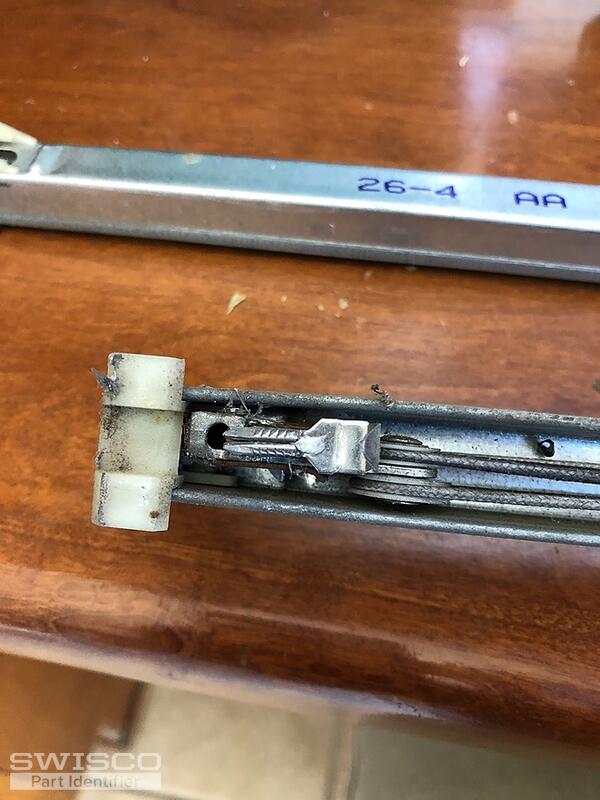

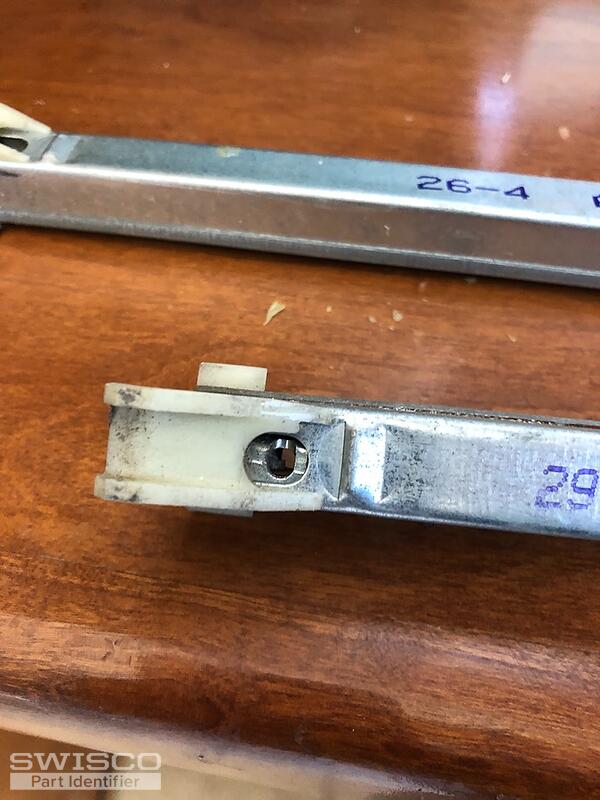

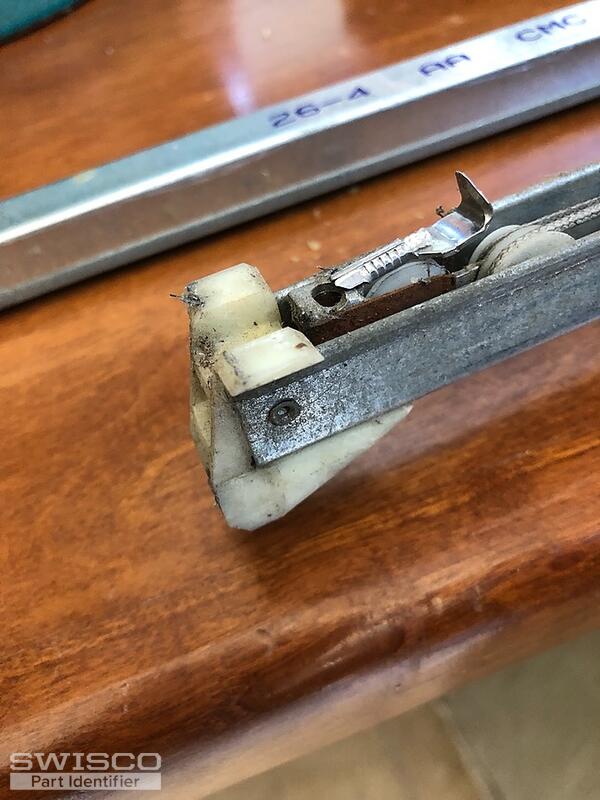

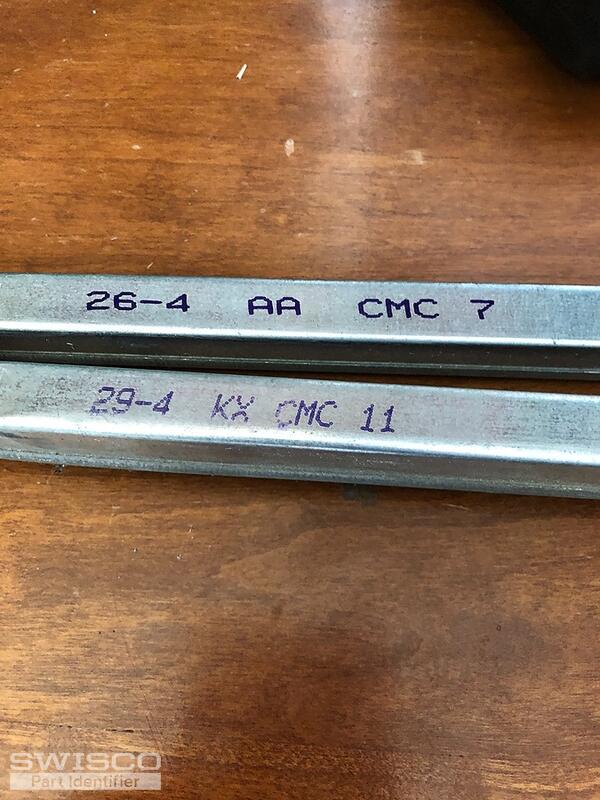

Hi can you help me identify the correct balancers. 1st is 26-4 AA CMC 7 metal length is 27". 2nd is 29-4 KX CMC 11 metal length is 30". Winged channel balance shoe appears to be just larger then 1 1/8", and the metal slide appears to be 5/8" on the open ended side and 1/2" on the opposite side, and 9/16" deep. Let me know if you need additional information.
Thumbnail of the uploaded file named F893A815-E811-44F2-896B-41A315F4F76F.jpeg
Thumbnail of the uploaded file named F8208404-1071-4F9A-A1E9-E265FCC12BBE.jpeg
Thumbnail of the uploaded file named 93D74B5C-F17E-4031-9825-33FC5A3FC154.jpeg
Thumbnail of the uploaded file named 19B0437D-7135-402B-8DEA-17032828EBAF.jpeg
Thumbnail of the uploaded file named 94E58B66-C43F-4C71-B0C8-51856F71E828.jpeg
Profile picture of Bob
Bob from SWISCO responded:
June 16, 2021

Thanks for writing in. Do both sized balances have the exact same nylon fittings on each end? And is the depth or the 'heel-to-toe' measurement indeed bigger than 1" (you say a little greater than 1-1/8)? If so, it sounds like you need our S385-27 with a stamp option of 2640, as well as our S385-30 with a stamp option of 2940. Let me know if you have any other questions.
A quick learner from Lincoln, CA says:
June 18, 2021
Yes, both balances are the same. On measuring the 'heel-to-toe' a second time the measuremnt is 1-1/16th. Would that still be S385-27?
Profile picture of Bob
Bob from SWISCO responded:
June 18, 2021

Yes, I think so. Odds are that your balance shoe was once 1-3/32" and just wore down from use over the years. If it's over 1" then I feel confident that the S385-30 is what you want.
A quick learner from Lincoln, CA says:
June 18, 2021
Thanks Bob! Just to confirm the 27" balancers should be replaced with S385-27 and the 30" should be S385-30, correct?
Profile picture of Bob
Bob from SWISCO responded:
June 18, 2021

Yes, that is correct. Please let me know if you had any questions and I would be happy to assist!
27" Series 385 Channel Balance
27" Series 385 Channel Balance
S385-27
$10.55
30" Series 385 Channel Balance
30" Series 385 Channel Balance
S385-30
$11.30
