These are 29" long...5/8 width....1/2 depth....the stamp is 28 3 CN Caldwell.

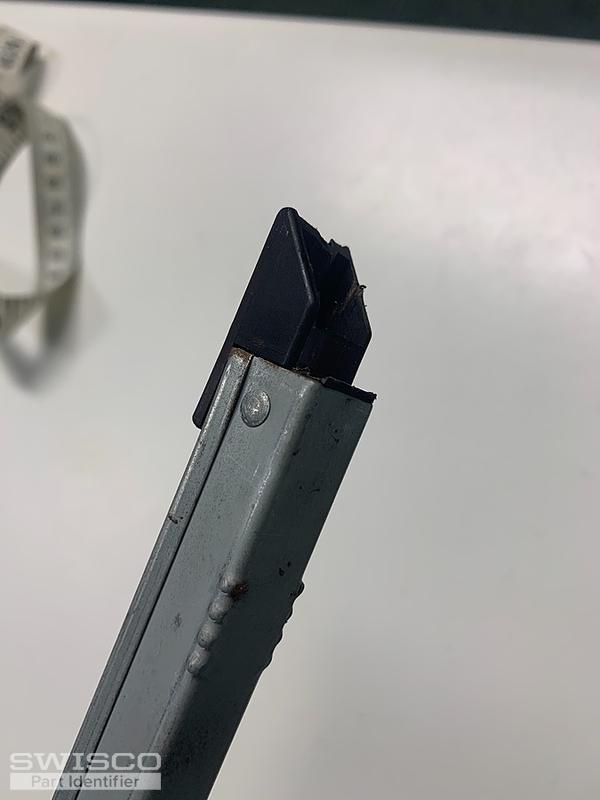

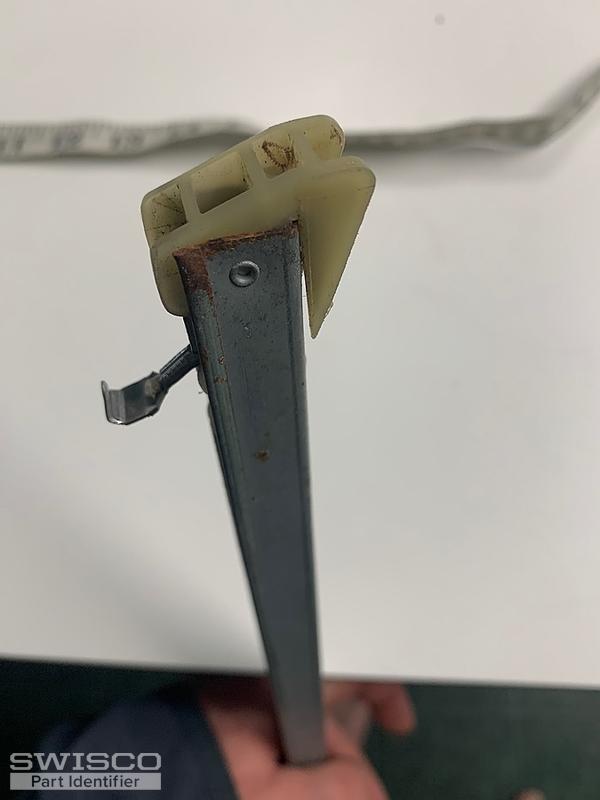

Neither end guide has side flares/wings. See pics...
Windows approx 30 years old.
Thanks for your help...David
Need two replacement channels to match Caldwell 28 3 CN
Home Owner from Starkville, MS
Nov 8, 2020 9:33 am
5 user uploaded images
2 Replies
Casey from SWISCO
Nov 11, 2020 11:56 am
Hello,
It looks like you have either our S351-29, with a 15-002 bottom attachment, or S390-29, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 2830 spring strength option for your replacement balances. Thank you!
Comparison of the S351 and S390 balance shoes.
