Need two window balances.
Hello there!
Thanks for reaching out to us. It looks like your balance uses a terminal clip like the Series 770. Can you confirm the length of the metal channel? Can you also confirm how your balance attaches to the top of the window?

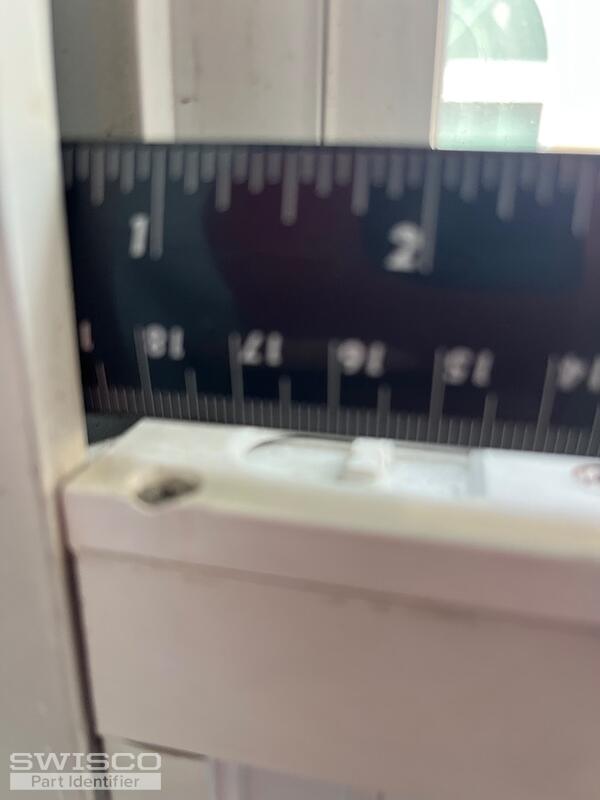

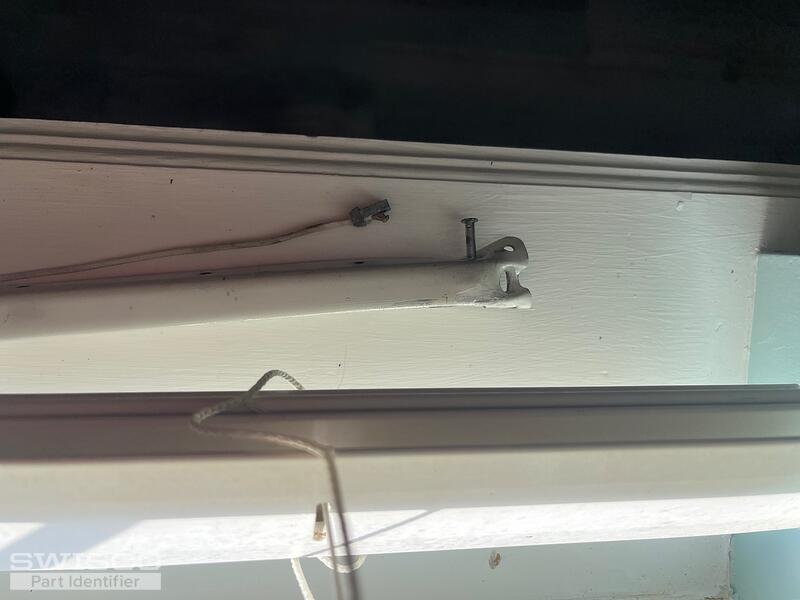

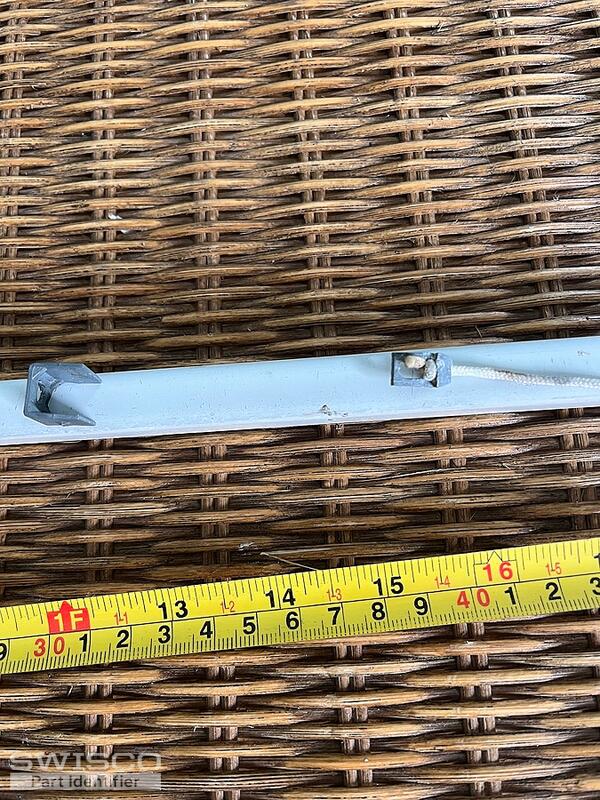

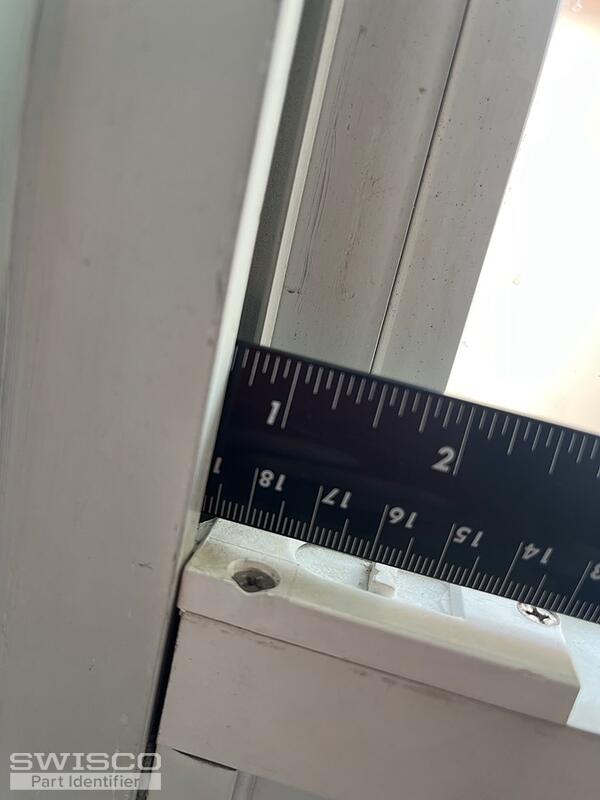

The metal channel of the balance is 27 inches long, and it appears to be attached with a screw drilled through the uppermost part of the channel. FYI, the sash weighs 25 #. It is a tilt window, and I'm going to need two of the shoes also. Thanks
Thank you for the additional photos! They're a huge help. Take a look at the S770-27 which also attaches to the top of the window with a screw. You can also select the 27D stamp option. A pair of balances with this stamp will support a sash weighing 22 to 26 pounds.

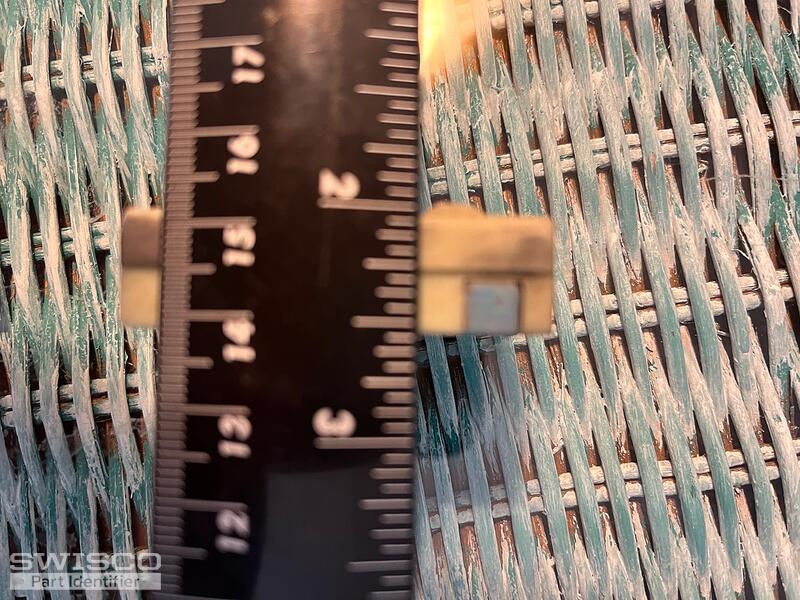

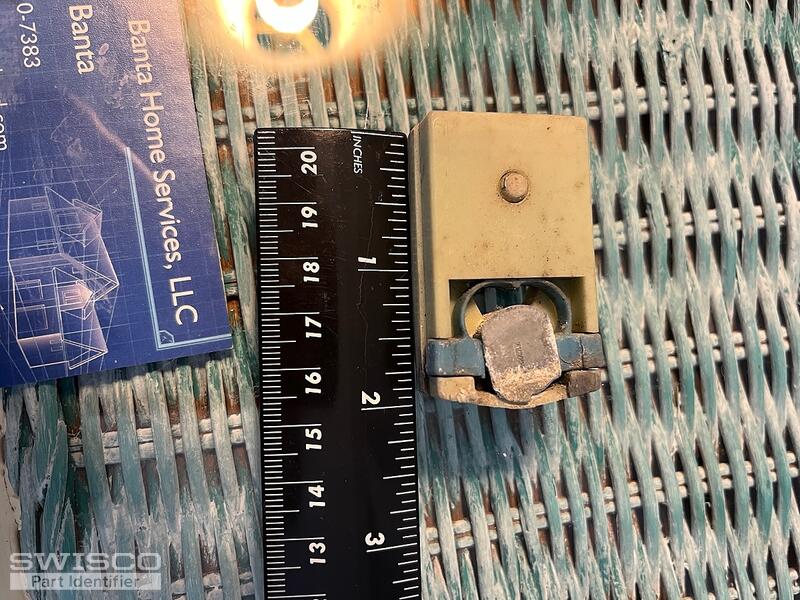

I'm not certain of the shoe without seeing the front of it but start by taking a look at the 15-152 and see if the specifications match up. I'm not sure of the tilt latch either since I can't see the whole thing but the 26-170 comes to mind. You'll want to compare our specifications with yours to confirm they align.
Let me know if you have any questions!
