Need weather strip for the Patriot Windows shown

A home owner from Bel Air, MD says:

June 8, 2020

Hi, I need the strip that attaches to the bottom of the lower sash. Any chance you have them? TY

Thumbnail of the uploaded file named Patriot_standard.jpg

Thumbnail of the uploaded file named Patriot_thin.jpg

Tom from SWISCO responded:

June 11, 2020

I'm afraid I can't confirm if we have this weatherstripping based on this photo. We need a clear shot of the end profile, preferably from an undamaged sample. We also need to know its precise size. The video below will go into more detail.

A home owner from Bel Air, MD says:

June 11, 2020

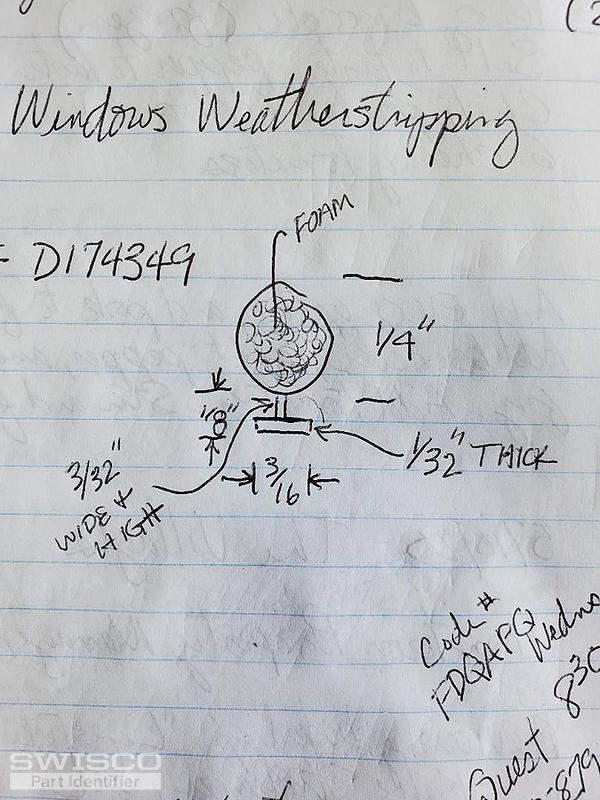

Here is the end profile. 3/16" wide x 1/8" high (overall) T-shaped base made of polyethylene-like plastic. The T-base connecting leg is 3/32" thick while the T wings are 1/32" thick. Ball is 1/4" round and filled with foam. T-base and ball have actually completely separated, but I cross-sectioned a 1" segment and held them together with pliers for this photo. Let me know if this does the trick.

Thumbnail of the uploaded file named Patriot windows weatherstrip.jpg

Thumbnail of the uploaded file named Weatherstripping diagram.jpg

Tom from SWISCO responded:

June 12, 2020

Thank you! We don't have this exact seal but I think the 58-135 may be what you're looking for. The dimensions are a tiny bit off but I think it can still work. Please review and let me know if you agree.

Profile view of 58-135

25ft Bubble Seal, 3/16" x 11/32"

58-135

$15.57
