Need window parts

Quick Learner from Westwood
Jul 17, 2023 1:41 pm

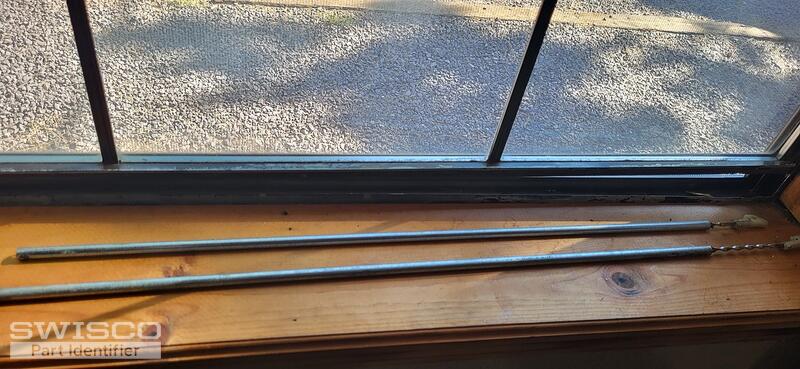

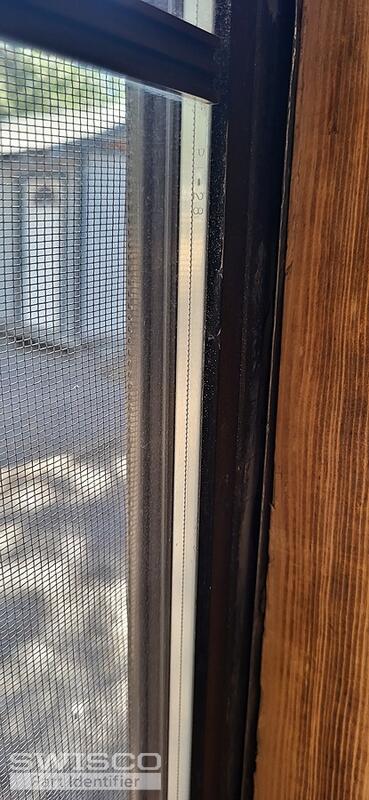

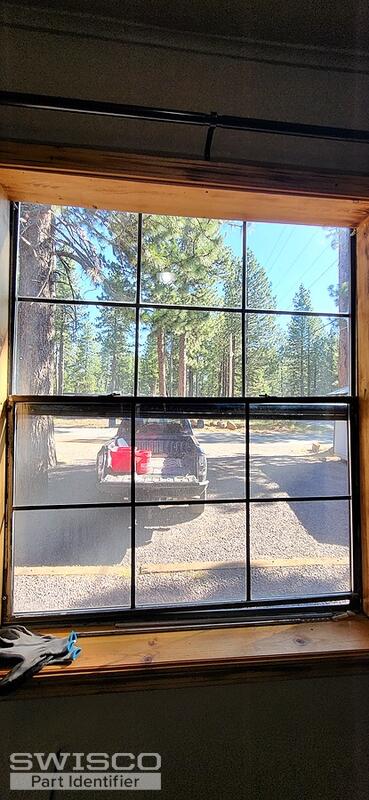

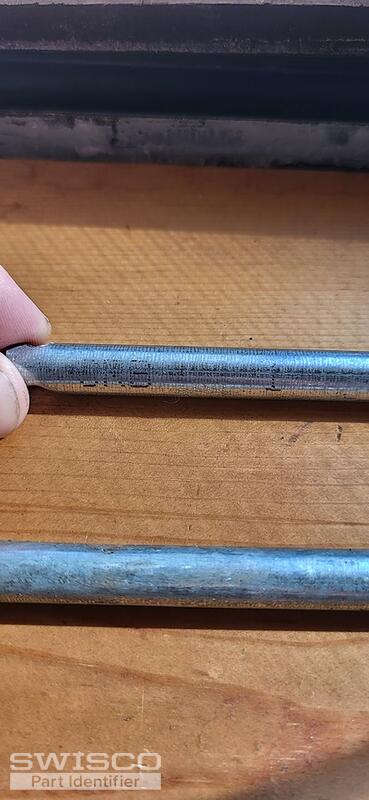

On the window frame I see PI-28, black aluminum. On the spiral rod I see CRB 1. The rods are 51.5 long when extended. The metal rod is 27 inches, and 29.25 inches with the plastic piece. Thank you
20230717_091053 20230717_091119 20230717_091148 20230717_091157 20230717_091213
5 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
Jul 18, 2023 10:25 am
SWISCO
EXPERT

Hello,

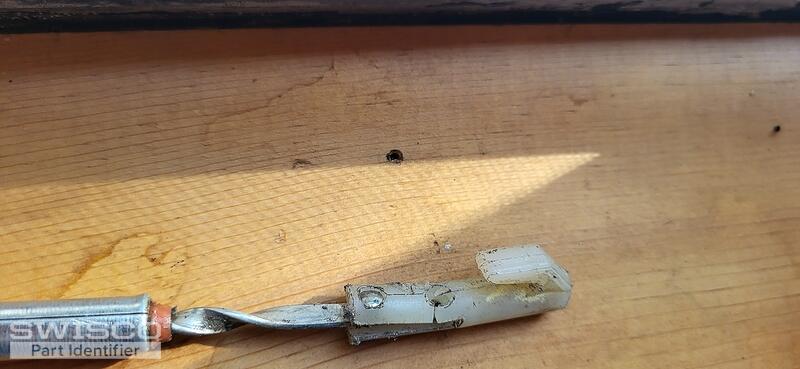

Your spiral balance resembles the Series 307 spiral balance but it looks like the bottom of your fitting may have broken off. If so, you can use the S307-27 with a red tip option to replace the balances on both sides of the window. Take a look and thanks for posting!

+ Add a Comment
