Need window parts replaced

A landlord from Denver says:
I have 2 20 year old windows that need the following parts replaced:
4 Channel Balances
4 Top Sash Guides
4 Take out clips

What information do I need to provide to find the correct replacement parts?
Thumbnail of the uploaded file named window.jpg
Profile picture of Tom
Tom from SWISCO responded:

I'm not sure what you have, unfortunately. We have dozens of different balances with that stamp. It's not a product code or anything, it just indicates the strength of the spring.

In order to figure out what Series this is, I need you to remove an undamaged version of this balance from the window and show me clear pictures of the top and bottom nylon fittings. I will also need to know the dimensions of these fittings.

Finally, I will also require photos of the top sash guides and take out clips. Please make sure that both parts are undamaged and in one piece and that I can see them clearly out of the window frame.

A landlord from Denver says:
Balance is 28" long.
Nylon fittings are 1/2"X1/2"

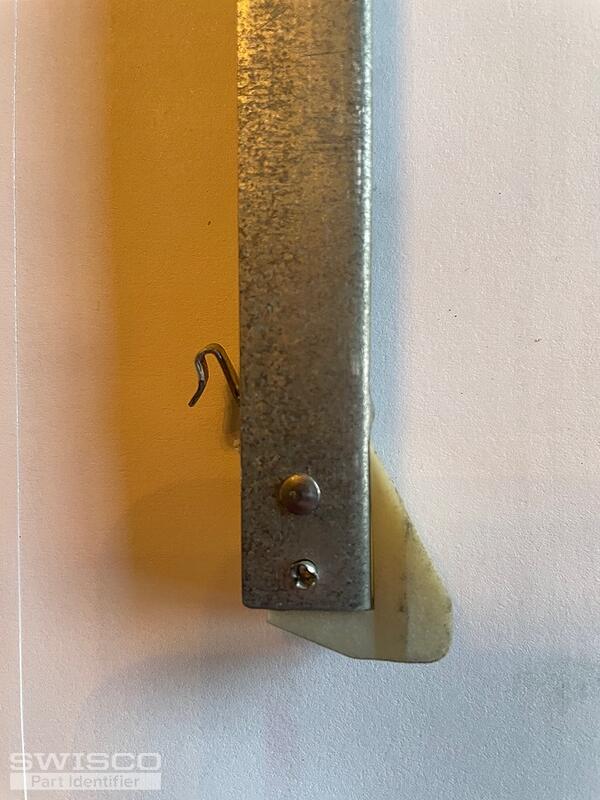

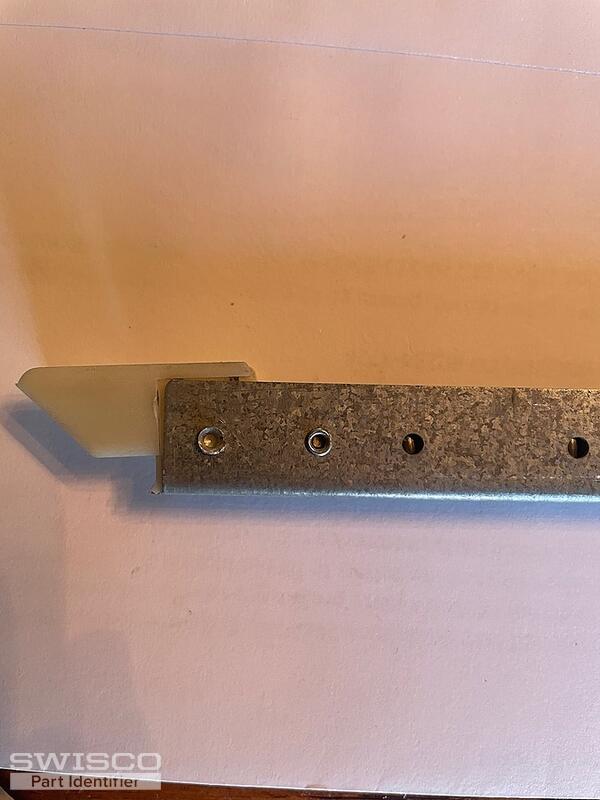

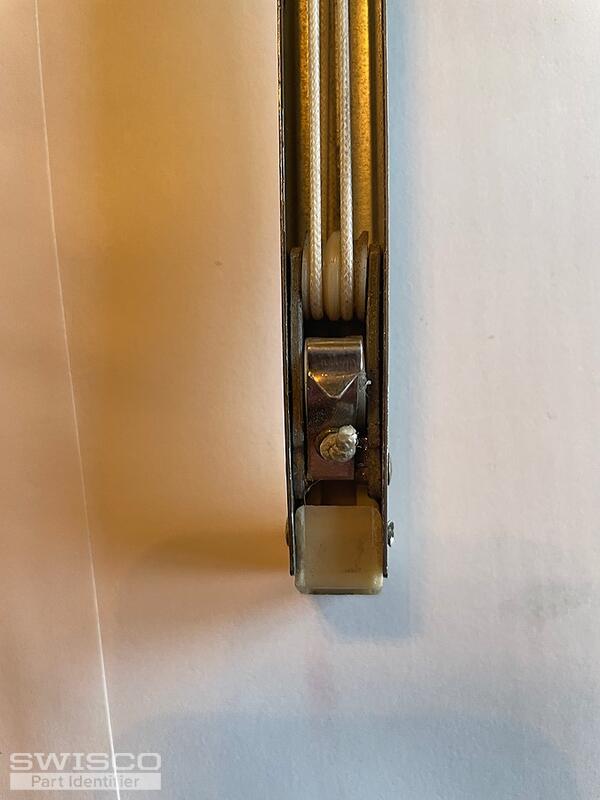

Pictures attached. Let me know if you need anything else.
Thumbnail of the uploaded file named C884B63E-8F81-4790-B9C7-C14233FA2F67.jpeg
Thumbnail of the uploaded file named F78698A0-FBC0-42A0-A376-EAA83641EEE6.jpeg
Thumbnail of the uploaded file named 84685196-FE35-4905-8F38-548569C78276.jpeg
Thumbnail of the uploaded file named F9F20664-1F71-4EFA-9114-AAF382BBDF29.jpeg
Thumbnail of the uploaded file named 3820ADA7-20C7-4290-8B9F-4CD6B79BB3CD.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thanks! Thanks for your photos. Based on what I see here, you have either our S351-28 or S390-28, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

I also see you need a new top sash guide, but I don't recognize this one. At least, not from this angle. Would it be possible to see a clear photo of it from the front and side?

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

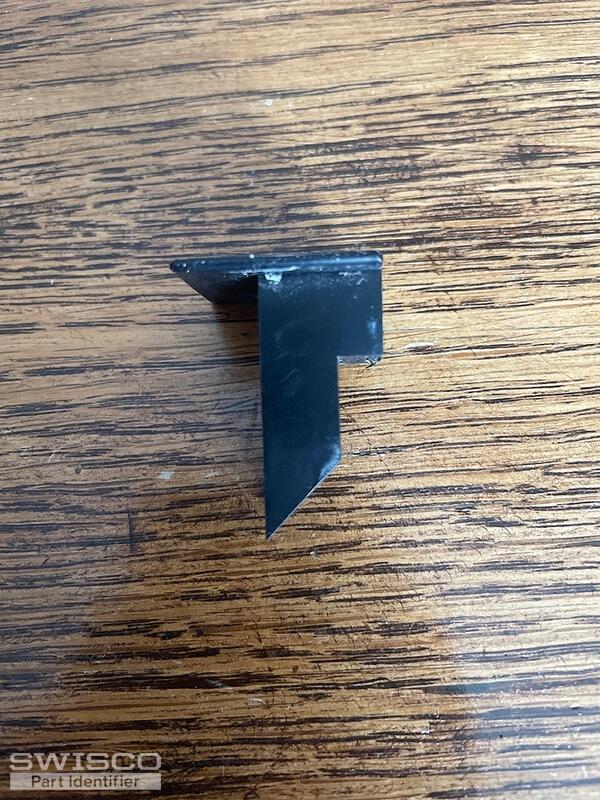

A landlord from Denver says:
I measured and it's 1 1/8".
Thumbnail of the uploaded file named image.jpg
Profile picture of Tom
Tom from SWISCO responded:

It's still hard to get a good look at this top sash guide but you could potentially consider our 18-009 or 18-127. Review the dimensions we show for both to determine if either one lines up with the original.
