Needed Parts

Question

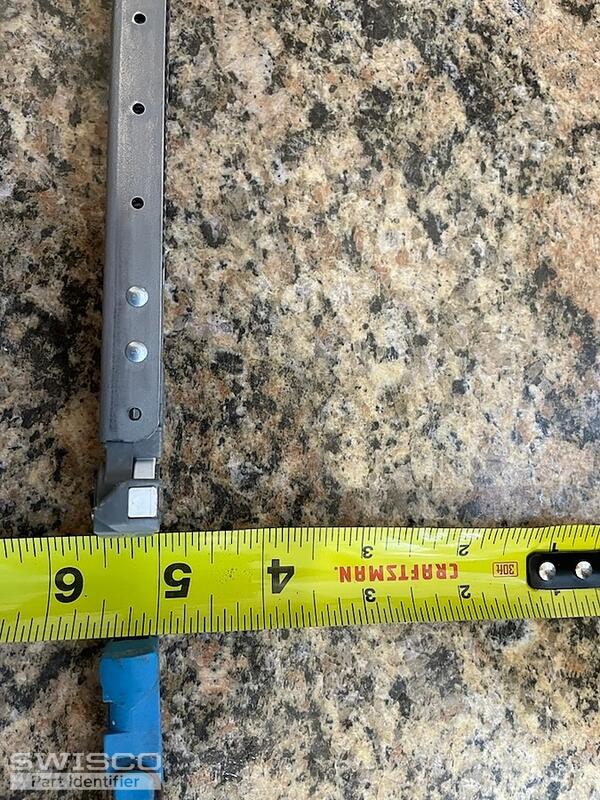

1853: 28" Spiral Balance, Sash it holds is 19 lbs. Need (2),
1856:Plastic keeper Need (6),

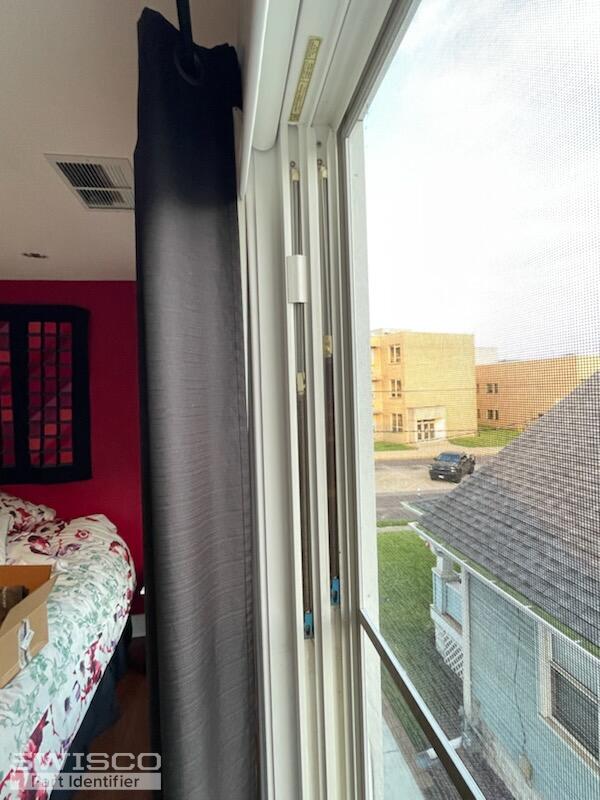

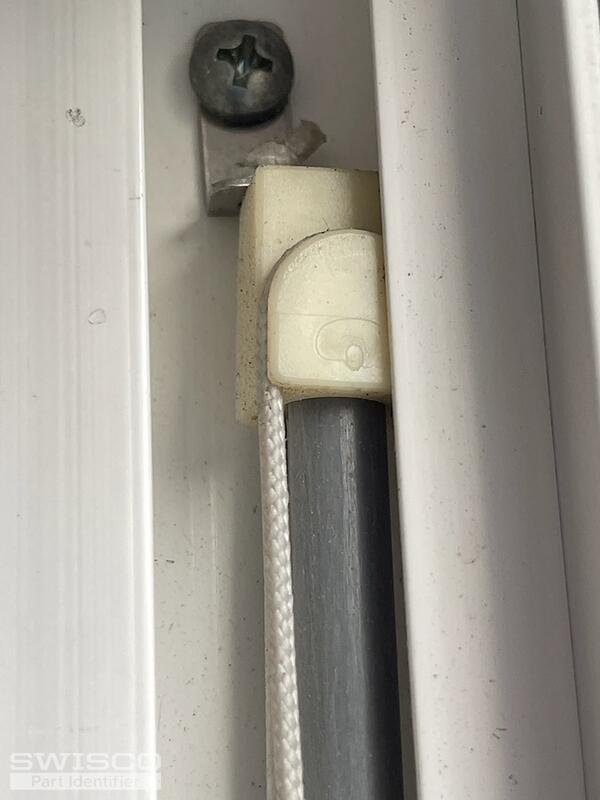

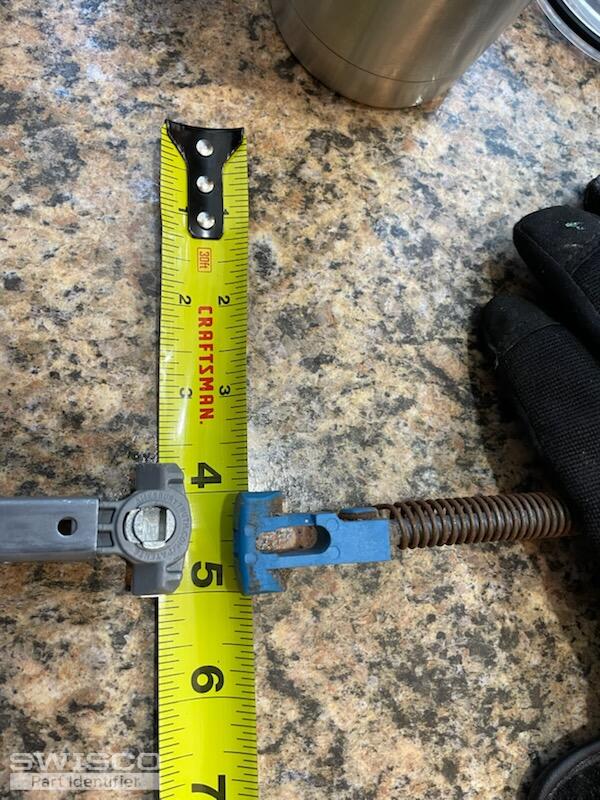

1862, 1914, 1911 various parts of a block and tackle balance.The Sashes these hold are 16 Lbs for the 26 1/4" piece and 17 Lbs for the 24 1/4" piece Measure ments are length of piece without the top plastic piece in place. I need two of everything for each length.
Sold home just trying to make sure everything works.

Paul · Accepted Answer

Thanks for reaching out to us. For the first photo, you will need the S900-28 with the red tip option for a 19-pound sash.

For the second photo, the 26-243 and 26-244 appear to be our closest matches, but they don't have a curved tooth like your old one, so we can't promise a direct fit. Review the specifications and see how they compare with yours.

For the balance in your last three photos, you should be able to use the S795-26 with the 26B stamp, as long as the spring diameter is 1/2", for a sash weighing 11 to 17 pounds. For the other window, see the S795-24 with the 24C stamp for a sash weighing 17 to 22 pounds. You will also need to change the pivot bars to the 26-021 for the new style balance.
