Needed new Channel Balancers

A home owner from Coolidge Arizona says:

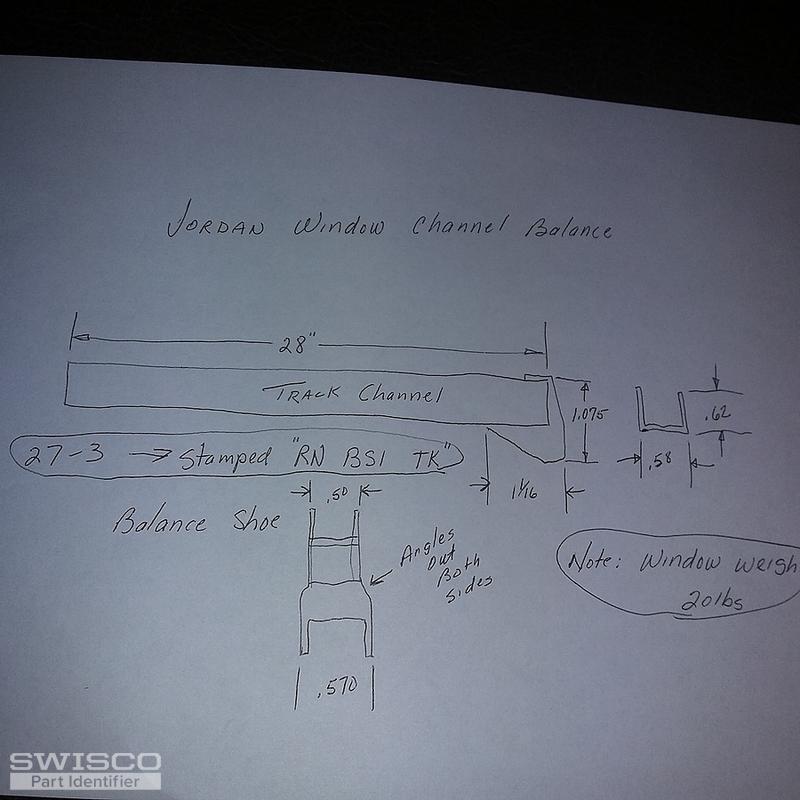

I included a hand print of an old balancer. It looks like it might be your 28 series 351 channel. But the window sash is 20 lbs exact so it might be either the "2730" or the "2740" to cover the window weight. I live in AZ so these windows don't get opened so when I needed to, the window balancers kinda fell apart. I don't understand these seem to float in position. When I open the window they come apart again. The spring and cable systems are very tight since they are old. It allows the cable to come off the clip in the hole and when I open window they fall out. The window is exact dim on both ends as well as height. These are for a Jordan window. I also need instructions on how to assemble together please.
Thumbnail of the uploaded file named 20210203_190359.jpg
Thumbnail of the uploaded file named 20210203_190452.jpg
Thumbnail of the uploaded file named 20210203_190546.jpg

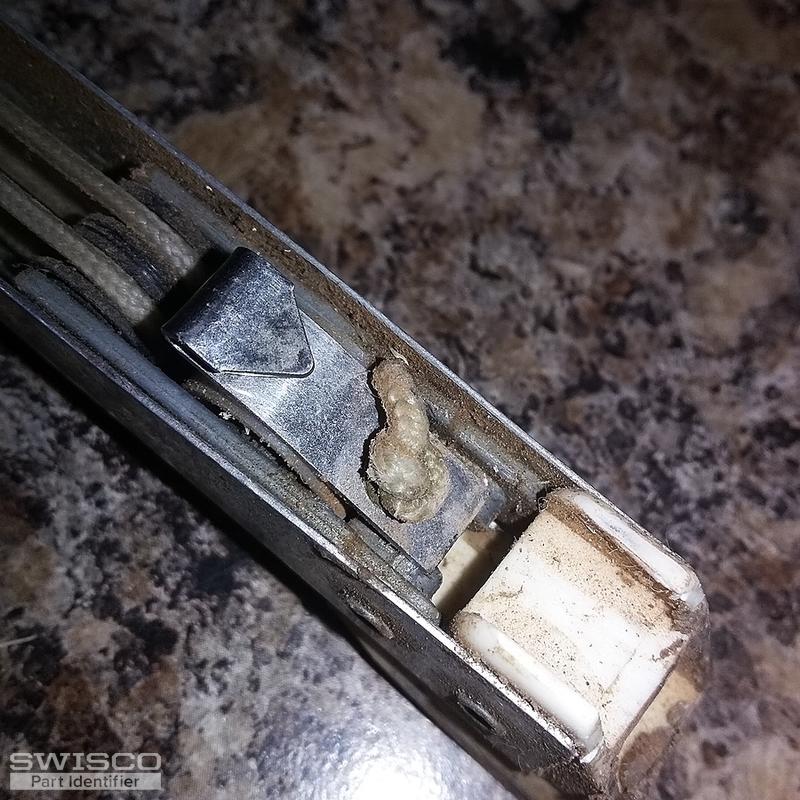

Thumbnail of the uploaded file named 20210203_190620.jpg
Thumbnail of the uploaded file named 20210203_205014 (1).jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

It looks like you have either our S351-28, with a 15-002 bottom attachment, or S390-28, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. Your 2730 stamp indicated that you would need a 2730 spring strength option for your replacement balances but if the sash weighs exactly 20 pounds, I'd recommend using 2740 instead. It's possible that someone used the wrong spring strength the last time your balances were repalced.

We've also related a few videos to assist you. Thank you!

1
A home owner from Coolidge Arizona says:
Hello,
The 15-002 being 1.00 and the 15-001 being 1-1/8....mine is 1-1/16. So which would work with mine being 1-1/16?. I agree with tbe 2740 and its better weight capacity as long as the channel size is the same obviously.. its at 1-1/16 now but it lookes like the corners have been worn. So it must be the S390 with 1-1/8
Profile picture of Casey
Casey from SWISCO responded:

I agree, the bottom attachments of these balances have a tendency to wear down a bit over time, so as long as it measures over 1" deep, the S390-28 should do the trick.
