Needing a replacement for this

A quick learner says:
The one on the outside had a handle that went down to the hole below it. I didn't see anything exact on your site offhand though.

Just this:
https://www.swisco.com/Black-Handle-Set/pd/Replacement-Storm-Door-Handles_Locks/40-032
(no key on the outside)

and this:
https://www.swisco.com/Black-Handle-Set/pd/Replacement-Storm-Door-Handles_Locks/40-034

Although both of them show the handle facing the opposite direction (both have an aluminum color that'd fit), the only one with a lock on the outside is black only.

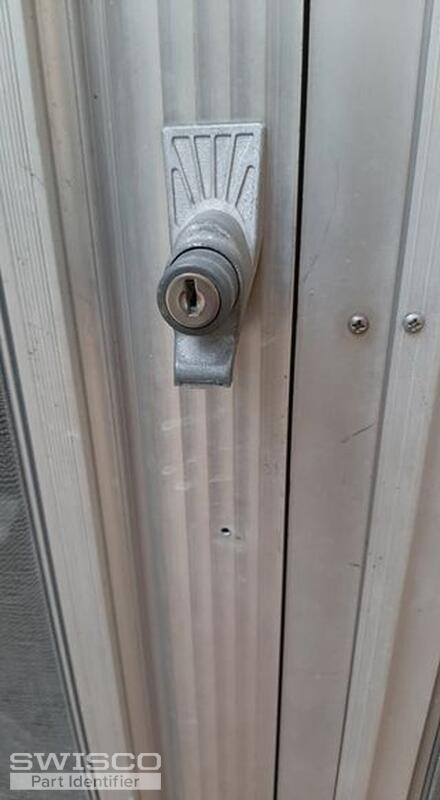

Thumbnail of the uploaded file named image_2021-11-09_133422.png

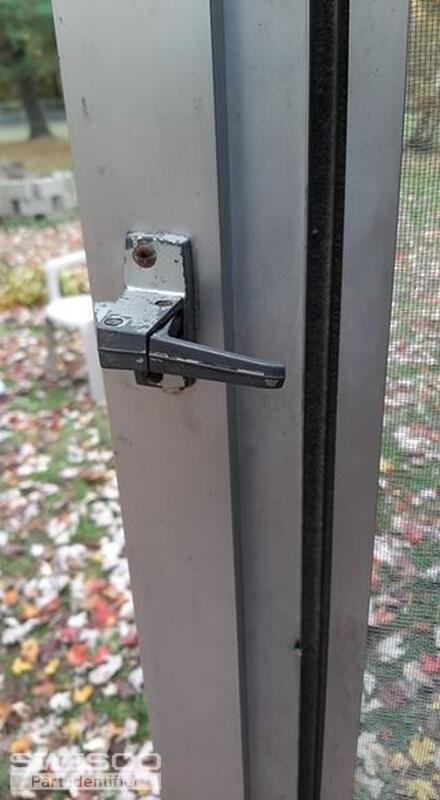

Thumbnail of the uploaded file named image_2021-11-09_133444.png
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Thanks for posting. Your storm door handle set with the inside "ZD" handle is no longer available. Your hole center locations are at 1-3/4". You picked out the the 40-032, but those hole centers are at 1-1/2" on center. Your could use the 40-033 along with the inside handle 40-117 which matches your inside ZD style handle. Your could also use the 40-034 which has a inside handle similar to yours and it comes in the aluminum finish. Not sure if either of these handles will match that lower hole for the bottom of the "Pull" handle. Two other suggestions would be the 40-152 and the 40-215. Both of these handles have an inside handle similar to yours and are a "pull up type". Take a look at the handles suggested to see which one you like the best.

A home owner from Flossmoor, IL says:

I have a Sears Storm Door with the markings 10150182, 61-27190-01, 656-651-93270, and 65193-027 that has a broken handle which was black. I can only find handle and latch assemblies combined, but for doors that are 1 1/4" inch thick. This door is 1 5/8" thick. Any ideas as to what would at least put an exterior handle back on the door, i.e., can I use the old latching parts with a new handle, and do you have one?

Thank you,

Kevin

Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

I believe you could have had the 40-043 handle set, which was used on Sears storm doors. We no longer carry this handle, but we do carry the 40-130 and the 40-131 which have the same 1-3/4" mounting hole centers and can be used on storm doors up to 2-1/4" thick. Also take a look at the 40-058 and the 40-177 handle sets with a keyed deadbolt. I think these are all worth considering.

If you have any doubts, feel free to upload some photos for us to review.
