Needing parts

Home Owner from Glendale Arizona

Jan 26, 2021 2:56 pm

Good day,
I purchased this "old"door to repaint and hang. Not sure whatparts are needed. I want all new ones.
Can you help?
I will be submitting an order for parts on a different type of door but I know what I need for that one.?

3 user uploaded images

7 Replies

Tom from SWISCO

Jan 27, 2021 12:04 pm

I think we can help, yes. Before I recommend anything, can you confirm the diameter of the pin? I just want to make sure we can get something to fit in your door properly.

Home Owner from Glendale Arizona

Jan 27, 2021 6:44 pm

3/16..? One pin on the bottom that has the spring measures 4.5 in. In length, there are two other pins at the top with springs measuring the same 4.5. in length. The other pin on the bottom has threads on it and that measures 5 in. in length.

Tom from SWISCO

Jan 28, 2021 11:32 am

Thank you. We don't have anything in this style that measures 3/16", unfortunately. Let's try this another way: do you have the tracks for these doors? If so, may we see the pivot block in the track?

Home Owner from Glendale Arizona

Jan 28, 2021 6:34 pm

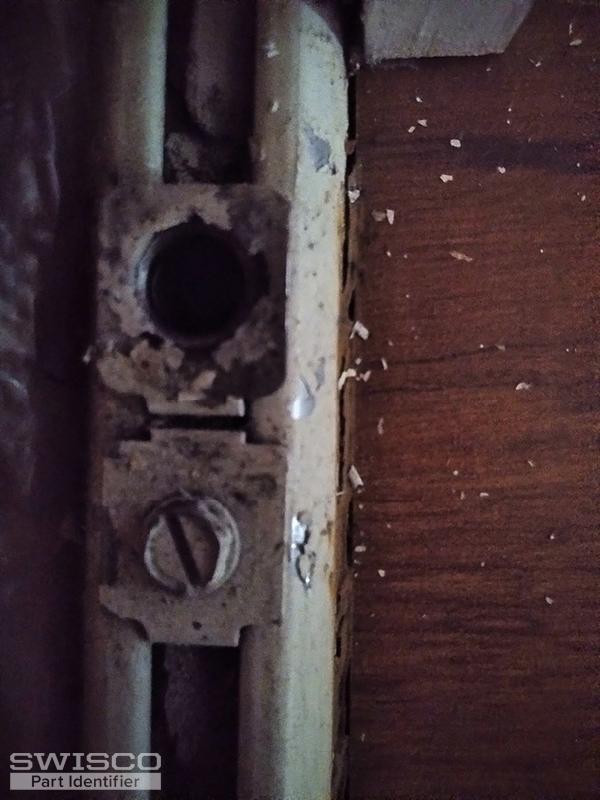

Here is a picture

1 user uploaded image

Paul from SWISCO

Jan 29, 2021 2:01 pm

The track you show is a Slimfold door track like our 21-401, which uses a 21-200 pivot bracket. So I would go with a 21-002 bottom corner threaded pin and 21-007 for the other guide pins. You might need to keep the the 21-149 grommets in the door holes to keep the pins aligned.

The adjusting of the door, which helps with squaring it up and performance, will be done with the bottom corner adjusting pin, 21-002. I also pulled up some media guides to help direct you.

Home Owner from Glendale Arizona

Feb 10, 2021 5:09 pm

Thank you, I will order.
