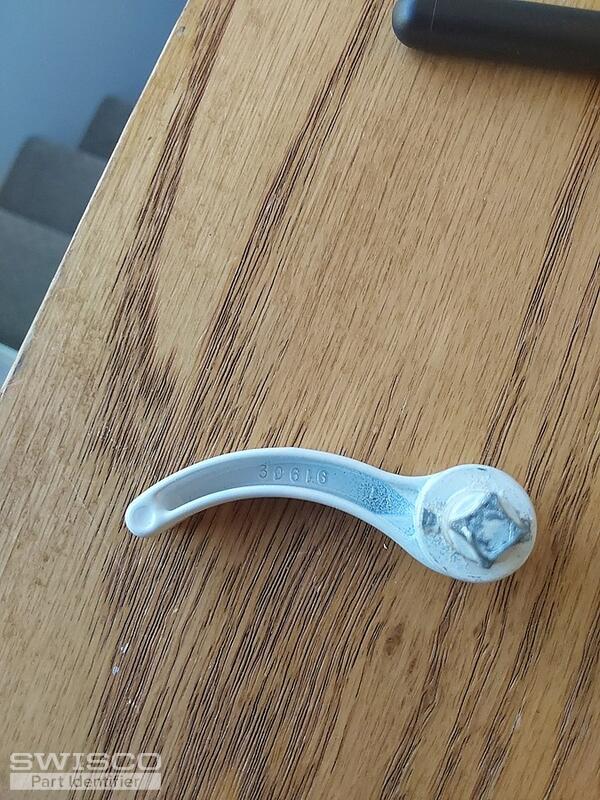

New Camlocks , casting # on handle 30616

A home owner from Helena says:

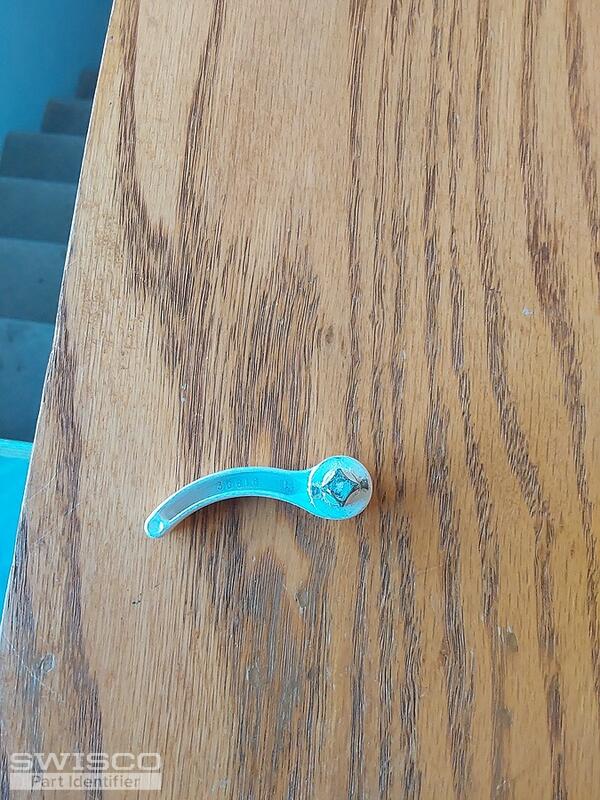

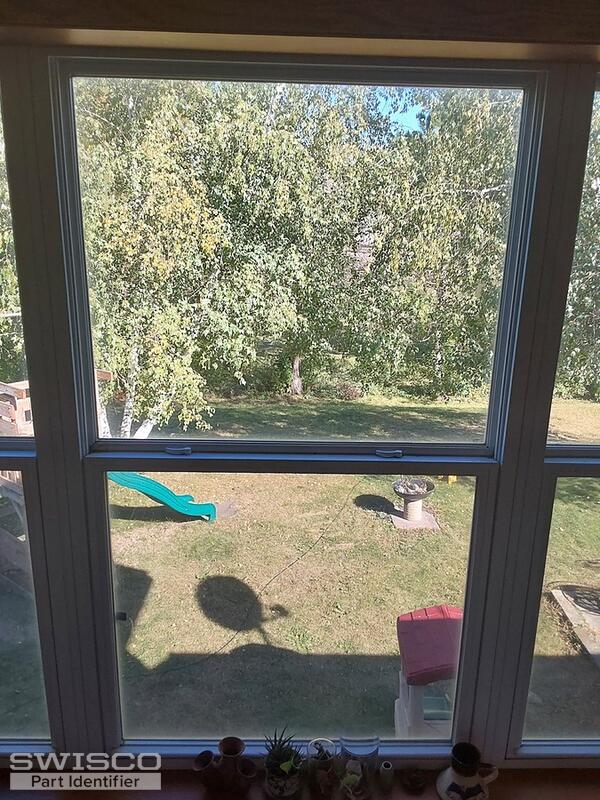

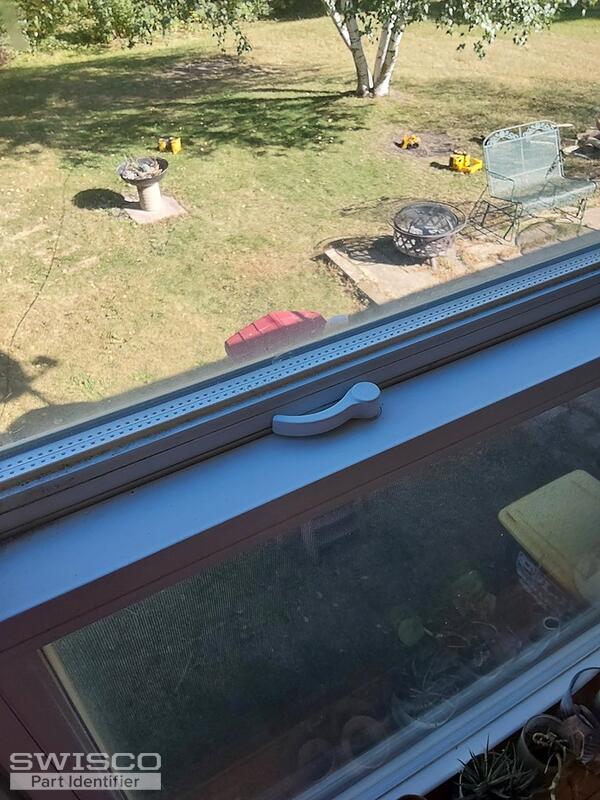

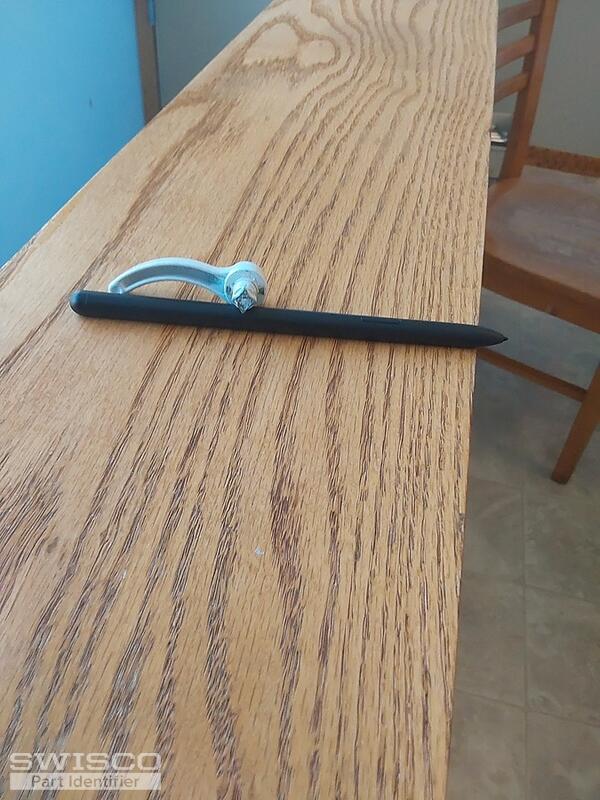

This handle is wearing out, the square part that actuates the camlock. It's not a bracket that bolts to top of sash, there is only the handle that goes down to camlock. Need to replace whole mechanism. Also need to know how to remove window to replace or fix. Trying to find handle, for camlock on window. Can't find window manufacturer. Handle goes into frame, on top or outside of frame, doesn't bolt to frame there. Also wanting information on how to remove the windows.

Thanks Guy

Thumbnail of the uploaded file named 20220929_151721.jpg
Thumbnail of the uploaded file named 20220929_151710.jpg
Thumbnail of the uploaded file named 20220929_151701.jpg
Thumbnail of the uploaded file named 20220929_151813.jpg
Thumbnail of the uploaded file named 20220929_151748.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

I suspect that you may be looking for our 90-294 face-mounted window lock shown in another customer's discussion here. Take a look and see if the specifications shown on our product page could work for your repair. Thanks for posting!

A home owner from Helena says:
On your 90-294, does the handle come out? If so is it square on the bottom? Is the handle sold separately?
Profile picture of Casey
Casey from SWISCO responded:

The 90-294 handle is not designed to be removed and, unfortunately, it is not available separately. I'm sorry for the inconvenience.
