New Sash Balance Springs Needed

Quick Learner

Jun 28, 2025 3:16 pm

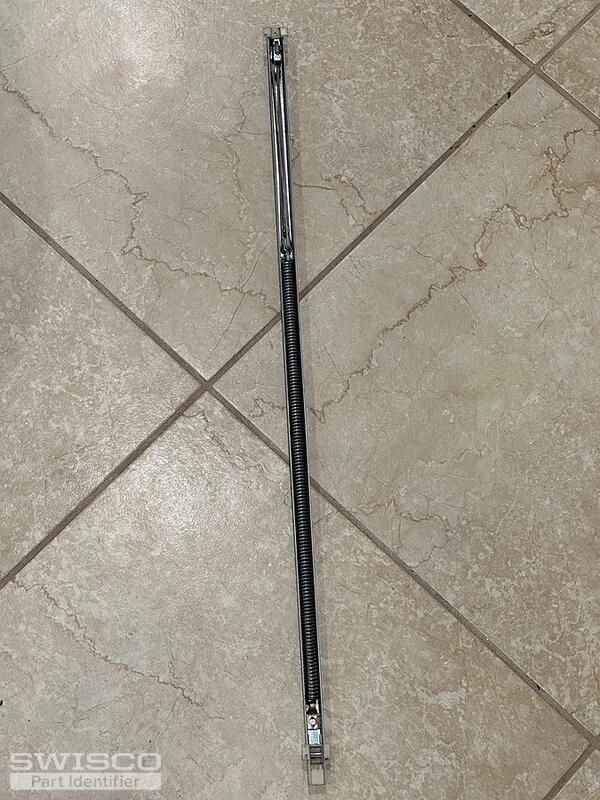

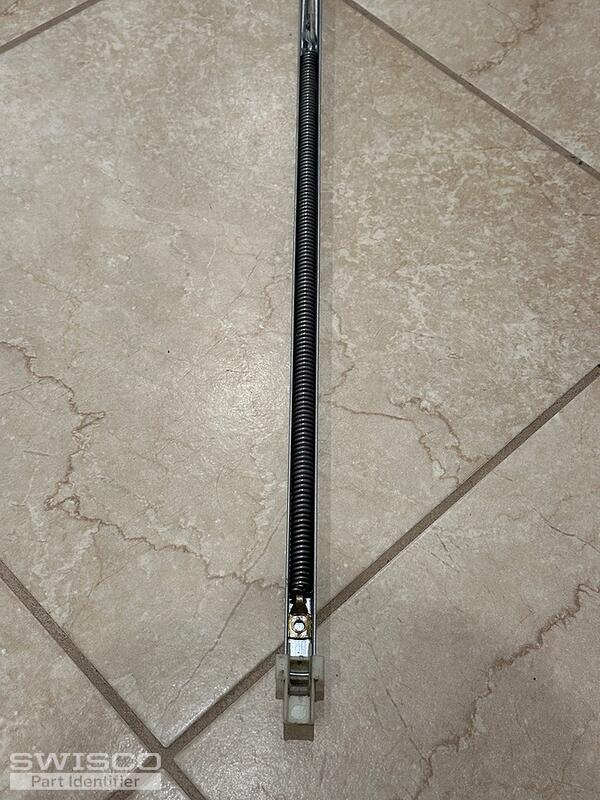

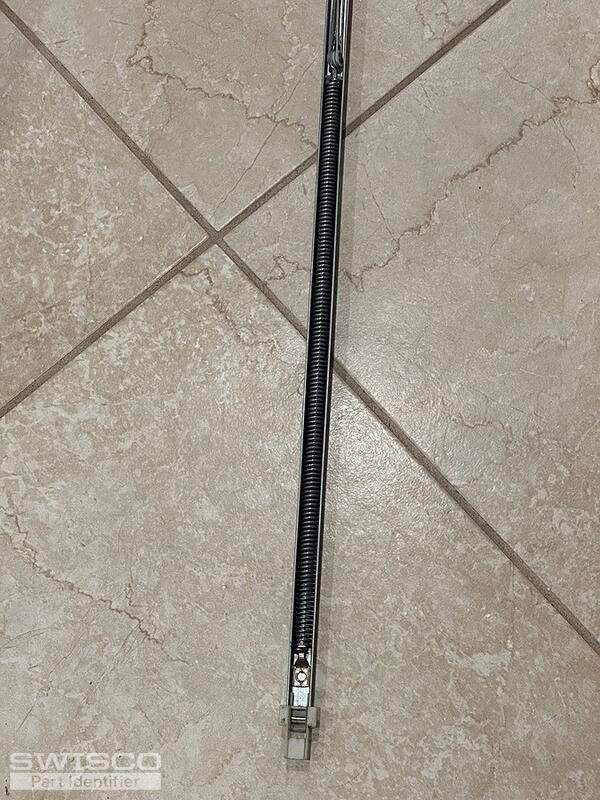

Hi, we're looking for a sign of replacement sash balances. The overall length of the metal portion is 27 inches, and it is stamped 26 4 CW CMC 10. Please let me know if you can assist, thank you.

5 user uploaded images

4 Replies

Bob from SWISCO

Jun 28, 2025 5:09 pm

Hi there. I am sure we can replace this channel balance, but before we get too far, can you show me pictures of the 'guts' or underside of the metal channel? Some balances like this have a special configuration we must account for. Once we know whether or not that is the case here we can proceed. Thanks.

Quick Learner

Jun 30, 2025 11:24 pm

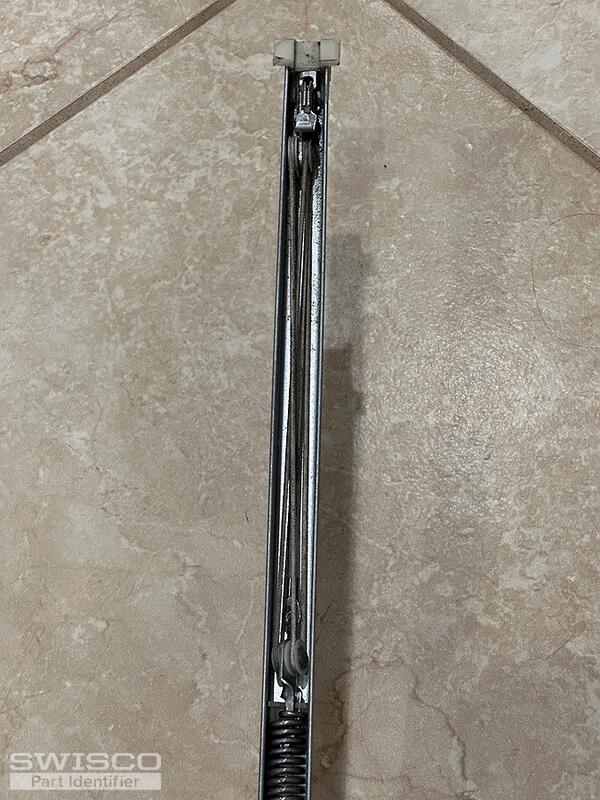

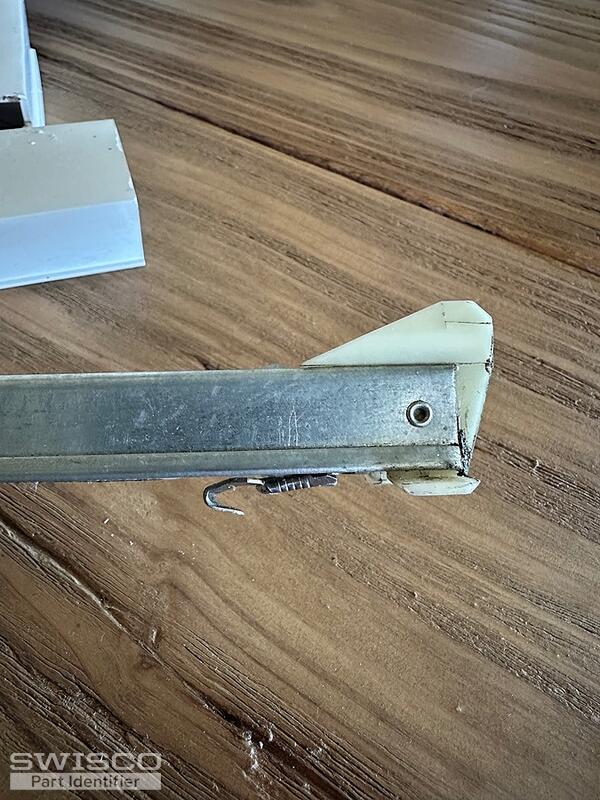

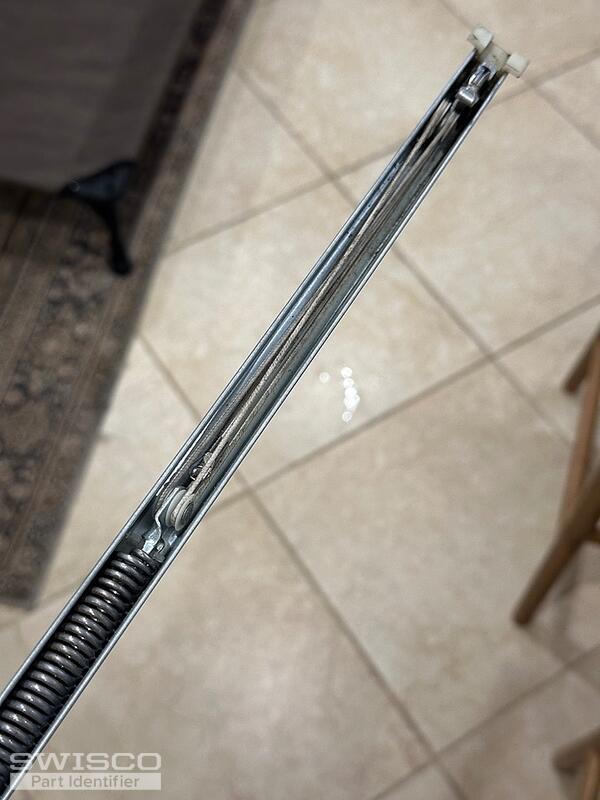

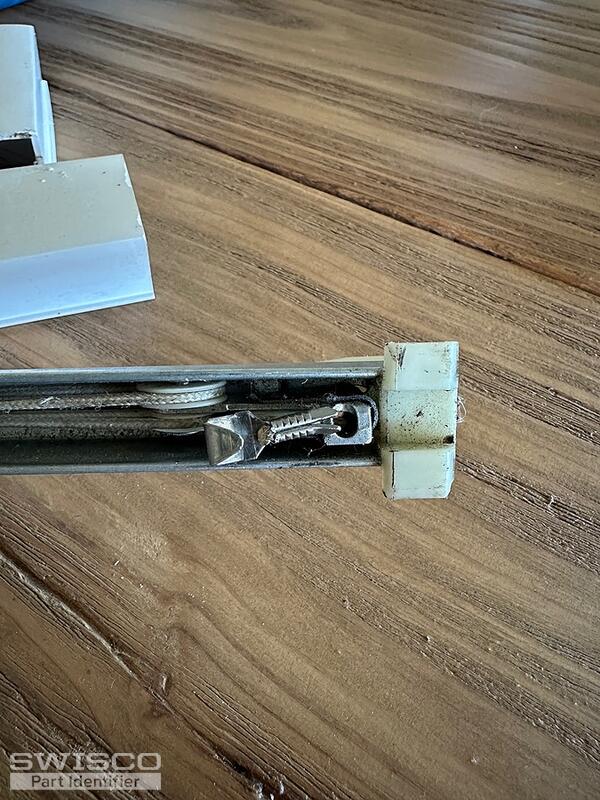

Hey Bob,Thanks for the quick reply, here's a few more photos of the guts. Let me know if you need any additional pictures.
Appreciate your help. Thank you!

5 user uploaded images

Bob from SWISCO

Jul 2, 2025 4:08 pm

Thanks for these photos. This is likely either an S380-27 or S385-27. The only difference between these two channel balances is the 'depth' of the bottom nylon shoe. See below. Measure your old balance's shoe to see what matches best. For a stamp option choose 2640.

Comparison of the S378, S380 and S385 balance shoes.
