New Single Hung Window Balance - Windford window

Question

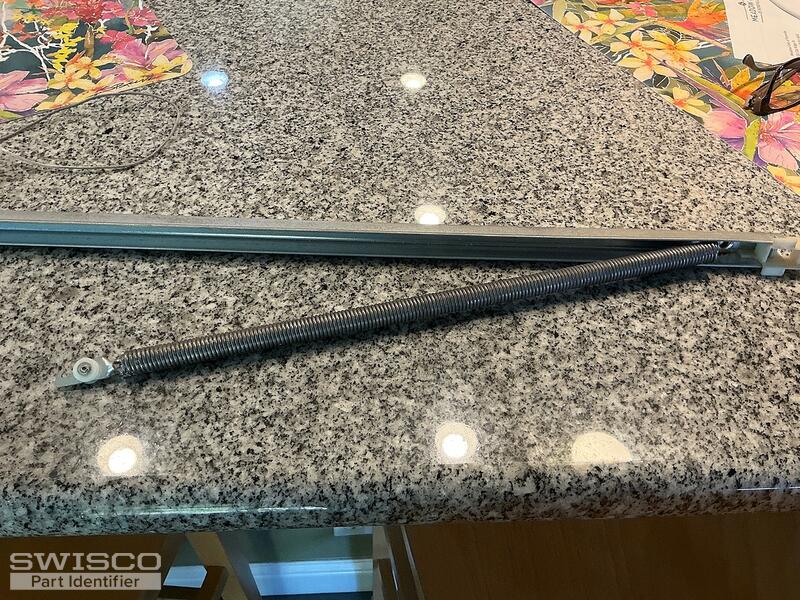

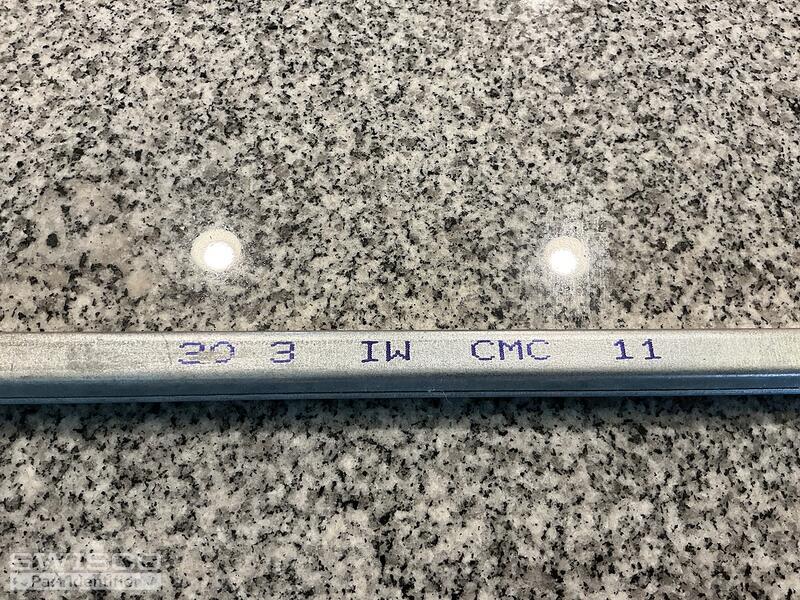

I am looking to replace one of the window balances as mentioned in the subject of this email. The length of teh metal C-channel is 31". I'm hoping you can tell the weight of the window from the markings on teh original balance.

Thank you.

Jim

Thank you.

Jim

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either the S380-31 or S385-31 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 3030 spring strength options for your replacement balances based on your stamp code, which will support a sash between 16-23 pounds. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
