New balances for Aluminum Single Pane Glass Window

A contractor from West Chester, Pa. 19380 says:
April 10, 2020

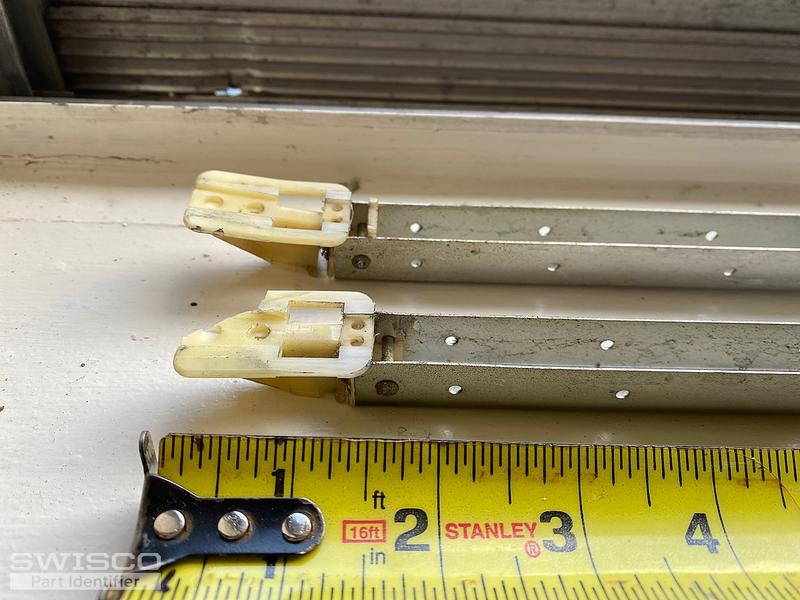

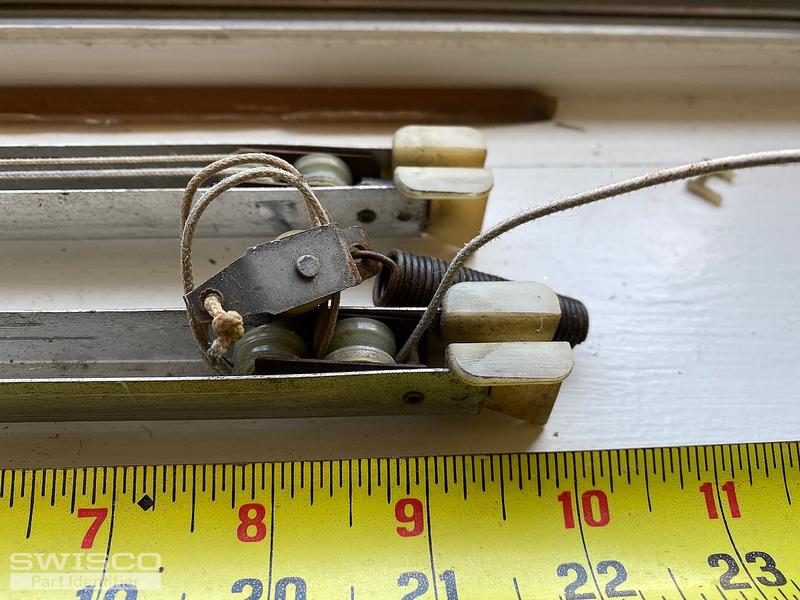

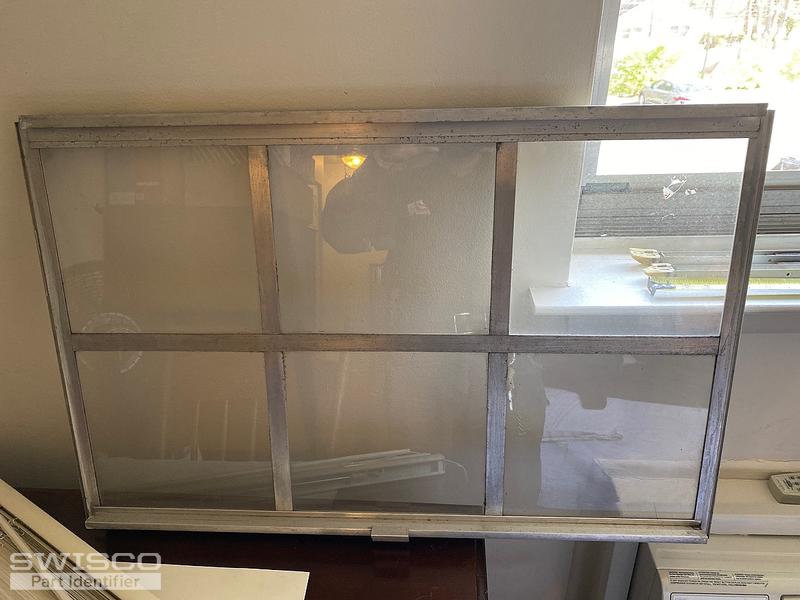

Aluminum single hung, single pane glass. Circa 1968ish. Balance 1/2" wide. Sash is 34 1/4" wide X 22" Tall. Need balances
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Tom
Tom from SWISCO responded:
April 14, 2020

Thanks for posting. I recognize this balance, but it will have to be a custom order due to its configuration. I believe you need a 19" long metal channel with a 19-010 fitting installed at the top and 15-007 fitting installed at the bottom. Does that look good to you? We'd also go with an 1820 option for your 9 pound sash.

If that setup sounds good to you, please let me know how many you need. Once I know the quantity, I'll email you an order link and price quote for that many. This will allow you to place your order.
A contractor from West Chester, Pa. 19380 says:
April 20, 2020

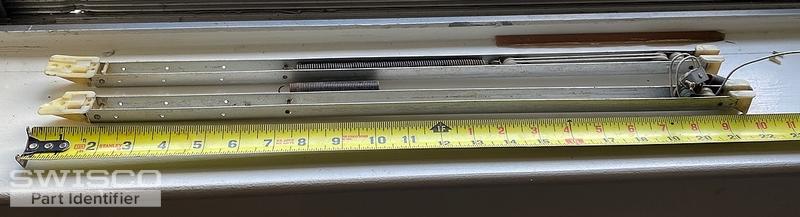

The metal channel is 20" long. The 19-010 is correct, the 15-007 looks right but doesn't show dimensions . I need 1 pair. Send me what I need to order. How long does it usually take to get them?
Profile picture of Tom
Tom from SWISCO responded:
April 21, 2020

We do have dimensions on the 15-007 store page. I will also post them here for your convenience. Assuming everything matches up, I'll email you an order link and price quote right now for two balances according to the specifications I went over in my prior post.

We should have everything in stock, so delivery time will depend on the shipping option you select during checkout.

Dimensions for 15-007
Dimensions for 15-007
1/2" Top Sash Guide, WT
1/2" Top Sash Guide, WT
18-007
$1.97
Channel Balance Shoe, Pan Am
Channel Balance Shoe, Pan Am
15-007
$1.54
Channel Balance Top
Channel Balance Top
19-010
$1.85
