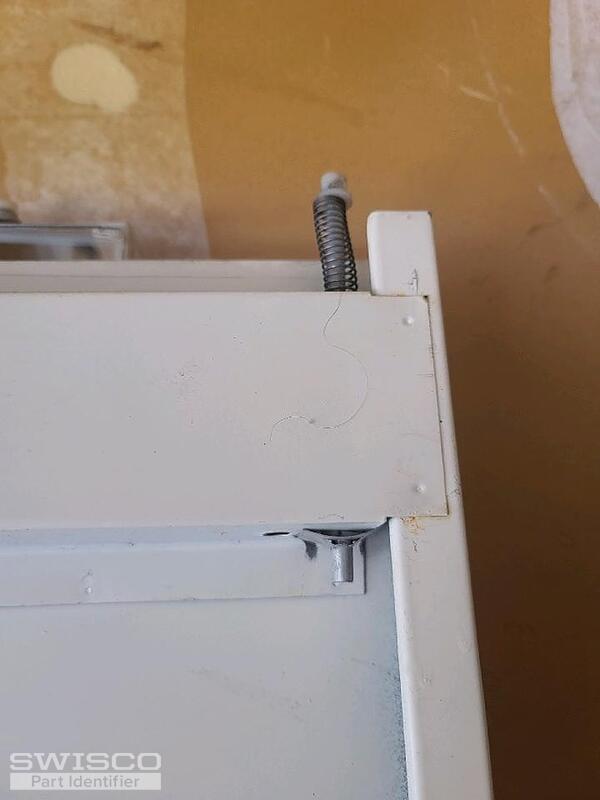

Bifold mirror doors these are the 2 openings. Are new tracks are available for these doors? We're switching to white marble tile floors and we want to, if possible, embed the the track into the floor.
Two openings:

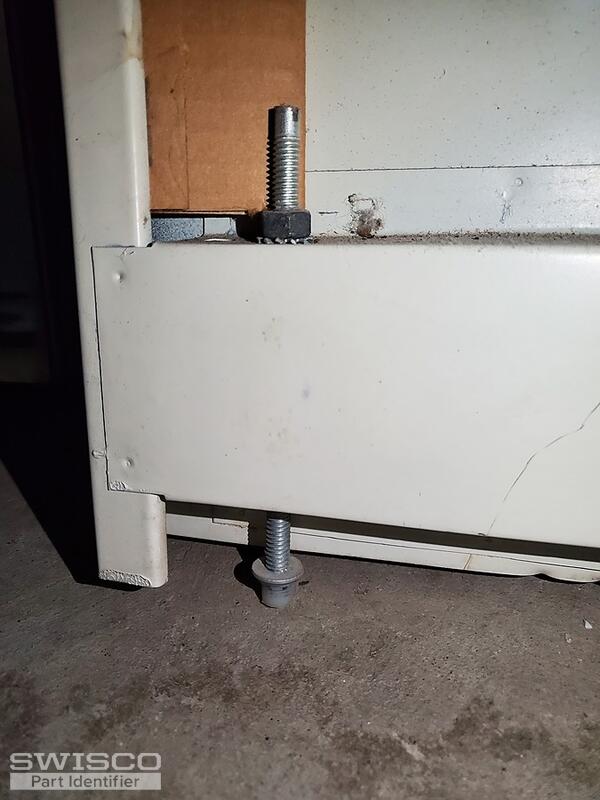

After measuring our pins the adjustable threaded anchor pin is a 5/16 bolt and it is 5 1/2 long all other pins are 1/4 x 5 1/2 with a 3/8 cap.
Thanks Tammy
|
Tom from SWISCO responded:
December 6, 2021

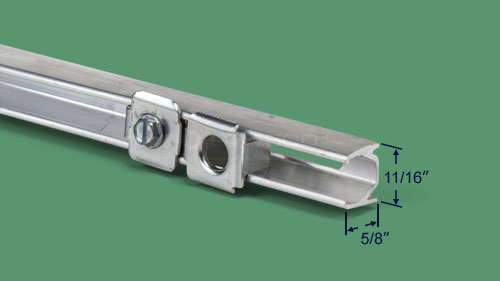

Thanks for reaching out to us, Tammy. We only sell two types of tracks: see our 21-401 and 21-450 for examples of each style, though we carry other lengths in each case. The thing is, I'm not sure if these will work for you or not. The 21-401 is 11/16" wide and 5/8" tall, while having a bracket that accepts 3/8" diameter pin caps. Meanwhile, the 21-450 is 1" wide and only 1/2" tall, with a bracket that accepts 1/4" diameter pin caps. Since your pin caps are 3/8" the 21-401 is obviously the first choice, but it's very tall at 5/8". I'm not certain if you will have enough clearance with the new floors. That is one detail you will have to check ebfore purchasing.  |
