New parts
Contractor from TN
Oct 15, 2025 9:32 am

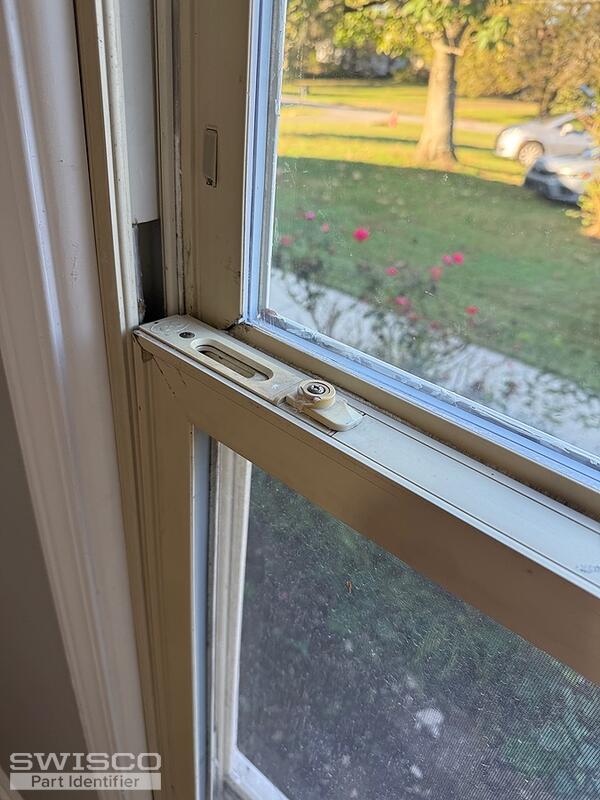

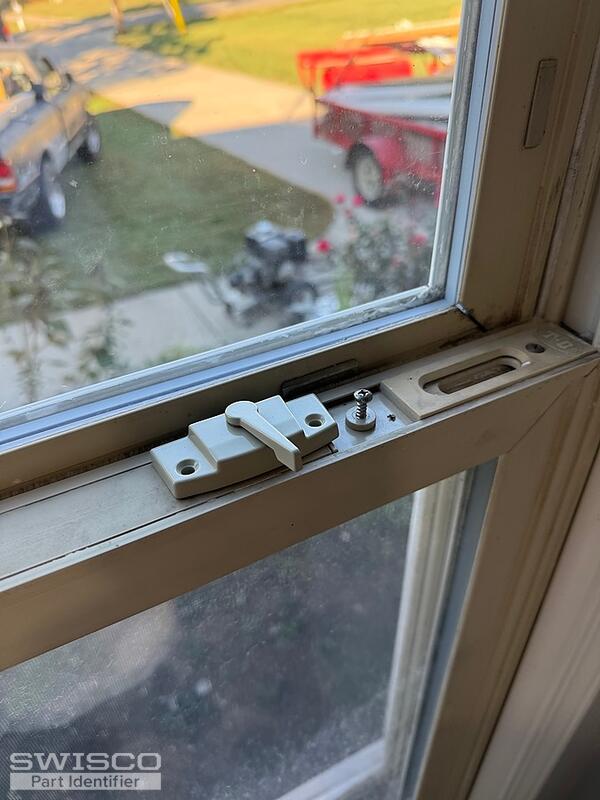

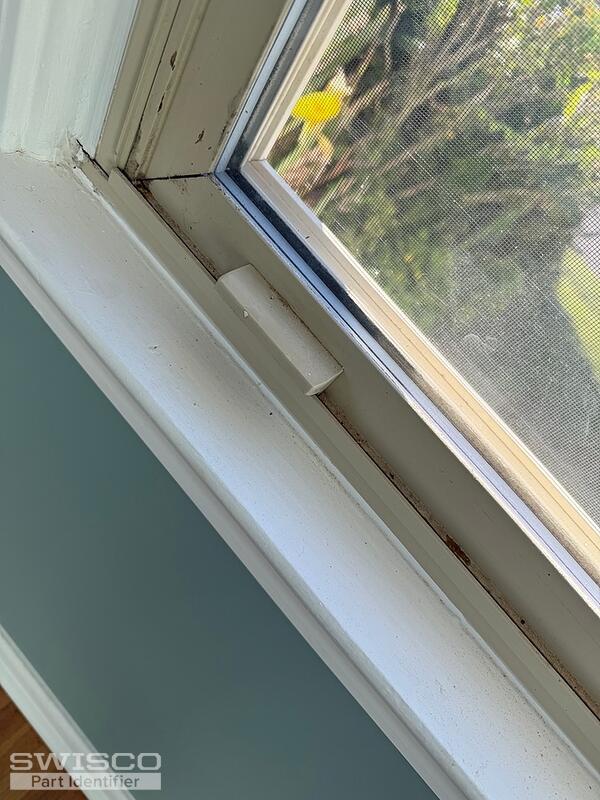

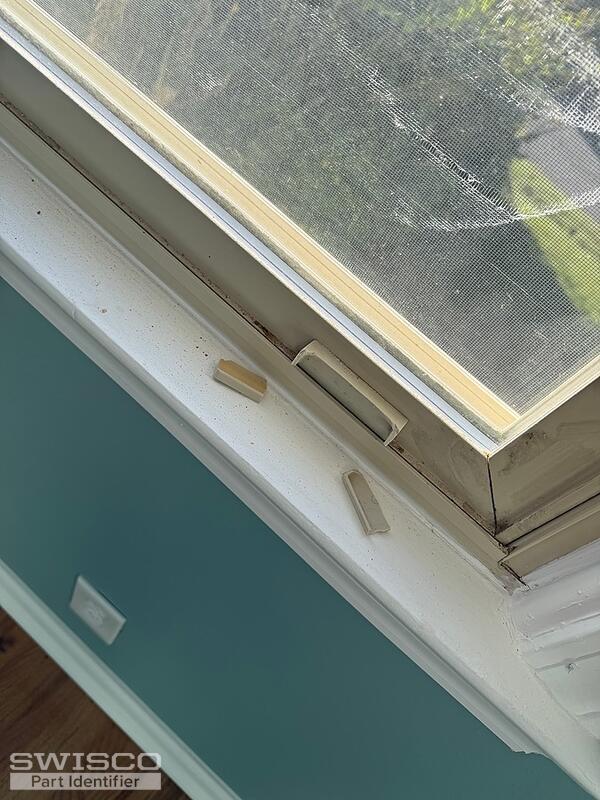

Looking to replace these window latches and handles to slide window open. Thermal Gard told me these are older than 1992 and to check with y'all.
4 user uploaded images
3 Replies
Quick Learner
Oct 15, 2025 10:12 am
Looking to find the latches and handles for these windows.
4 user uploaded images
Emily from SWISCO
Oct 20, 2025 2:36 pm
Hello there!
Thanks for reaching out to us. Take a look at the 26-147 Thermal Gard sash lift, along with the 90-133L and 90-133R locks.
As for the lock, the 90-278 (2-1/16" hole center spacing) and 90-274 (2-1/4" hole center spacing) are similar. The backset for each is 11/16". Review the specifications for each of the mentioned parts and see how they compare with your old hardware.
Alternate image for 26-147
DImensions for 90-133L
Alternate image for 90-133R
Dimensions for 90-278
Dimensions for 90-274
