Newpro pivot bar
Home Owner from Waltham MA
Mar 30, 2026 1:24 am
For Newpro window
3 user uploaded images
5 Replies
Emily from SWISCO
Apr 2, 2026 10:22 am
Thanks for reaching out to us. I'm afraid we don't recognize this pivot bar. Can you upload photos of the pivot shoe? That may help us narrow down some options.
Home Owner from Waltham MA
Apr 3, 2026 2:47 pm

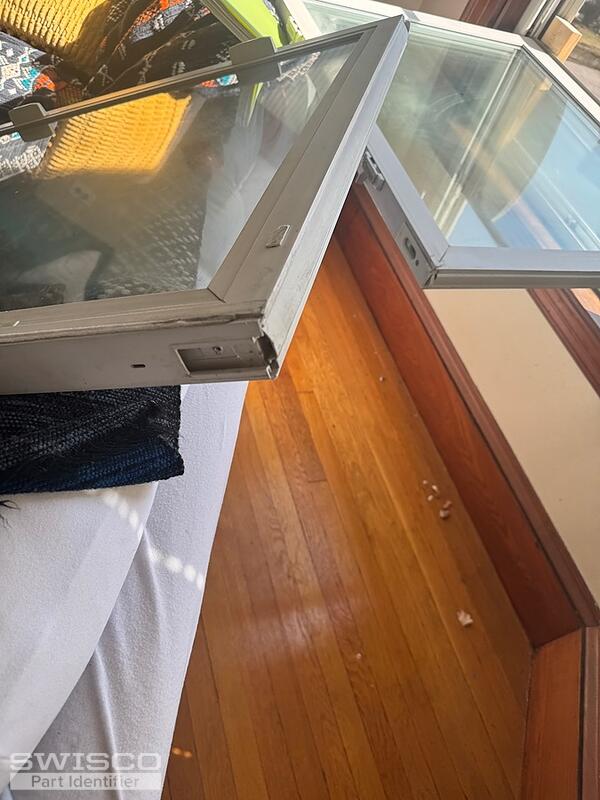

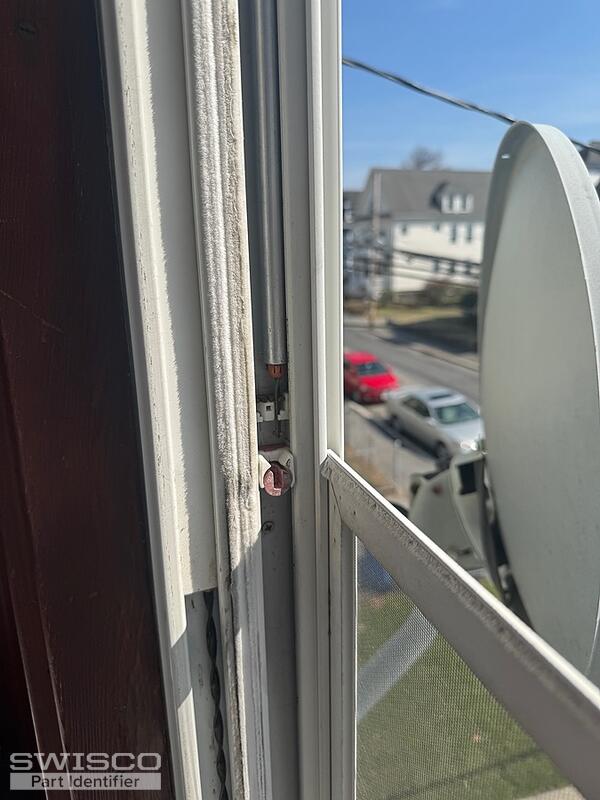

Here are pictures of the shoe and mount location of the pivot bar
2 user uploaded images
Home Owner from Waltham MA
Apr 6, 2026 4:32 pm
Any luck ?
Paul from SWISCO
Apr 7, 2026 8:10 am
We have identified your pivot shoe as the 15-048 and your handles as 26-147. These parts were also utilized by the Season All window manufacturer. Unfortunately, we could not locate your exact pivot bar, but you may want to consider the 26-262, which you might be able to modify to fit your sash. Additionally, we have the 26-201, which is a pivot bar used by Traco. Review the specifications for these parts and see what you think.
Alternate image for 15-048
Alternate image for 26-147

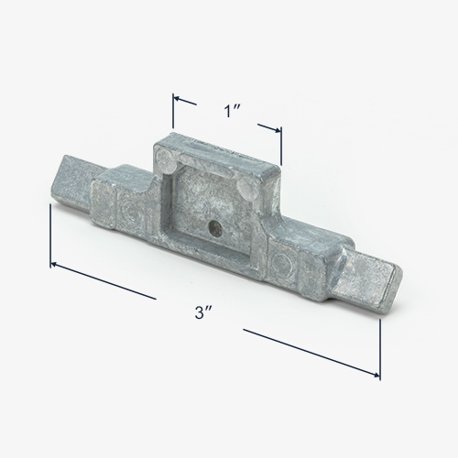

Dimensions for 26-262

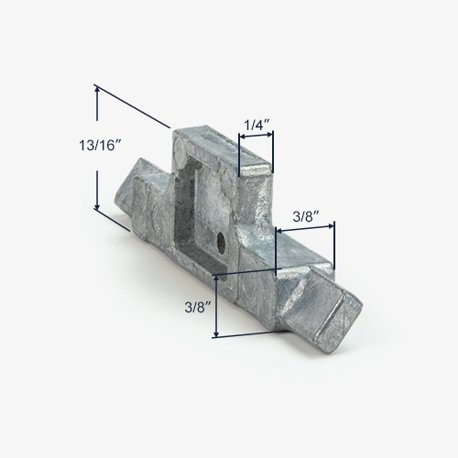

Alternate view of 26-262
Alternate image for 26-201
Alternate view of 26-201
