No-Tilt Window Channel Balance Part No?

A home owner from Lithia Florida says:

Hi. Need part number for no-tilt window channel balance. It has an imprinted label that says 3350 BE B.S.I. Its depth is 5/8" and length is 34". I need two of them for both sides of the window. Please see pictures attached for further information. Can you kindly help?

Ali

Thumbnail of the uploaded file named IMG_0662.jpg
Thumbnail of the uploaded file named IMG_0663.jpg
Thumbnail of the uploaded file named IMG_0665.jpg

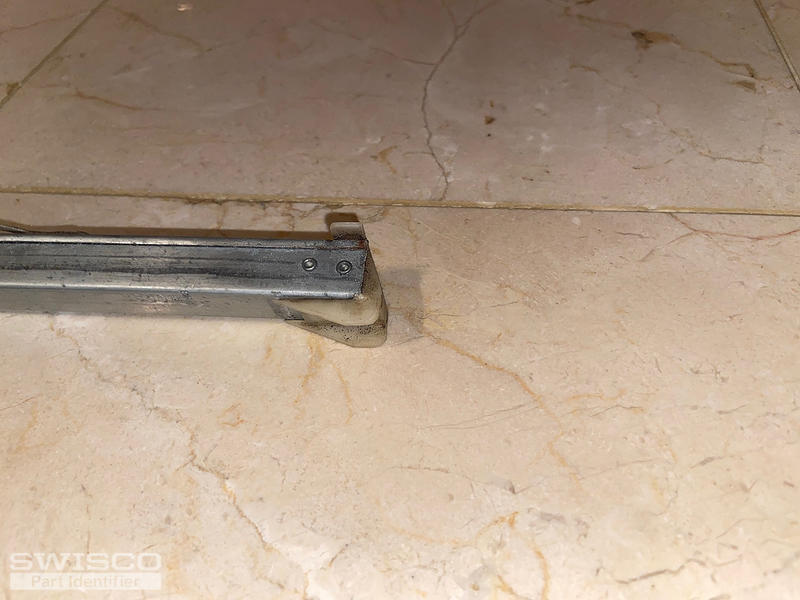

Thumbnail of the uploaded file named IMG_0667.jpg

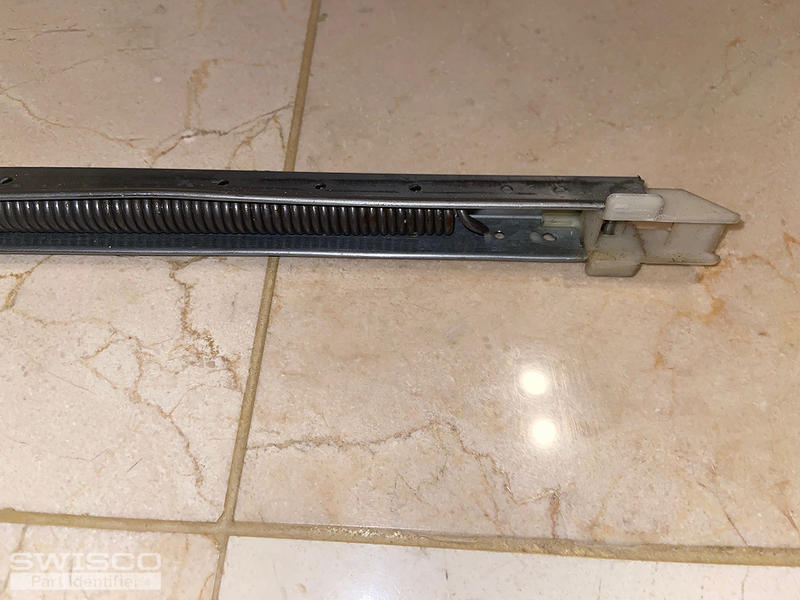

Thumbnail of the uploaded file named IMG_0670.jpg
Profile picture of Casey
Casey from SWISCO responded:

With this combination of attachments, you could have either an S380-34 or S385-34 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 3350 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.
