Home Owner from Glendora, California

Feb 10, 2025 6:47 pm

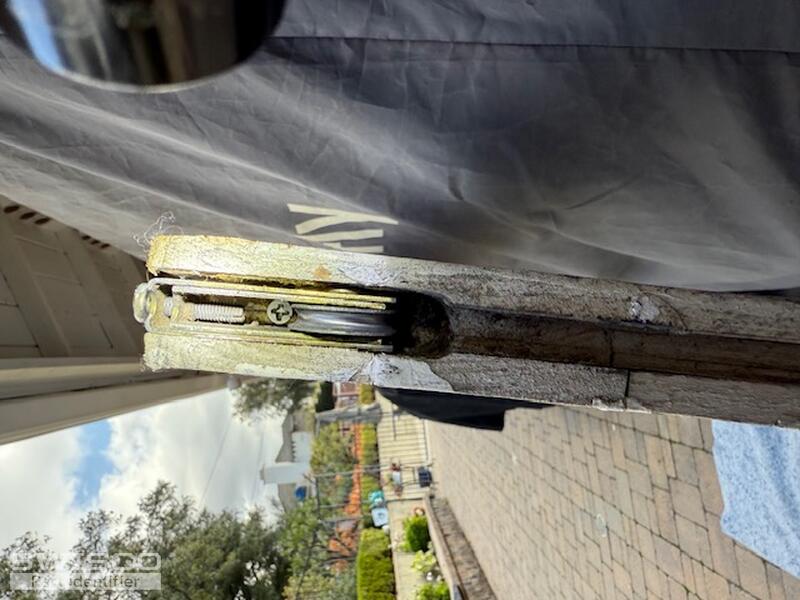

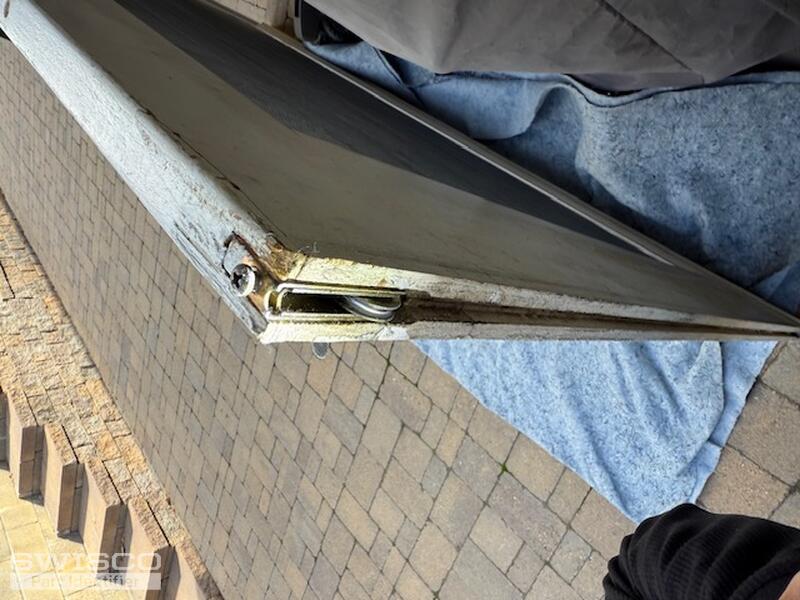

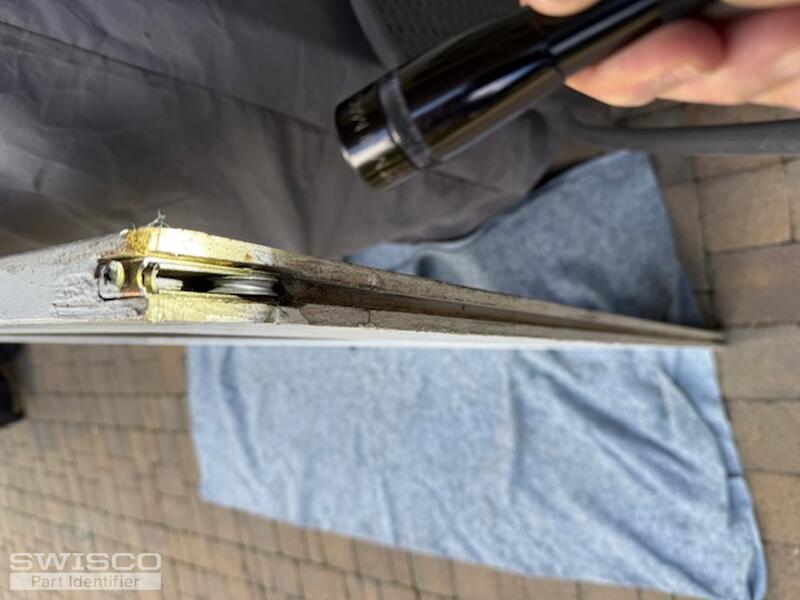

Need to identify this particular metal roller which screws into the bottom of my wood sliding screen door. Thank you in advance for your assistance.

3 user uploaded images

6 Replies

Casey from SWISCO

Feb 11, 2025 12:17 pm

Hello,

We'd be happy to help but we would also like to see the front of the roller where the installation screw installs. That will help us narrow down your options. Thank you!

Home Owner from Glendora, California

Feb 11, 2025 1:43 pm

The roller is attached to the bottom of the door via one wood screw which is in the center of the roller. There is no attachment on the door side frame. The screw visible in the door frame area is to adjust the height of the roller. Thank you for assistance.

3 user uploaded images

Dave Sr. from SWISCO

Feb 12, 2025 1:23 pm

The 81-263 looks similar to your roller but the housing is thicker at 5/8". The 81-090 roller is thinner at 1/2" but it's open at the top of the housing with no place to install a screw to secure it to your door. Take a look and see if you could carefully widen your door frame to accept the 81-263. Another idea would be to replace the wheel with the 81-223. You might be able to reuse your same axle but we do carry an axle kit, the 81-310. Take a look at the suggested hardware and related videos to determine the best option for your repair.
