No markings on hardware

Quick Learner from Raleigh NC

Nov 25, 2024 8:55 pm

This is for a client of mine. I am sorry that I do not have more information. If you know what this is I will buy it. Thank you.

3 user uploaded images

7 Replies

Emily from SWISCO

Nov 26, 2024 10:52 am

Hey there!

The coil support shown here looks like the 15-181. This is used with the Series 190 coil springs and 15-180 pivot shoe. You'll have to check the spring band for a stamped number that indicates the weight.

Let me know if you have any questions!

Quick Learner from Raleigh NC

Nov 26, 2024 3:43 pm

You are awesome, thank you so much.

Emily from SWISCO

Nov 27, 2024 8:09 am

I'm very happy I could help! Good luck with the repair, I'm here if you need anything else.

Friend from Raleigh NC

Nov 27, 2024 5:13 pm

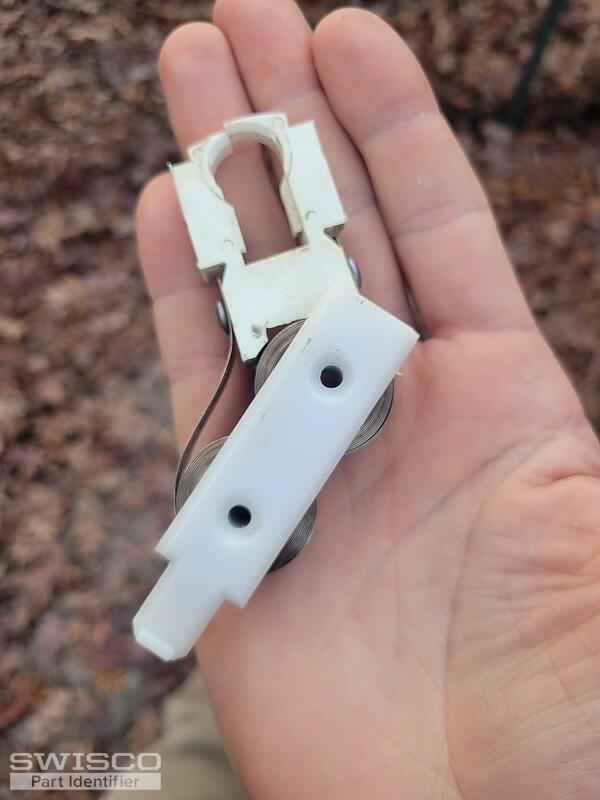

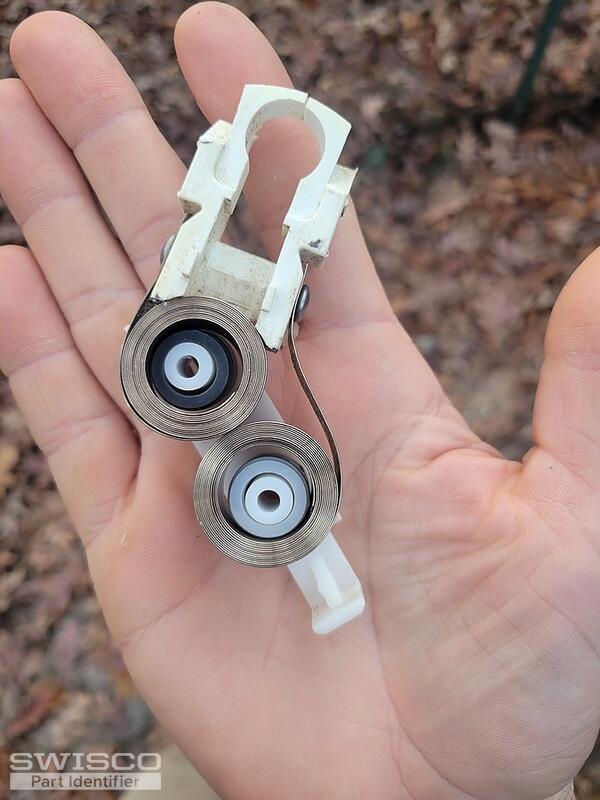

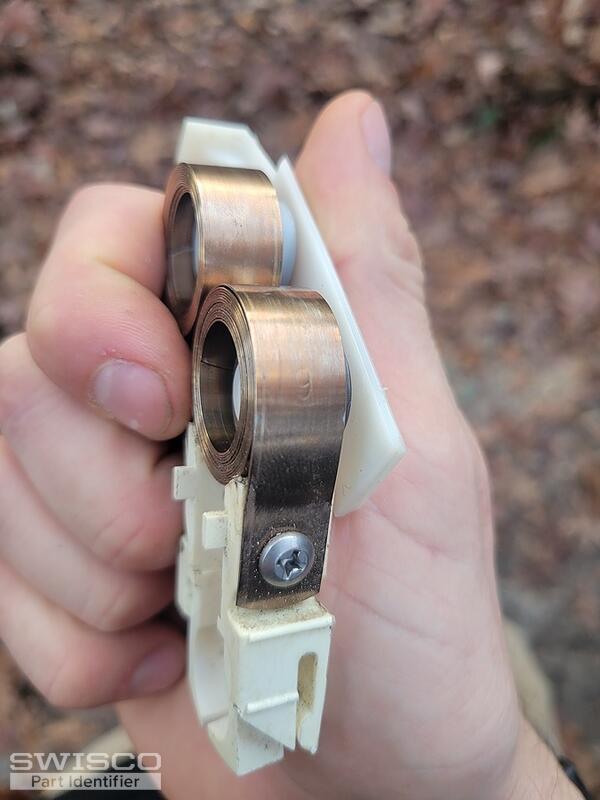

Hello, I removed the spring. I can only see a 6 or a 9 stamped on it. I can't tell which. Is there another stamp I am not seeing? Pictures attached. Thanks.

3 user uploaded images

Friend from Raleigh NC

Nov 28, 2024 8:28 pm

Oh wait I can just reuse these coils and order the pivot shoes. Thanks!

Emily from SWISCO

Dec 2, 2024 9:38 am

That's correct, you can re-use your old springs if they're in working shape!
