No numbers or markings visible on part.

Quick Learner from Atlanta GA

May 17, 2021 8:53 am

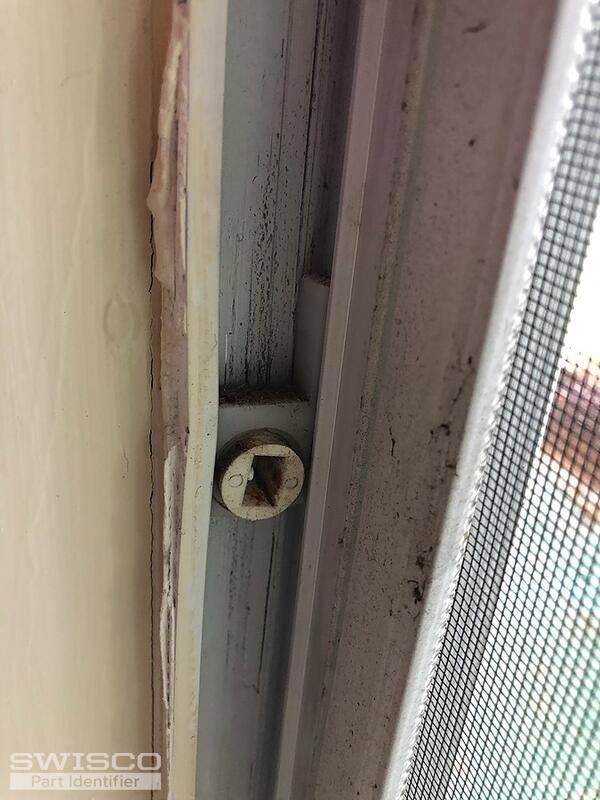

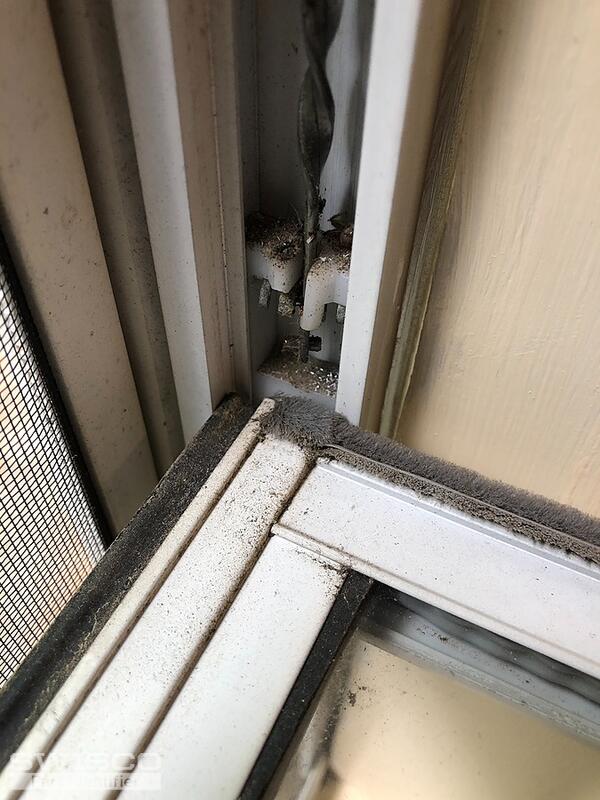

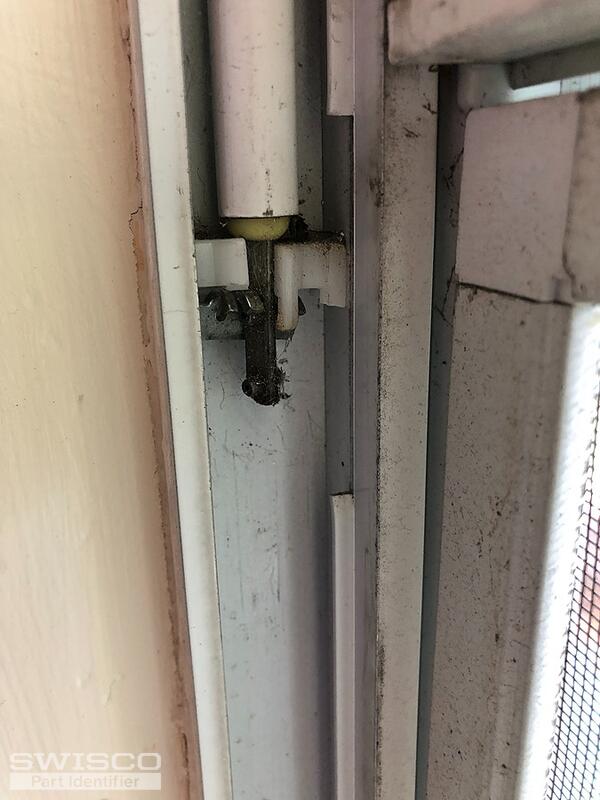

This appears to be a plastic part with a metal retainer to support the pressure from the spiral balance. Looking for several replacement sash cradles. Any ideas?

3 user uploaded images

4 Replies

Paul from SWISCO

May 20, 2021 10:16 am

Hello!

Your window parts came from a former manufacturer called Unique. Your broken pivot shoe is no longer available. However, if the width is 1-1/4" wide and 17/32" thick, you can use our 15-015 pivot shoe as a replacement. Take a look at the videos we've associated for you, you may find them helpful.

Quick Learner from Atlanta GA

May 27, 2021 7:04 am

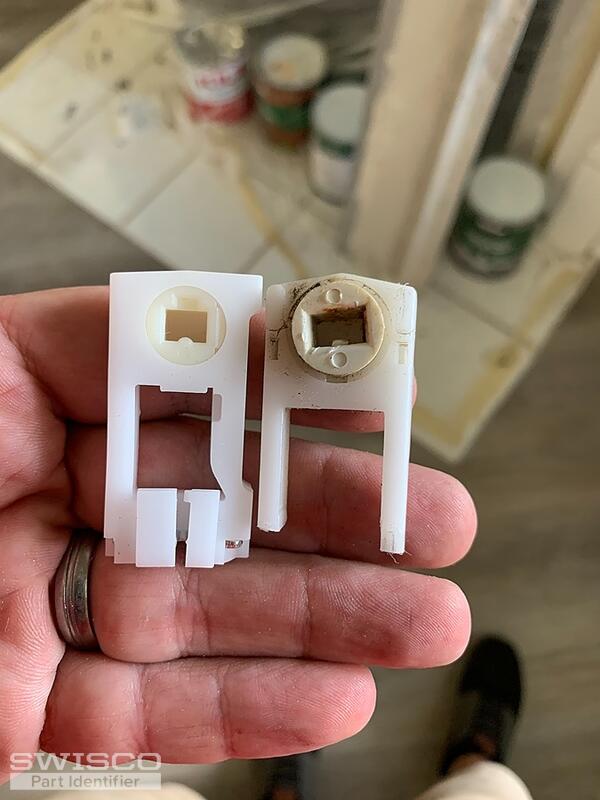

The Pivot latches arrived today and they are the correct size overall but the opening for the sash rod are too small. Any idea as to another one that has a larger opening for the sash rod. Attached is a photo of the old one and the new ones form Swisco. Let me know ASAP so I can order more.

Thanks, Wes

1 user uploaded image

Paul from SWISCO

May 28, 2021 9:27 am

Hi, Wes.

We have our 15-212 that measures 15/16" wide and 3/8" thick with a larger center cam that will accept 5/16" wide x 3/16" high sash pivot bar.
