No screws for screen door latch

Quick Learner from South Haven Mich
Screen door latch does not have screws to attach to slider. (I removed wood veneer cover and need a replacement for it too). How to remove this latch set see photos.
2 user uploaded images
5 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

It looks like you have our 83-122 or 83-123. There should be an installation screw behind that round Pella logo circle which should just pull out. Let me know if this helps.

Quick Learner from Eagle River Wisconsin
I cannot seem to pop off the Pella label to expose the screw to replace handle. Any ideas how to get it off without destroying it?
Tom
Tom from SWISCO
SWISCO
Expert

I'm afraid there aren't really any other tricks to it. I've always just wedged a small screwdriver behind it. I guess depending on age it could really be in there, but that's pretty much the only way. I'm sorry I can't give you a better answer. These really are only made to come off one way.

Handy Person from California

Folks,

I replaced the Pella Latch on my screen door today. I decided to forward some photos for reference by other Pella owners to review.

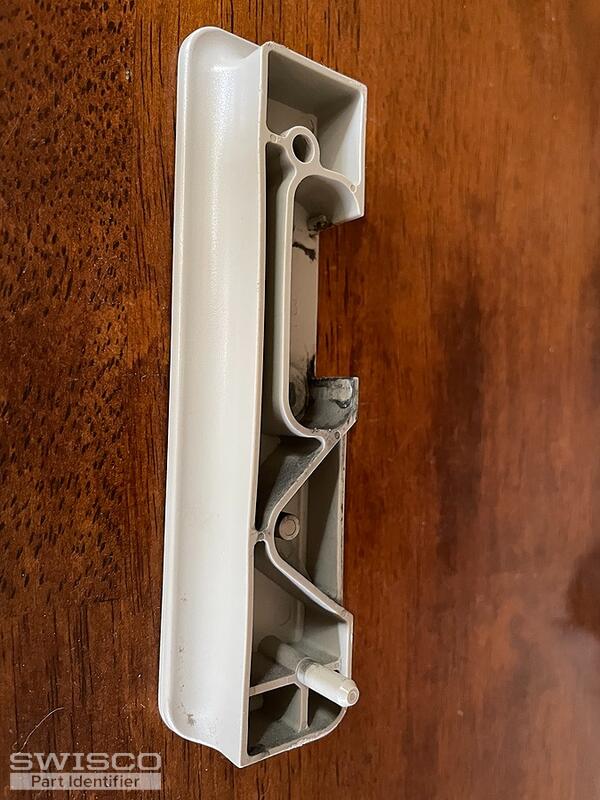

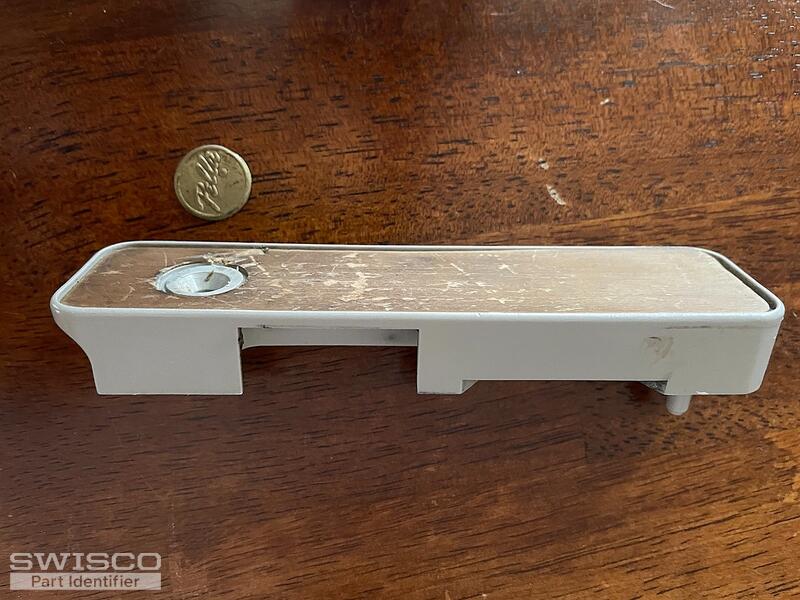

I used a very thin-bladed screwdriver (and a small hammer) to wedge the round Pella Logo cover plate from the interior side of the door. This did not take a lot of force, as the cover plate is thin, and you can wedge the screwdriver between the edge of the cover plate and the surrounding material. In the images "IMG_B" and "IMG_C.jpg", you can see the small cylindrical peg at the opposite end of the door handle that aligns with a hole in the door frame, something I was not familiar with until I removed the handle. Once you remove the screw from the door handle (see IMG_A.jpg), simply back the plastic handle away from the door frame, slightly twisting the handle from left-to-right and back again as you back the plastic handle towards you (away from the door frame).

The replacement parts fit and function perfectly. I hope this helps.

Cheers,

Mark
