Non Tilt Channel Balances

Contractor from Bethleem, PA. 18017
May 16, 2021 4:38 pm

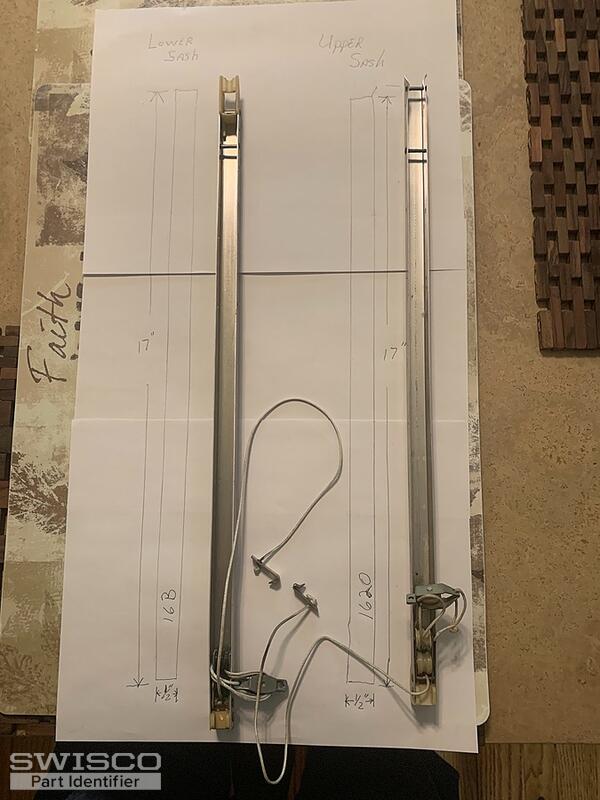

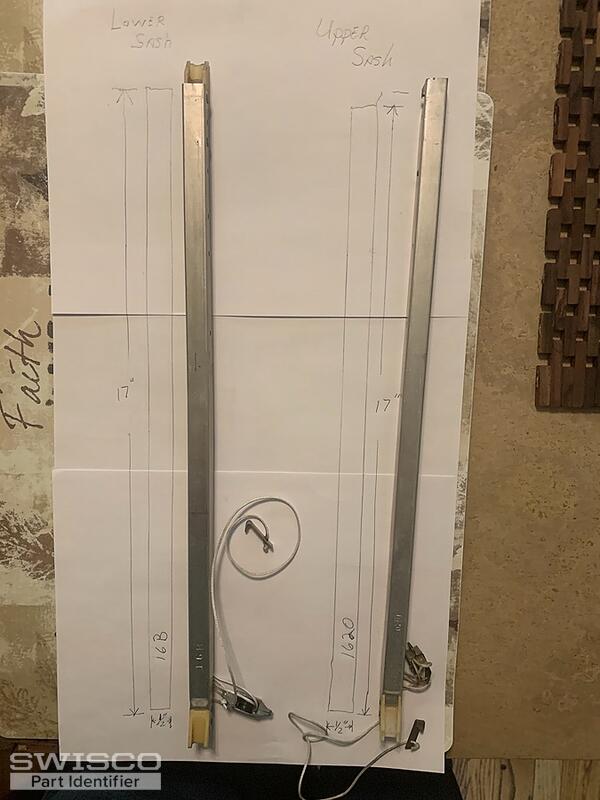

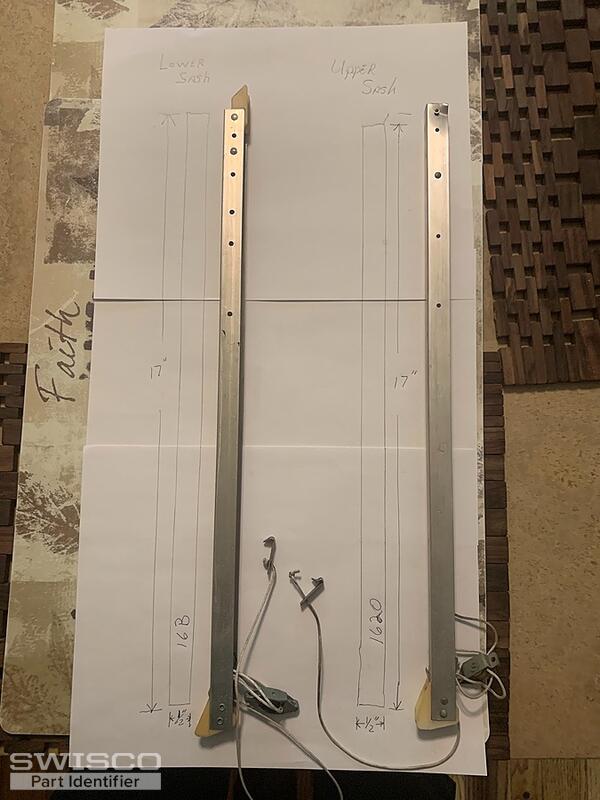

The window Balances were in terrible shape these pictures are the best I could get. Not sure about which series they are, a couple looked correct but don't know if I'm missing something.
The Stamps are clear 16-B for the lower Sash & 1620 for the upper. Nothing left of the upper sash cap at the top, hoping you could match it with the lower one.
I will be needing 4 of each.

Thanks!

Jerry
IMG_1434 IMG_1433 IMG_1432
3 user uploaded images
5 Replies
+ Add a Comment
Emily
Emily from SWISCO
May 18, 2021 10:42 am
SWISCO
EXPERT

Hi, Jerry.

It looks like you have either our S351, with a 15-002 bottom attachment, or S390, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a spring strength option of 1620.

If you have any further questions just let us know.


Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
Contractor from Bethleem, PA. 18017
May 18, 2021 10:26 pm
Thank you Emily, very helpful Indeed. The bottom attachment measures 1 1/8", so I guess it would be the S-390 with the 15-001. Although the bottom attachments are a little different, they both measure the same at the point indicated in your picture at 1 1/8" But what about the top attachment, would they be the same for both upper & lower sash on the S-390?

Thanks again for the help!!

Jerry
Emily
Emily from SWISCO
May 19, 2021 9:23 am
SWISCO
EXPERT

No problem, Jerry!

I'd say there's about a 90% chance that your upper and lower sash have the same top attachment but there are always exceptions. If you want to be ultra sure, you can always remove a balance from an identical window to confirm.

Contractor from Bethleem, PA. 18017
May 19, 2021 9:56 pm
Thanks again Emily,
I had already thought of that but there were no other windows of this type in the house. I am going with the S-390 W/ 15-001 bottom.

Blessings To You!!

Jerry
Emily
Emily from SWISCO
May 20, 2021 8:42 am
SWISCO
EXPERT

It was my pleasure to help, Jerry! Thank you so much for your business. If you have any hardware questions in the future just let us know!
