Non-Tilt Window Balance 1/2" x 27" (metal only measurement)

A quick learner from New Mexico, USA says:
September 26, 2022

Hello,

I recently ordered some sash guides 18-171 Stepped Sash Guide, Alpine. They fit my current balances and matched my old ones perfectly. Unfortunately, they didn't fix the problem of the balances shooting up out of place. We have a manufactured home built in 2005. The balances look ok, but they may just be worn out. I would like to order a few to try. Will you please help me choose the correct balance to order?

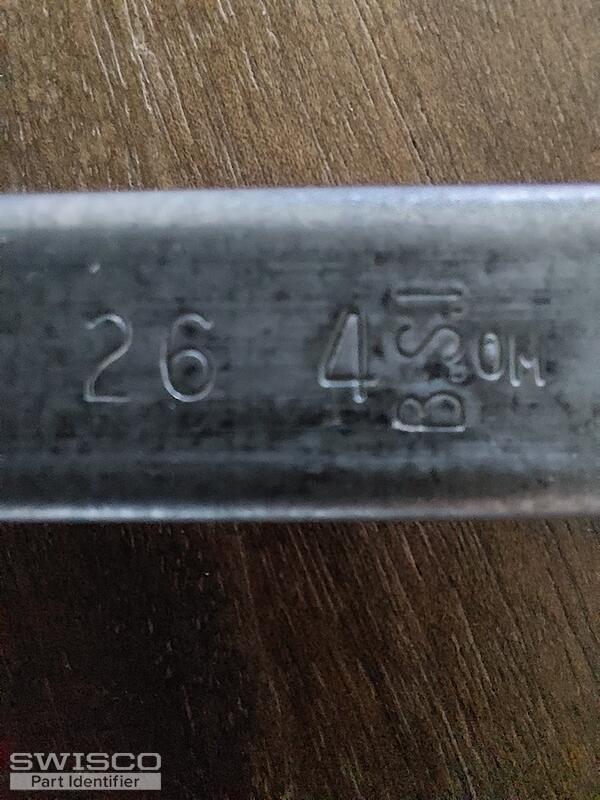

The markings on the balance are 26 4

Thanks!

Frances

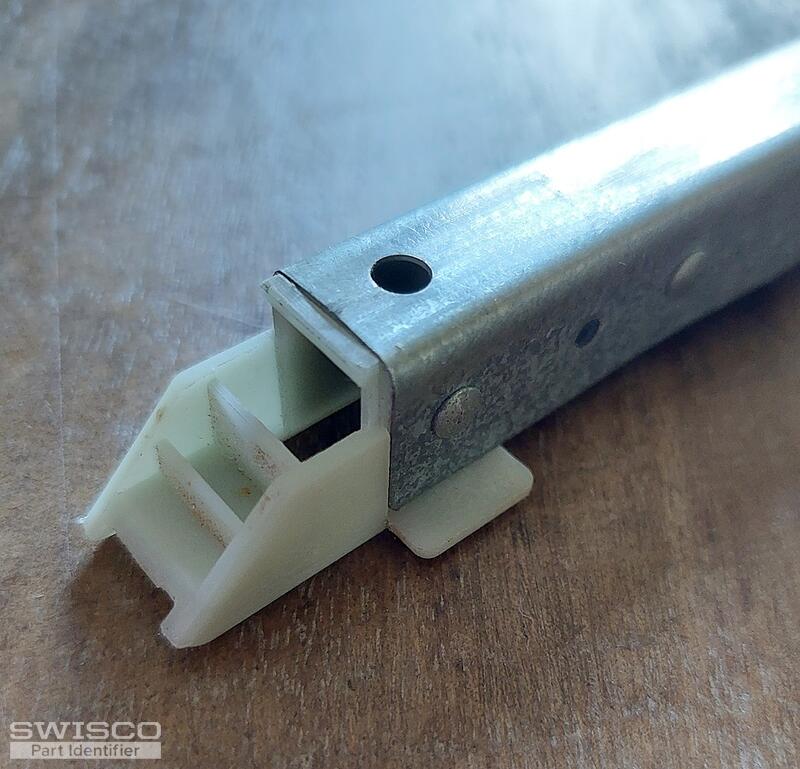

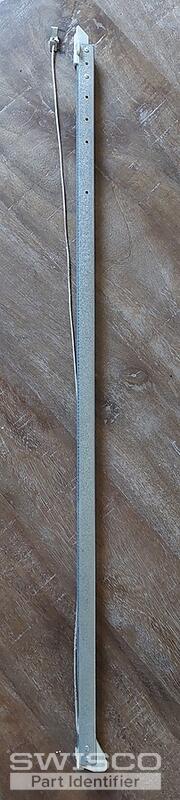

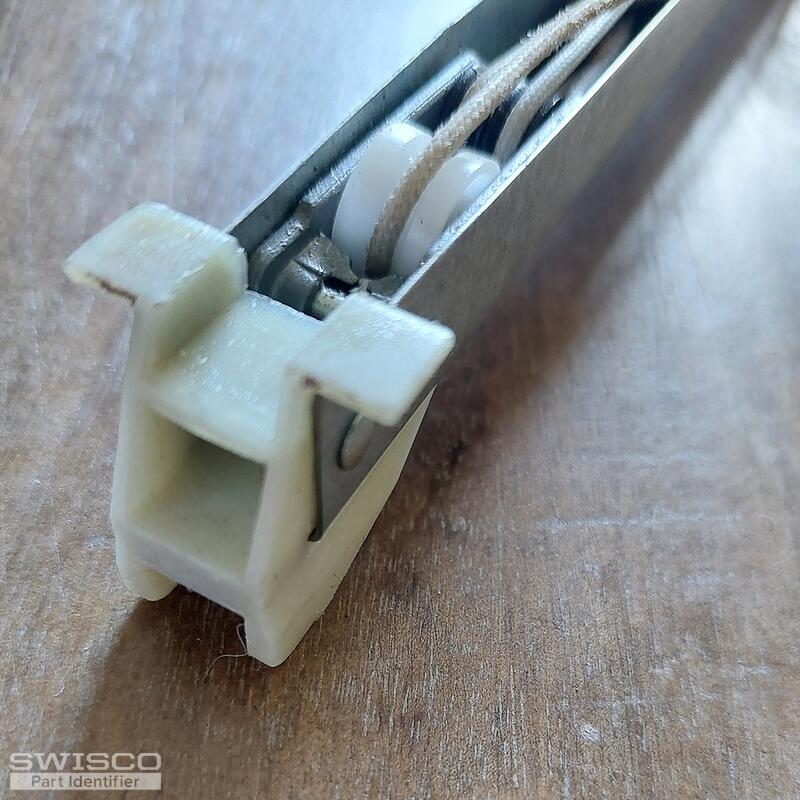

Thumbnail of the uploaded file named 20220926_095156.jpeg
Thumbnail of the uploaded file named 20220926_095212.jpeg
Thumbnail of the uploaded file named 20220926_095231.jpeg
Thumbnail of the uploaded file named 20220926_102030.jpeg
Profile picture of Emily
Emily from SWISCO responded:
September 29, 2022

Hi, Frances.

Certainly! I recommend our S380-27 or S385-27 channel balance. These look like a great match for your hardware but you'll need to measure as shown below to see which replacement option you'll need. The Series 380 has a 1" deep shoe and the Series 385 has a 1-3/32" deep shoe. You will also need to select the 2640 option, based on your 26 4 stamp.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
Stepped Sash Guide, Alpine
Stepped Sash Guide, Alpine
18-171
$1.35
27" Series 380 Channel Balance
27" Series 380 Channel Balance
S380-27
$10.55
27" Series 385 Channel Balance
27" Series 385 Channel Balance
S385-27
$10.55
