Non Tilt Window counter balance

A handy person from Delaware says:
June 30, 2020
Hello,

I need assistance identifying the correct replacement counter balance. I will nee 10 of them after I have successfully identified them. Please let me know if you need further info. On the side of one of the counter balances is says "30 3 cn caldwell"

Thanks,

Joel
Thumbnail of the uploaded file named 20200630_084040.jpg
Thumbnail of the uploaded file named 20200630_084121.jpg
Thumbnail of the uploaded file named 20200630_084132.jpg
Thumbnail of the uploaded file named 20200630_084154.jpg

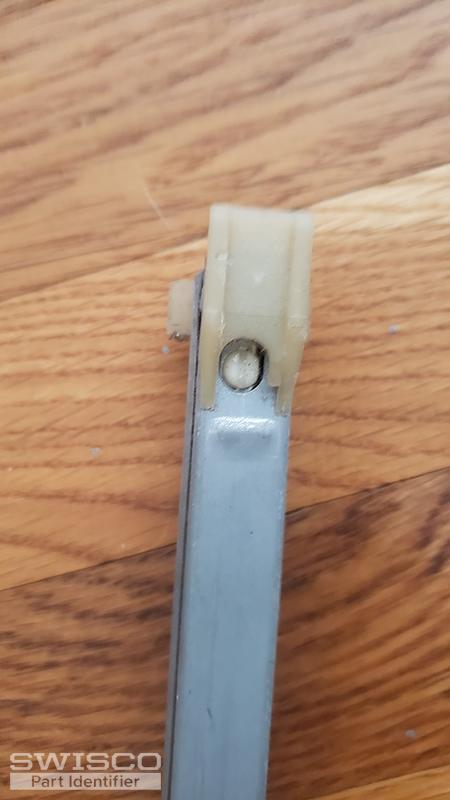

Thumbnail of the uploaded file named 20200630_084212.jpg
Profile picture of Casey
Casey from SWISCO responded:
July 2, 2020

Hi Joel,

With this combination of attachments, you could have either an S380-31 or S385-31 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 3030 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.


Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
31" Series 380 Channel Balance
31" Series 380 Channel Balance
S380-31
$11.30
31" Series 385 Channel Balance
31" Series 385 Channel Balance
S385-31
$11.30
