Non Tilt tubular sash balances

Question

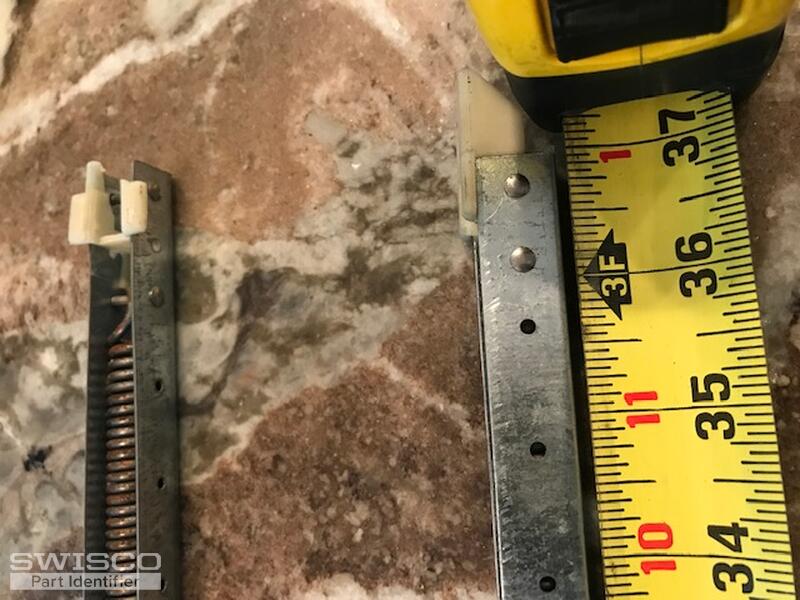

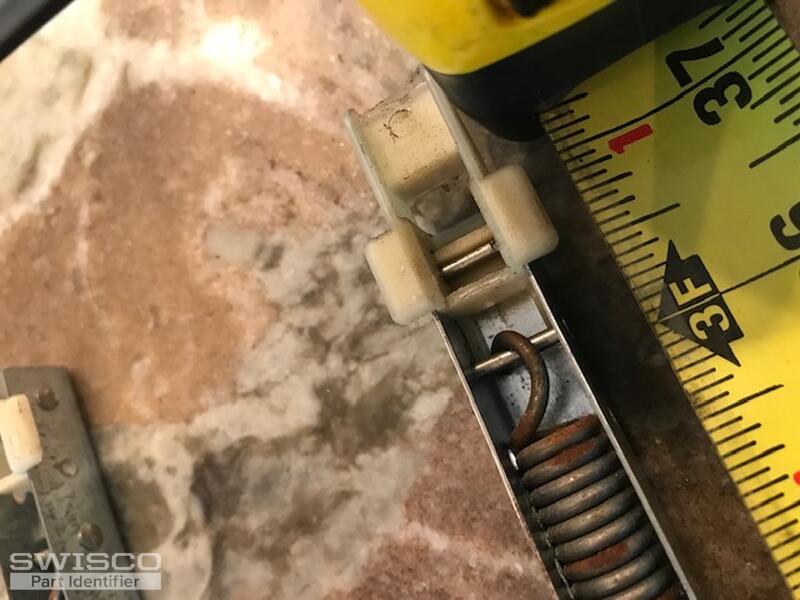

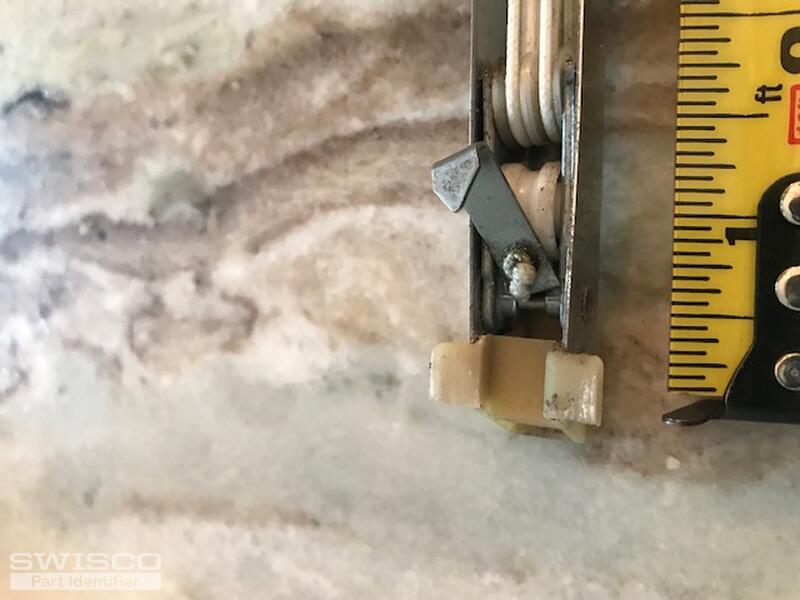

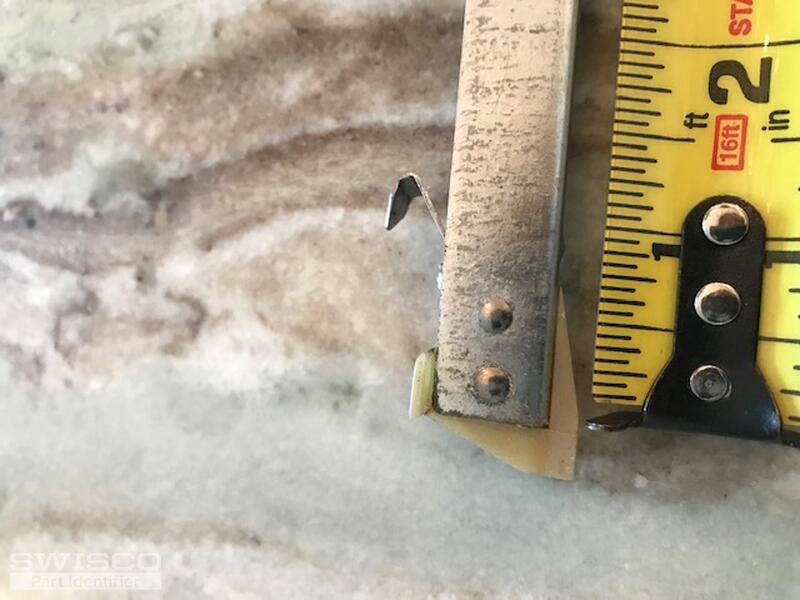

I am in the need of 22 balances marked 3635 at 37" and 6 balances marked as 2950 at 30". I understand the 3635 and 2950 were originally made for ALCAN windows. What would you be able to provide to match these existing balance tubes.
No I did not take the sash out an weigh each of them.
Thank you very much

Jasmine · Accepted Answer

Thanks for posting! Your balances could be either the Series 380 with a 1" shoe or the Series 385 with the 1-3/32" shoe. To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe.

Comparison of the S378, S380 and S385 balance shoes.

Once you've identified the series, you'll be able to use the stamps to choose the option you'll need at checkout. For the 30" balances, you'll need the 2950 stamp for a window weighing 28 to 32lbs.

In regard to the 37" balances with the 3635 stamp, you will need to weigh the window these balances are used in. I am, unfortunately, unable to cross-reference that stamp to determine the weight range your balances should be able to support.

You'll be able to select your stamp from the chart below the product description below the balance you need.
