Non Tilting Double Hung Repair

Quick Learner from Connecticut

Aug 17, 2023 1:49 pm

This house was built in 1988 and the windows are original. There are no mfg markings. The window do not stay open as the cords have come off. I don't want to tear them apart until I am sure I can get repair parts. I did not see anything like these windows on your sight. Can I retrofit any parts you sell ?

3 user uploaded images

6 Replies

Casey from SWISCO

Aug 18, 2023 2:10 pm

Hello,

The fitting at the end of the pulley cord reminds me of the 15-159 Malta pivot shoe at first glance. Take a look and compare the specifications below to an undamaged version. Thank you!

Alternate image for 15-159

Quick Learner

Aug 11, 2024 4:59 pm

Would anyone be able to tell me how you remove the malta windows off the track to get access to replace these. Its really hard to find any information on them. Thanks

Casey from SWISCO

Aug 12, 2024 10:38 am

These balance parts are used in tilt windows, meaning that you would disengage the tilt latches on the top corners of the sash to tilt the top toward you and carefully disengage the bottom pivot bars by rotating the sash. See another customer's thread here, as well as the guides related on this page to assist you.

Quick Learner

Aug 12, 2024 11:02 am

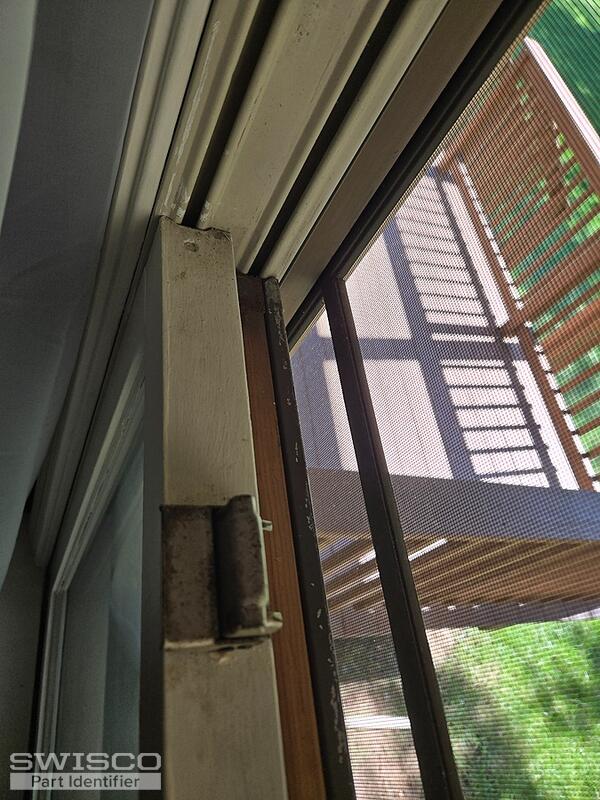

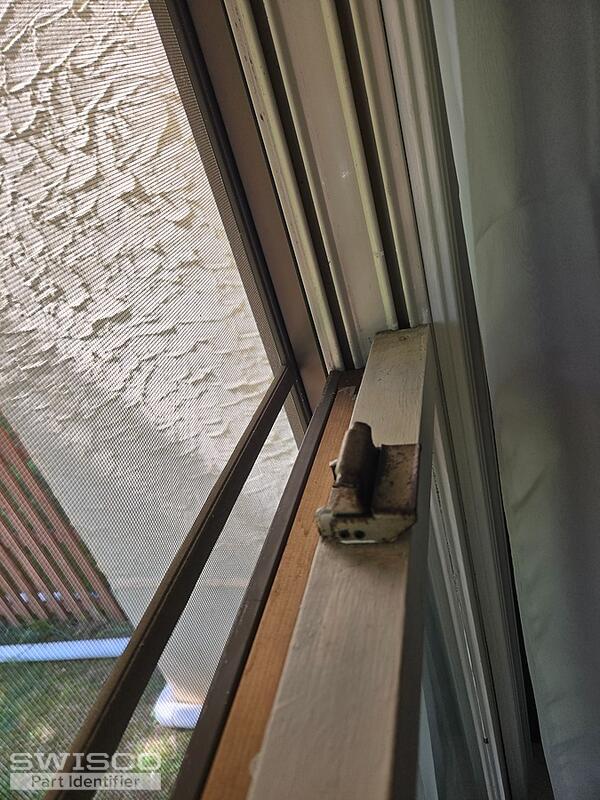

Thanks for the link. Mine don't seem to have the tilt release. What I think I have is a windows that has a center pivot point. I can't confirm this since I can't seem to find any information on it to figure out how to tilt them out. The windows has the model number Malta-5A 8.

2 user uploaded images

Tom from SWISCO

Aug 12, 2024 3:53 pm

We can't be sure without being there to troubleshoot the problem but I agree that you may have a type of tilt window that functions without latches. If so, you may need to pull the top of the sash toward you to disengage the bottom pivots. This would be similar to the way that other tilt windows function but without the need for tilt latches.
